Shift Lock Control Schematics

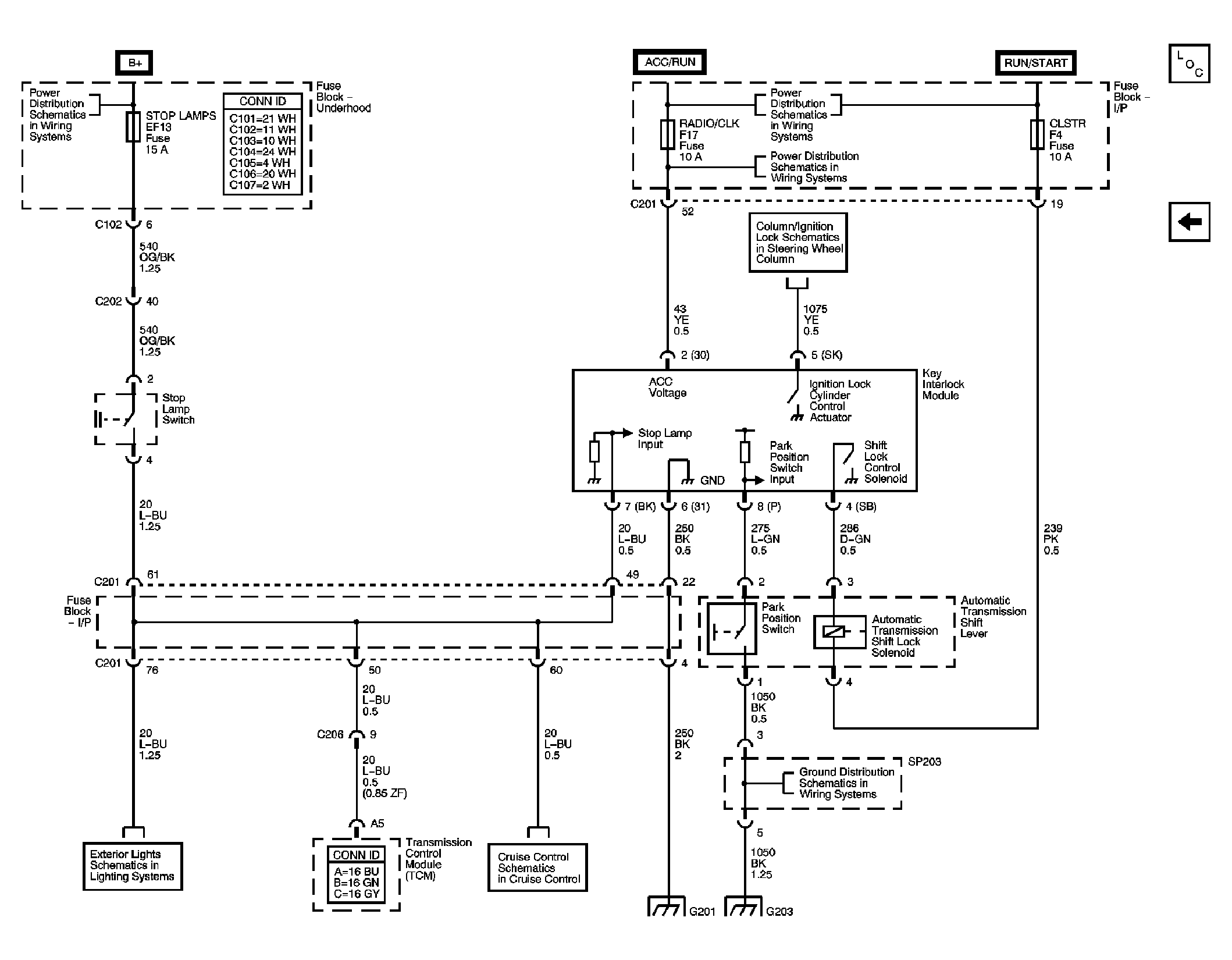

Fig 1: Shift Lock Control Schematic With Ignition Lock Cylinder Control Actuator

Courtesy of GENERAL MOTORS CORP.

Fig 2: Shift Lock Control Schematics Without Ignition Lock Cylinder Control Actuator

Courtesy of GENERAL MOTORS CORP.
