Starting and Charging Schematics

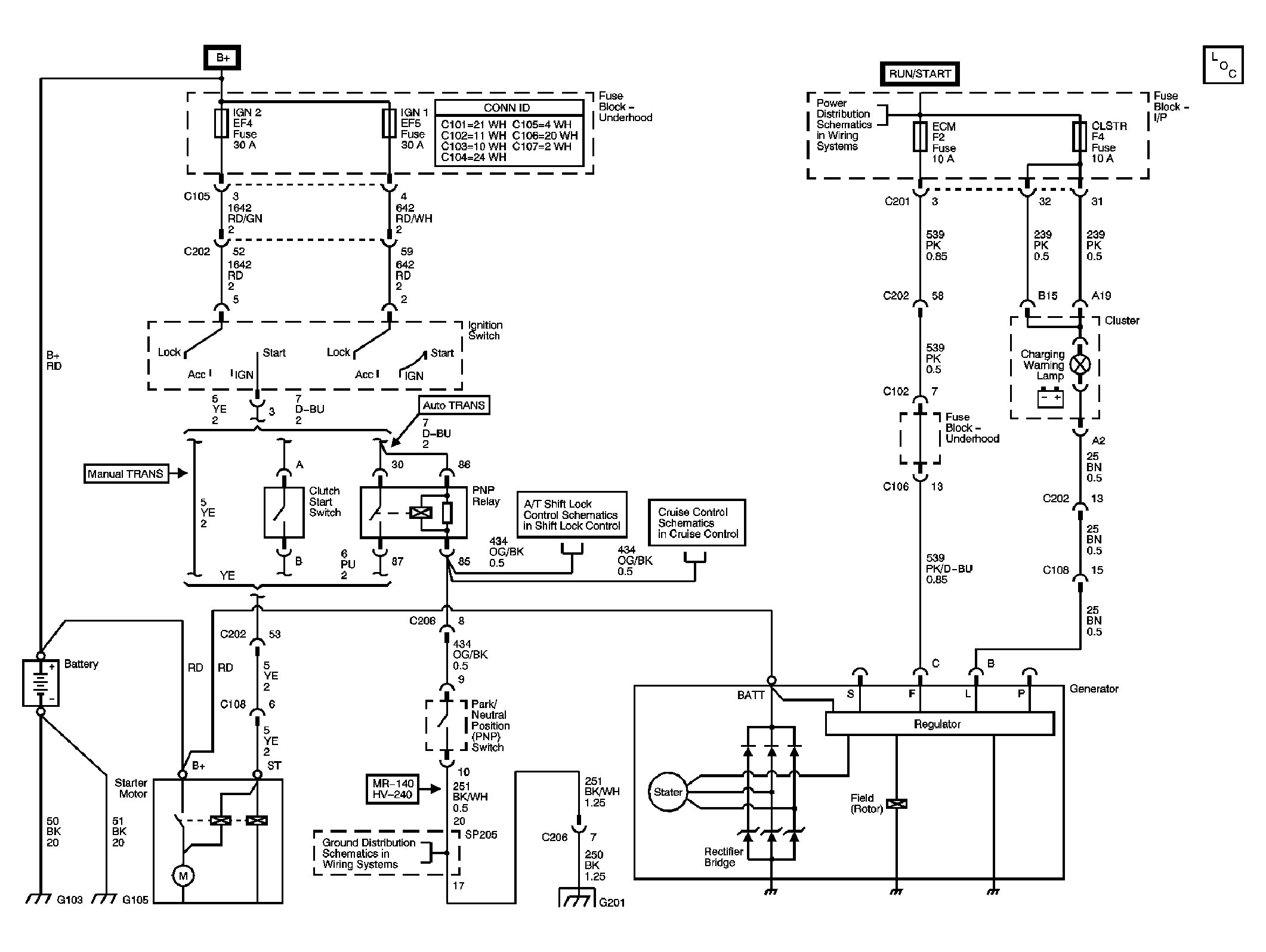

Fig 1: Starting And Charging Schematic
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
