Installation Procedure

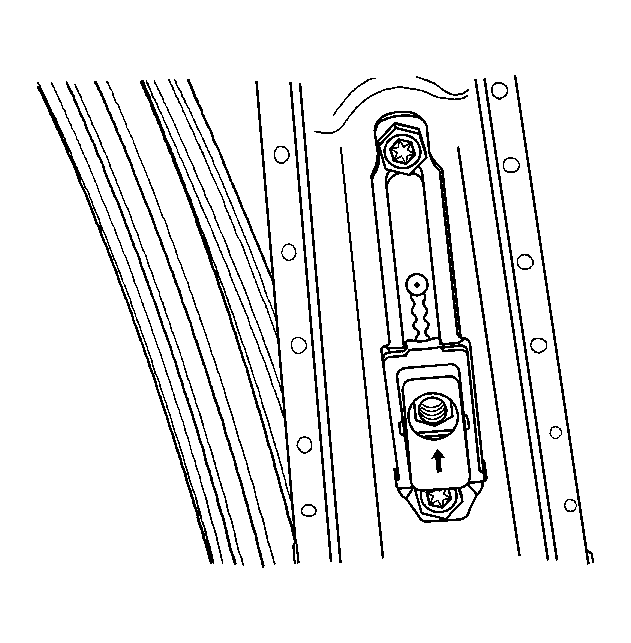

Fig 1: Identifying Seat Belt Height Adjuster

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice .

Install the seat belt height adjuster with the bolts.
Tighten: Tighten the front seat belt height adjuster bolts to 23 N.m (17 lb ft) .
Install the upper center pillar trim panel. Refer to Center Pillar Upper Trim Panel Replacement .
