Steering Assist Component Views

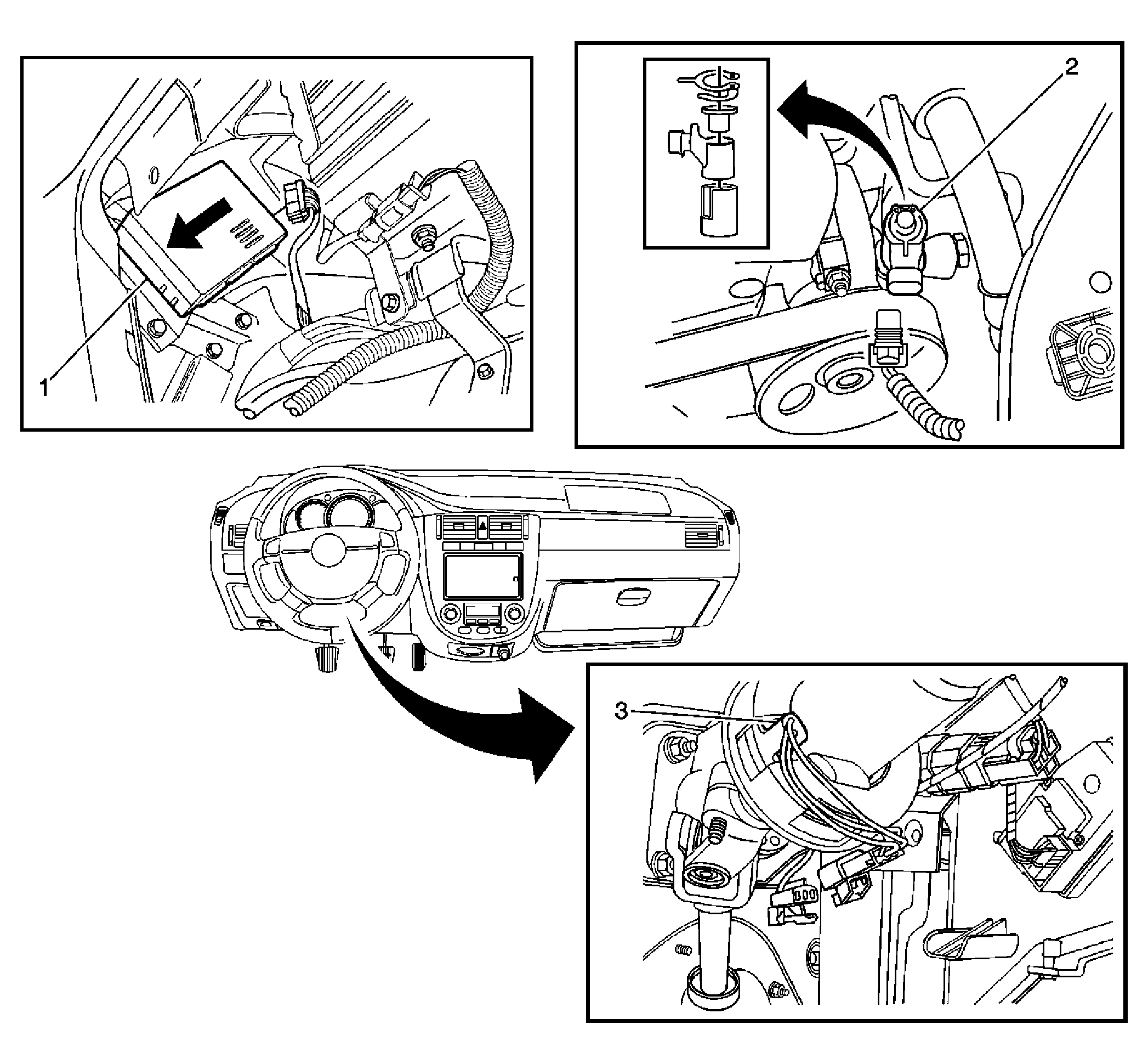

Fig 1: Identifying Control Module, Steering Actuator And Position Sensor

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Power Steering Control Module
2	Variable Effort Steering Actuator
3	Steering Wheel Position Sensor
