Defogger Schematics

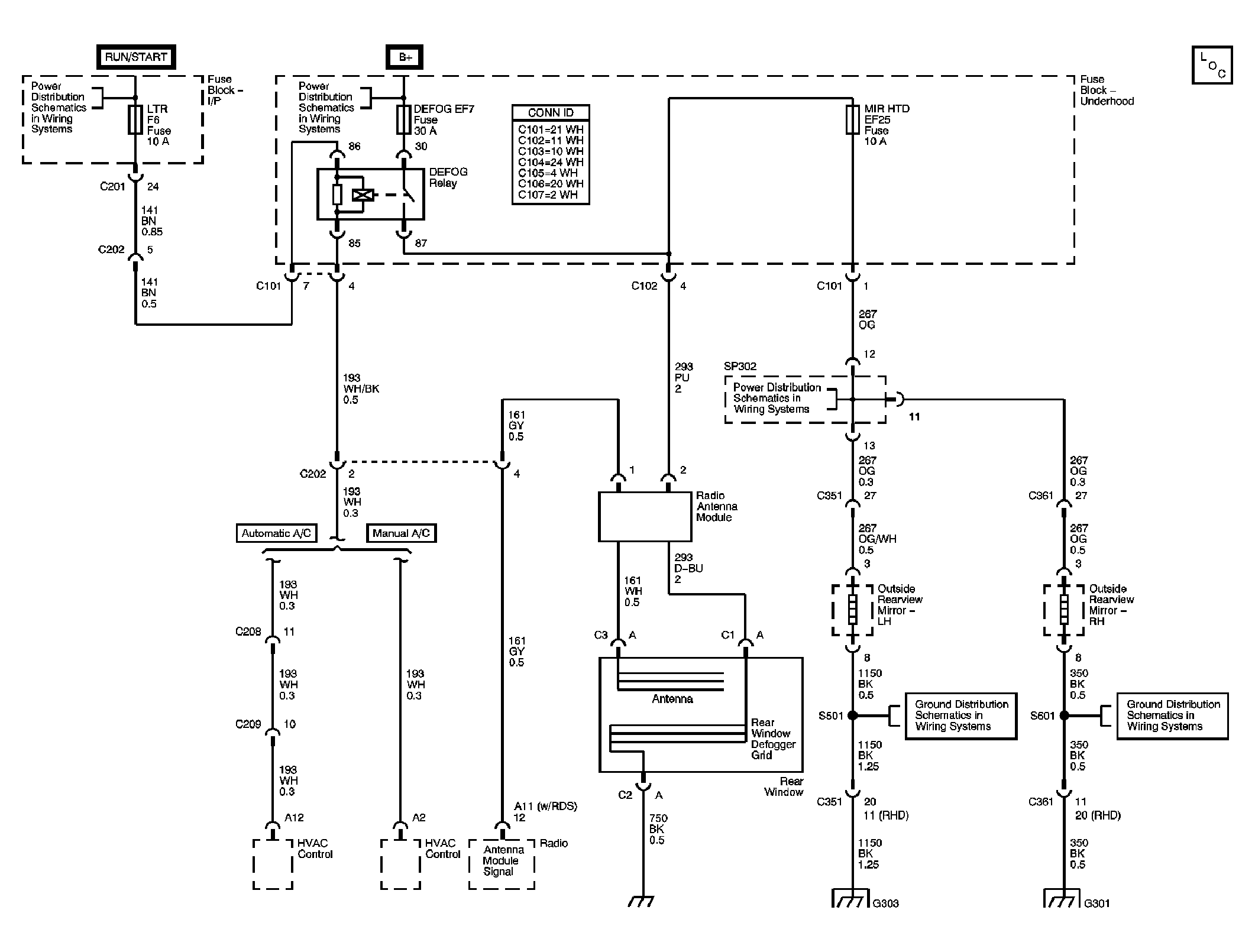

Fig 1: Stationary Windows Schematic (Notchback)
GM1360857Courtesy of GENERAL MOTORS CORP.

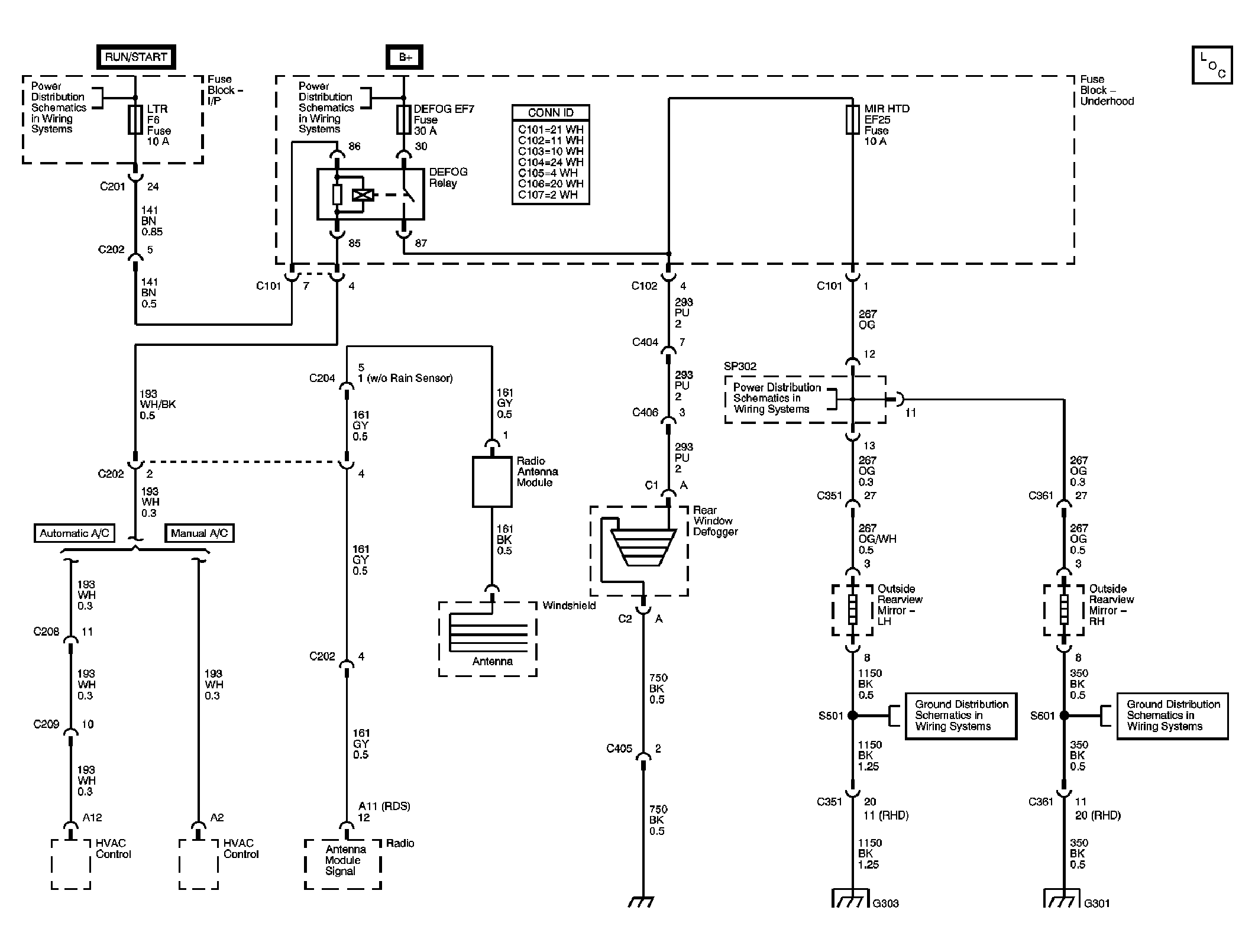

Fig 2: Stationary Windows Schematic (Hatchback)
GM1471592Courtesy of GENERAL MOTORS CORP.
