Installation Procedure

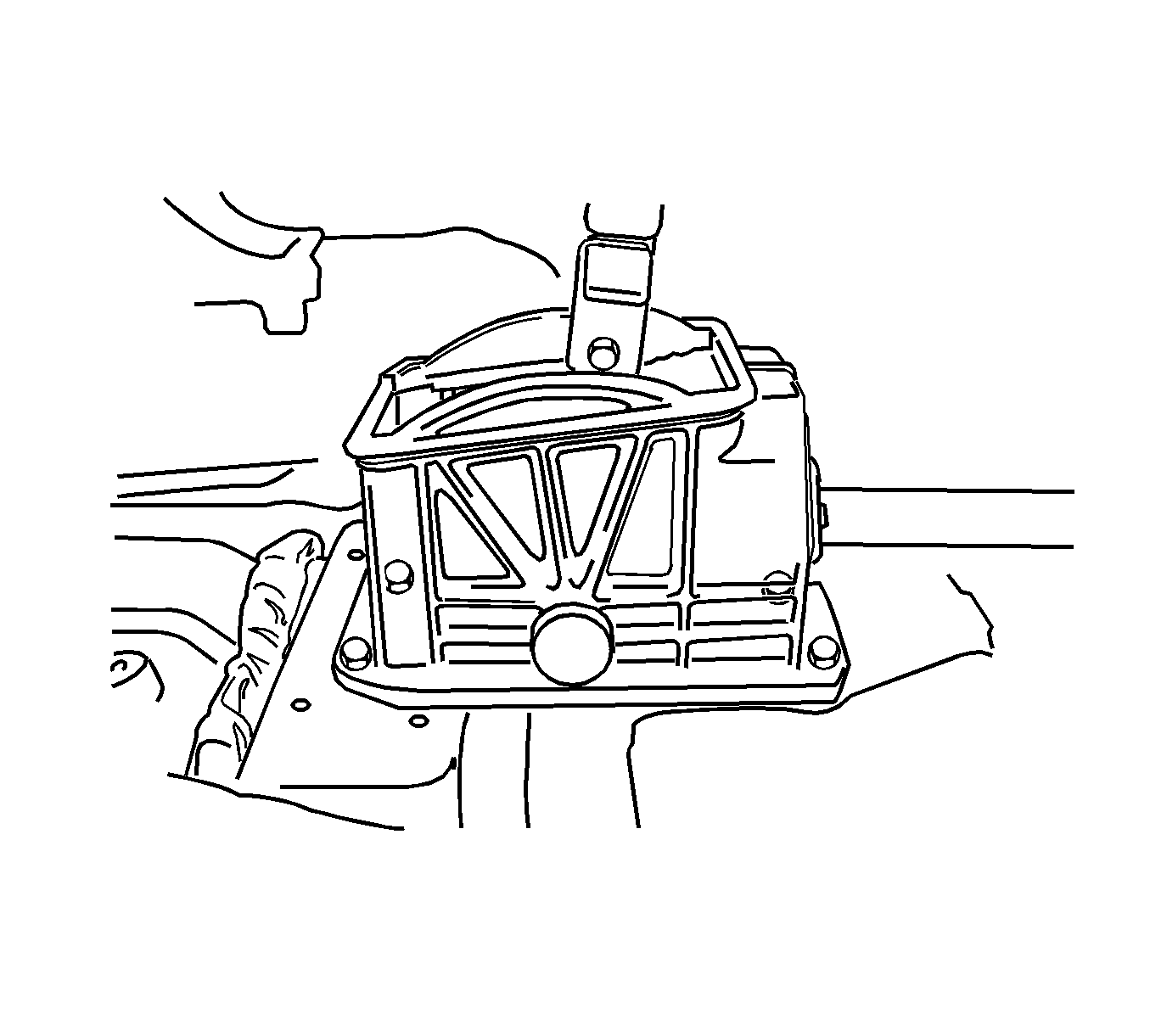

Fig 1: View Of Gearshift Lever Housing

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the gearshift lever housing and the gearshift lever housing bolts.
Tighten: Tighten the gearshift housing bolts to 7 N.m (62 lb in) .
Adjust the shift linkage.
Install the console.
Connect the negative battery cable.
