Installation Procedure

WARNING: This page is about a different car, the 2004 GMC Safari and 2004 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.

Install the step panel cover.
NOTE: Refer to Fastener Notice in Cautions and Notices.
Install the step panel cover screws.
Tighten: Tighten the step panel cover screws to 2 N.m (18 lb in).

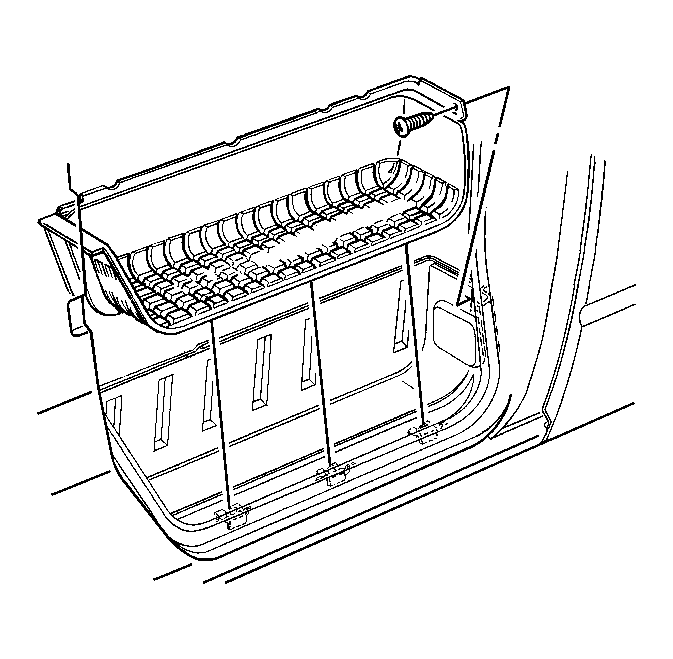

Fig 1: Locating Step Plate Cover Retaining Screws
Courtesy of GENERAL MOTORS CORP.
