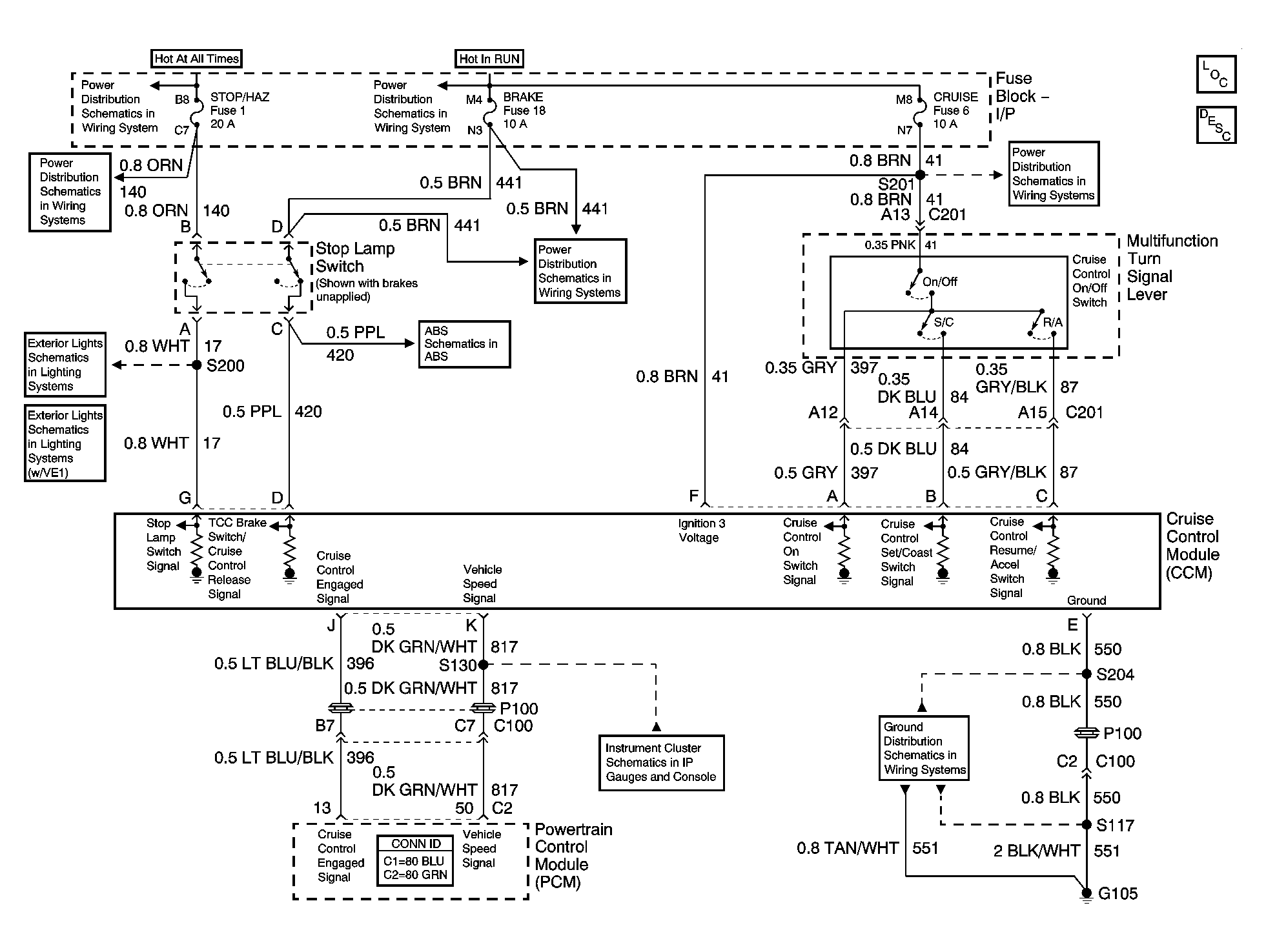

Cruise Control Schematics

WARNING: This page is about a different car, the 2004 GMC Safari and 2004 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
