Body Control System Schematics

WARNING: This page is about a different car, the 2004 GMC Safari and 2004 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.

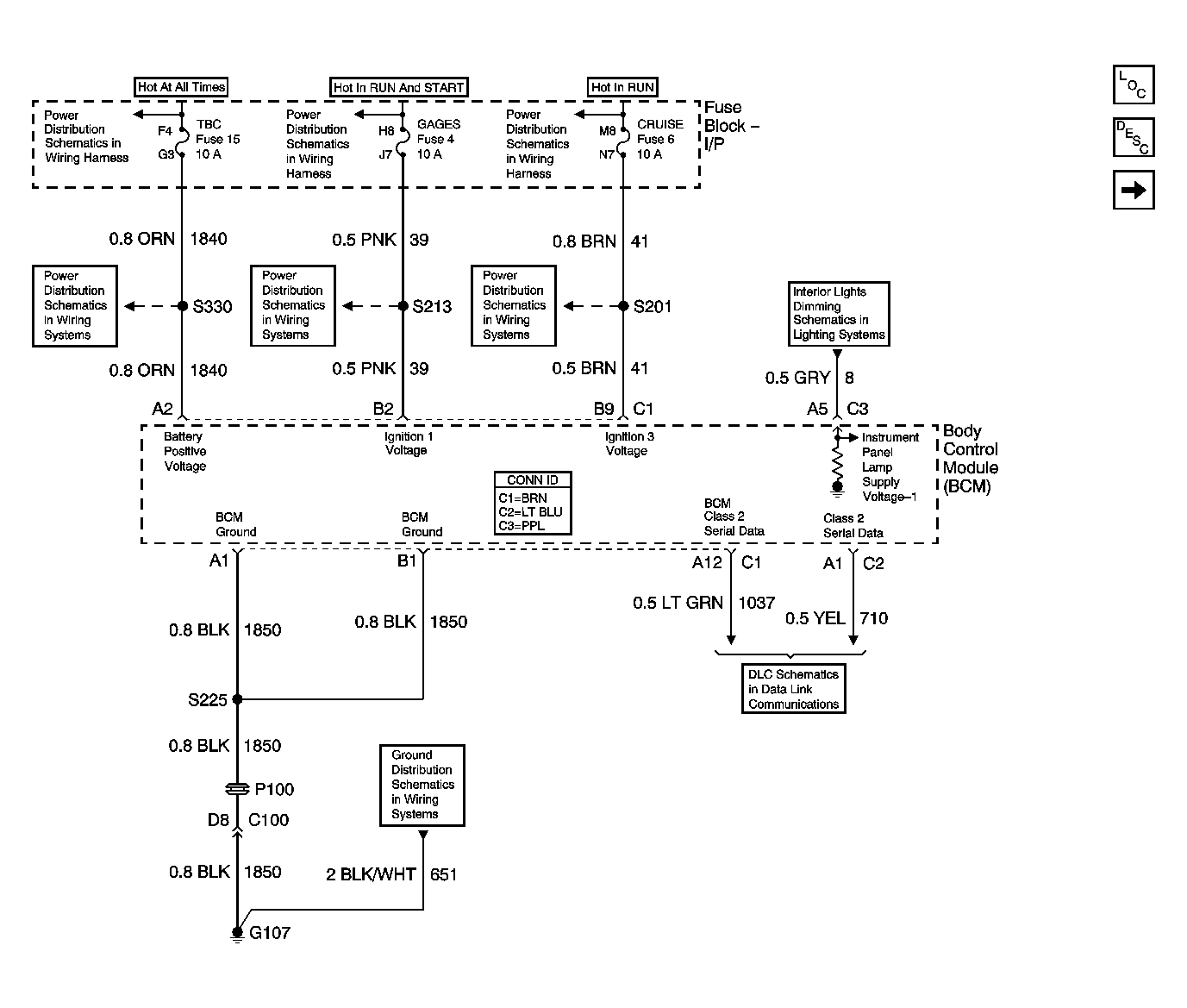

Fig 1: Power, Ground, and DLC Schematic

GM655122

Courtesy of GENERAL MOTORS CORP.

Fig 2: RAP, Door/Locks, Headlights/DRL, Headlights (w/VE1) Schematic

GM655123

Courtesy of GENERAL MOTORS CORP.

Fig 3: Theft Deterrent, A/T Audible Warnings, Brake Warnings, Interior Lights Schematic

GM655124

Courtesy of GENERAL MOTORS CORP.

Fig 4: Horns, Interior/Exterior Lights, RKE, Instrument Cluster Schematic

GM655125

Courtesy of GENERAL MOTORS CORP.

Fig 5: Exterior/Interior Lights, Door/Locks, Body Rear End, Audible Warnings Schematic

GM655126

Courtesy of GENERAL MOTORS CORP.

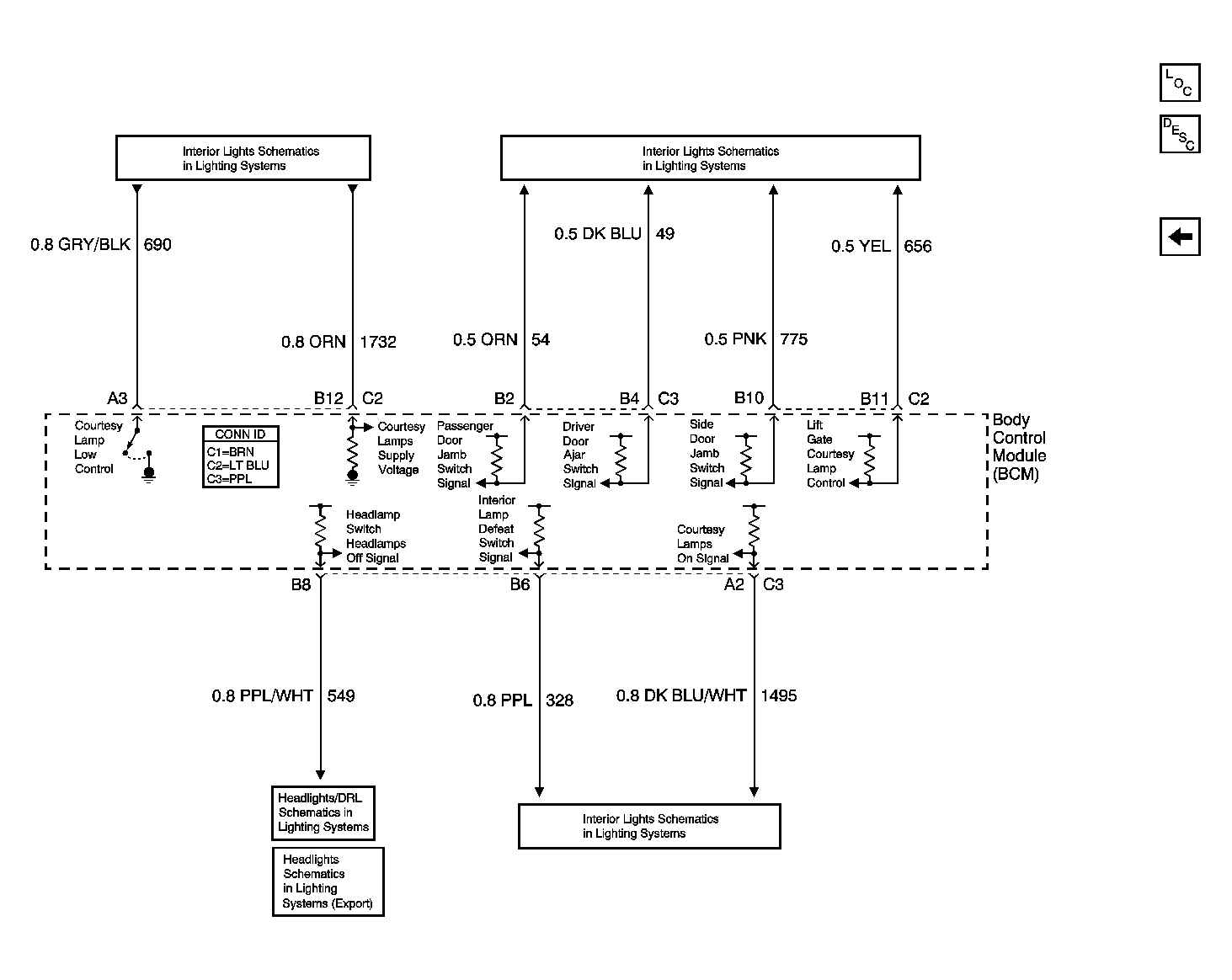

Fig 6: Headlights/DRL, Headlights (Export), and Interior Lights Schematic

GM655127

Courtesy of GENERAL MOTORS CORP.
