Automatic Transmission Shift Lock Control Schematics

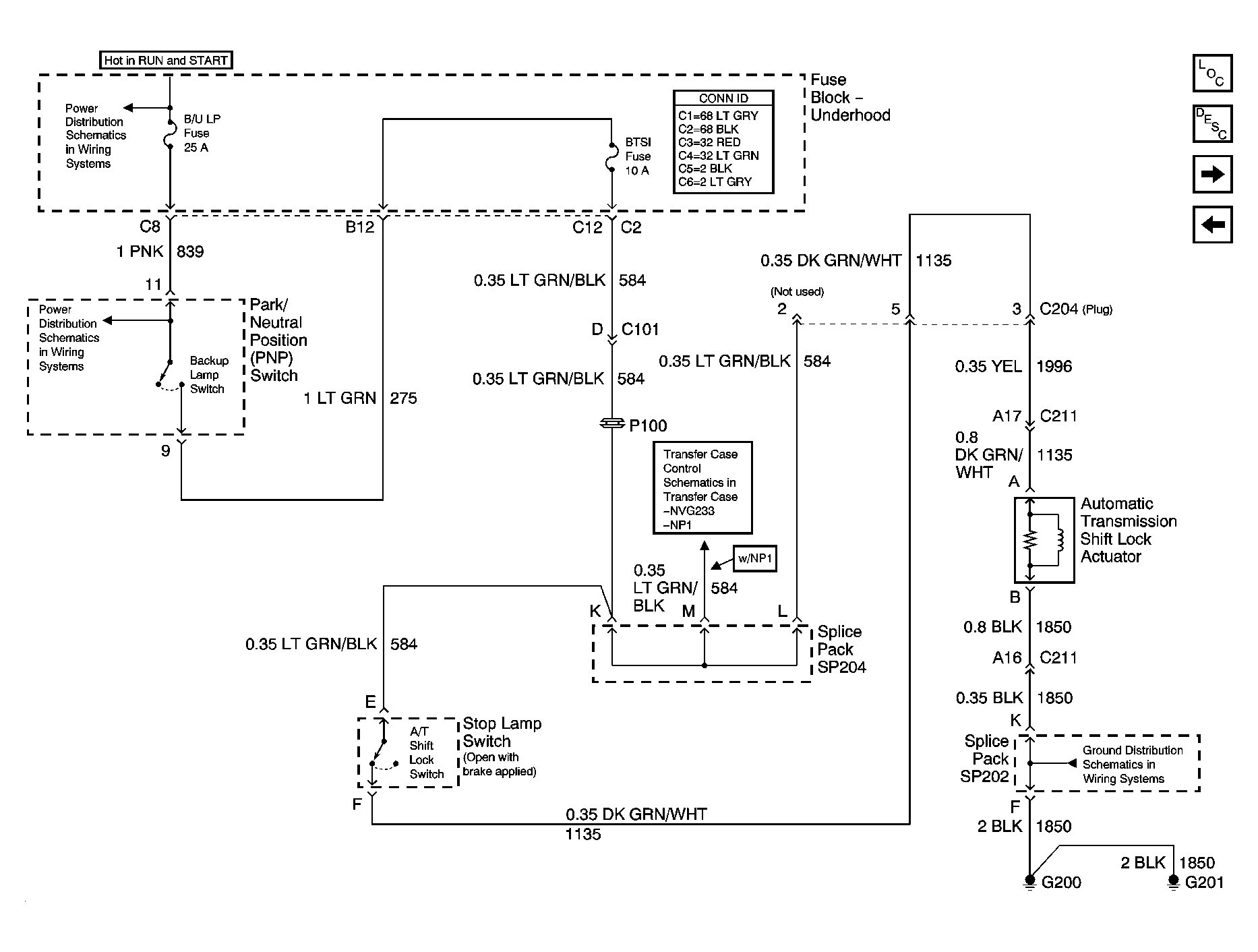

Fig 1: Pickup w/Column Shift

Courtesy of GENERAL MOTORS CORP.

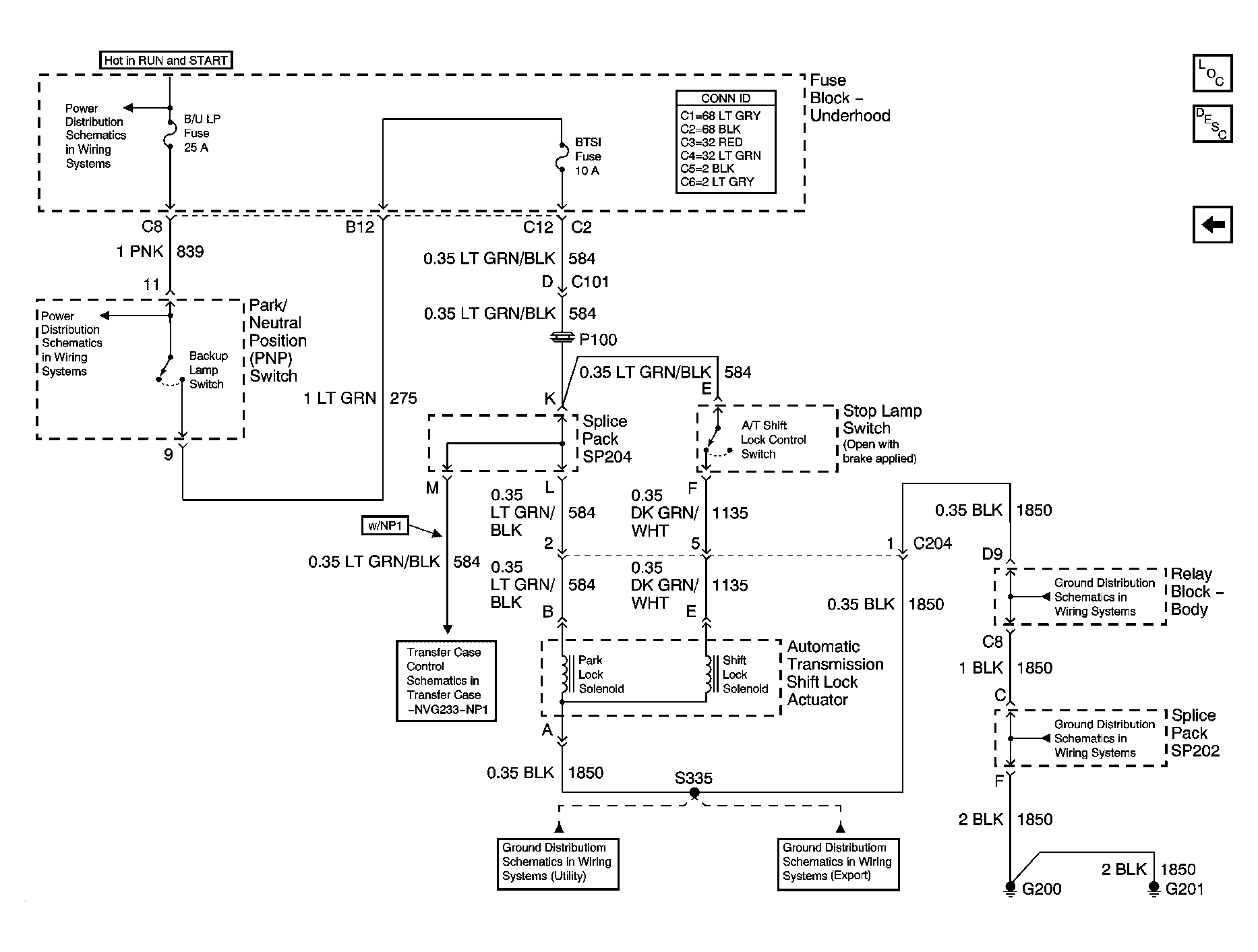

Fig 2: Crew Cab and Utility w/Column Shift

Courtesy of GENERAL MOTORS CORP.

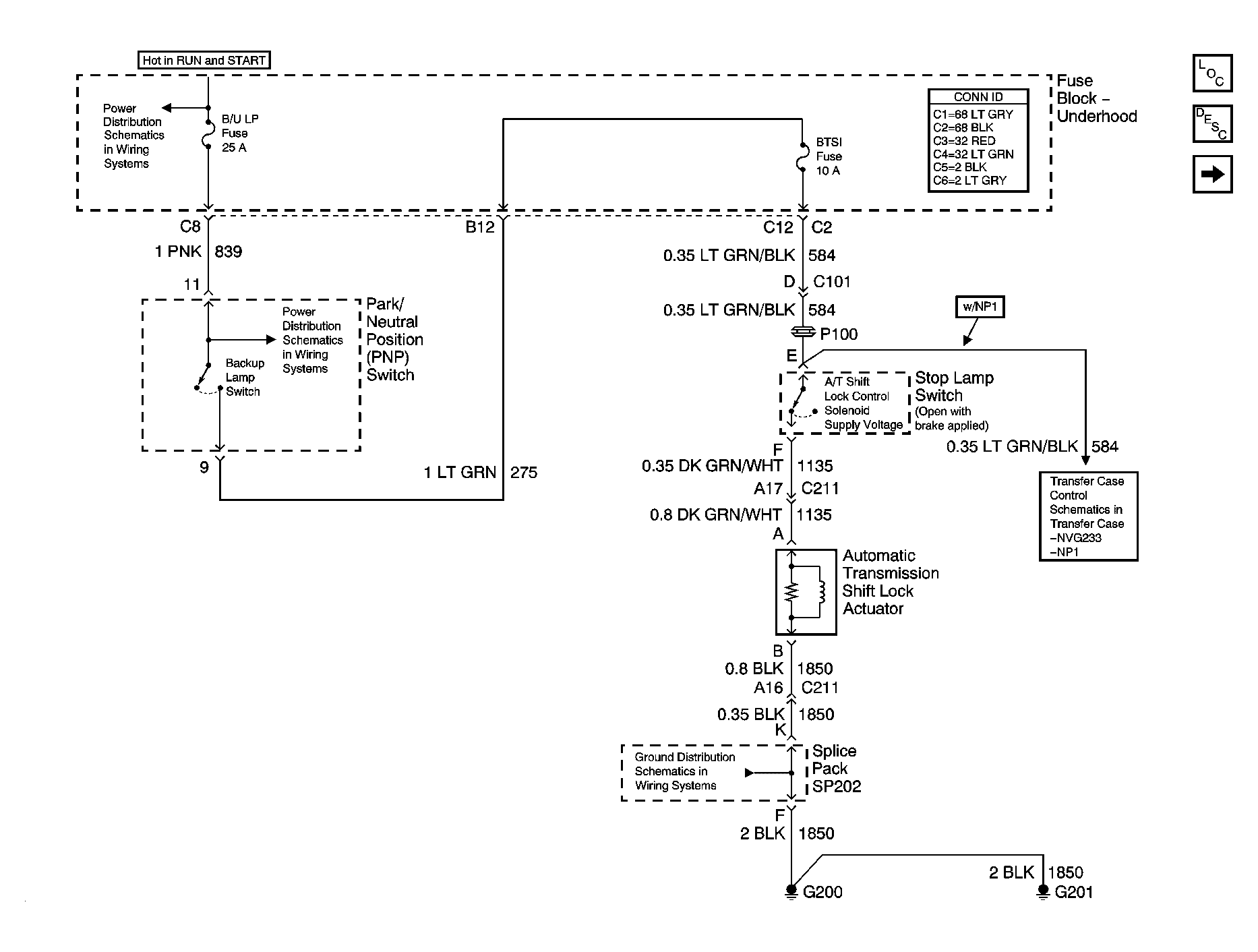

Fig 3: Utility w/Floor Shift

Courtesy of GENERAL MOTORS CORP.
