Power Window Schematics

Fig 1: Power Windows Schematic
GM1215618Courtesy of GENERAL MOTORS CORP.

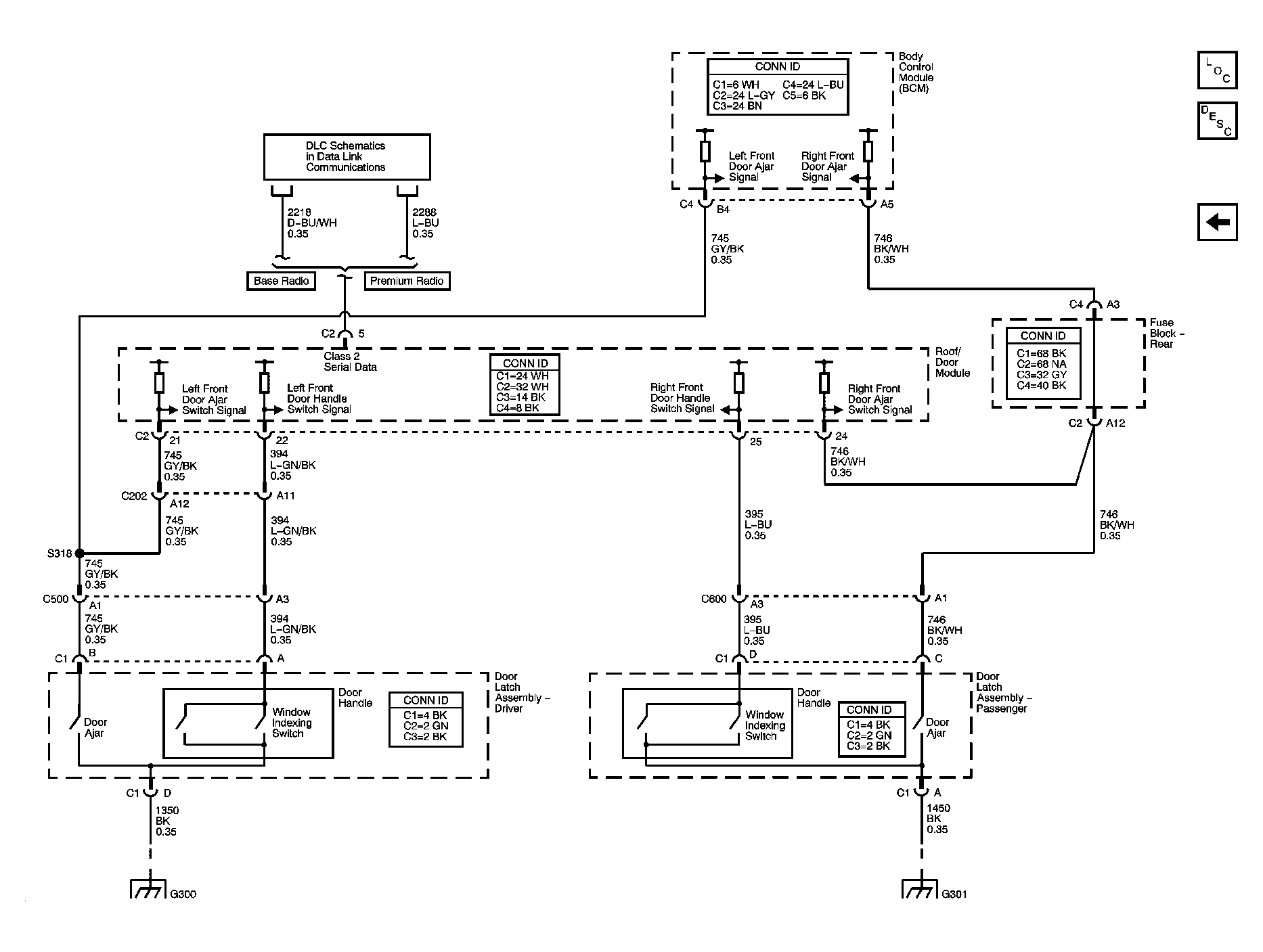

Fig 2: Window Indexing and Ajar Switch Signals Schematic
GM1486034Courtesy of GENERAL MOTORS CORP.
