Installation Procedure

    Fig 1: Identifying Junction Block Bracket Retaining Bolts
    GM1350422Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  1. Position the junction block bracket and install the bolts (1).

    Tighten:  Tighten the junction block bracket bolts to 6 N.m (53 lb in).

  2. Align the wiring harnesses and install the fuse relay center.

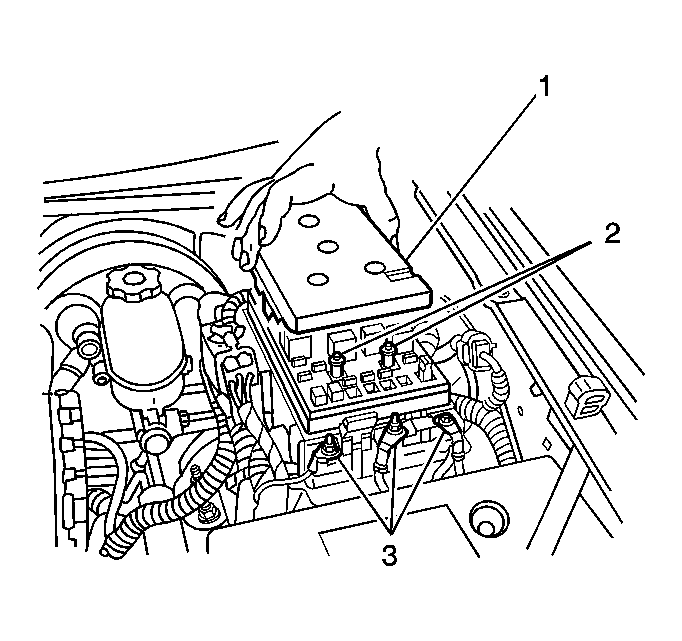

    3. Fig 2: Identifying Fuse Relay Cover & Harness End Bolts
    GM882142Courtesy of GENERAL MOTORS CORP.
  3. Install the fuse relay center bolts (3).

    Tighten:  Tighten the relay center bolts to 6 N.m (53 lb in).

  4. Install the harness end bolts (2).
  5. Install the fuse relay center cover (1) over the relay center bolts. Press downward to engage the tabs.
  6. Install the junction block cover. Press downward to engage the tabs.
