Driver Information System Schematics
Driver Information System Schematics

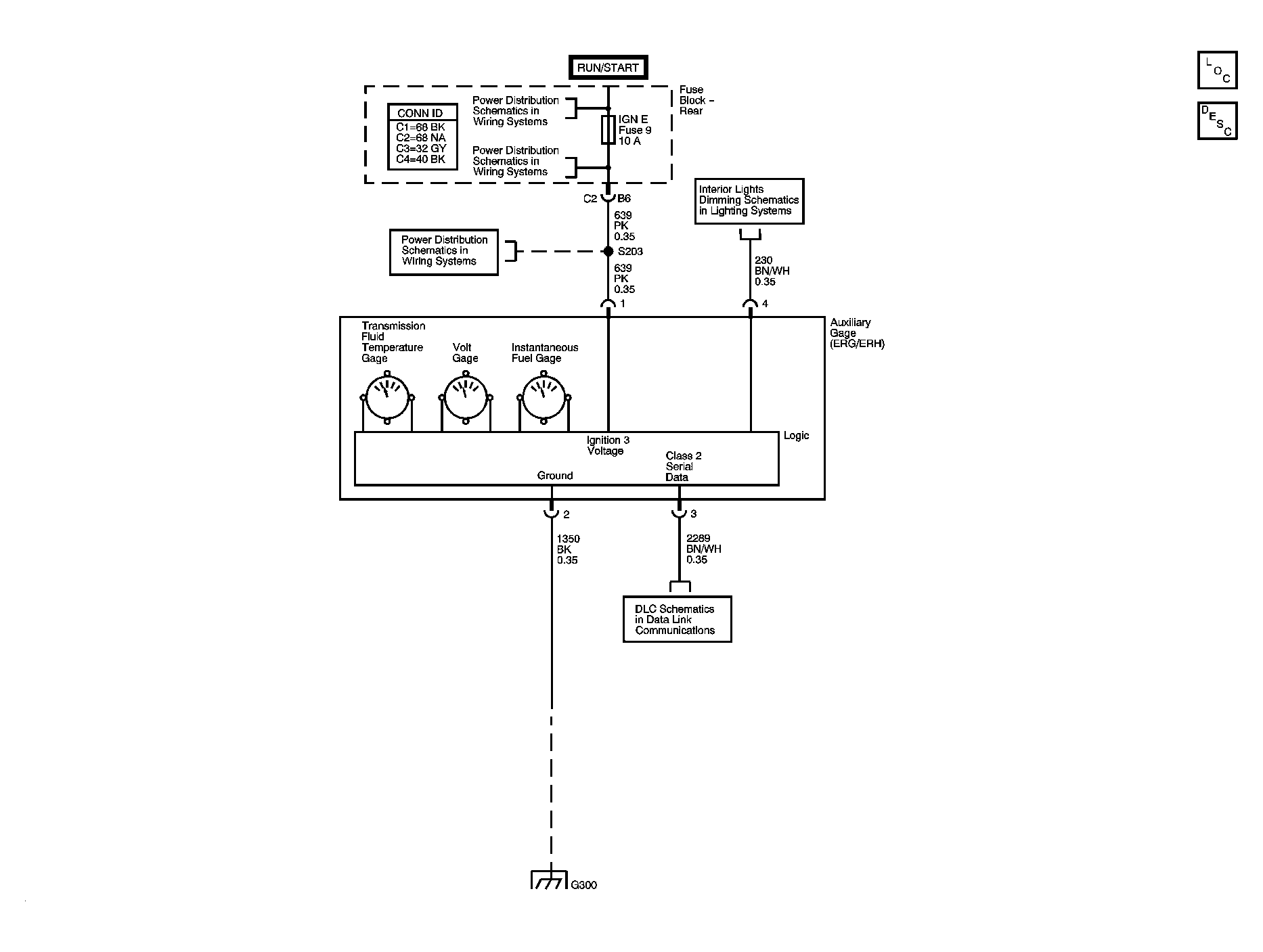

Fig 1: Driver Information System Schematic
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
