Installation Procedure

    Fig 1: Identifying Radiator Support
    GM928978Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: Position the radiator support in the correct relationship to the fan shroud.
  1. Install the radiator support.

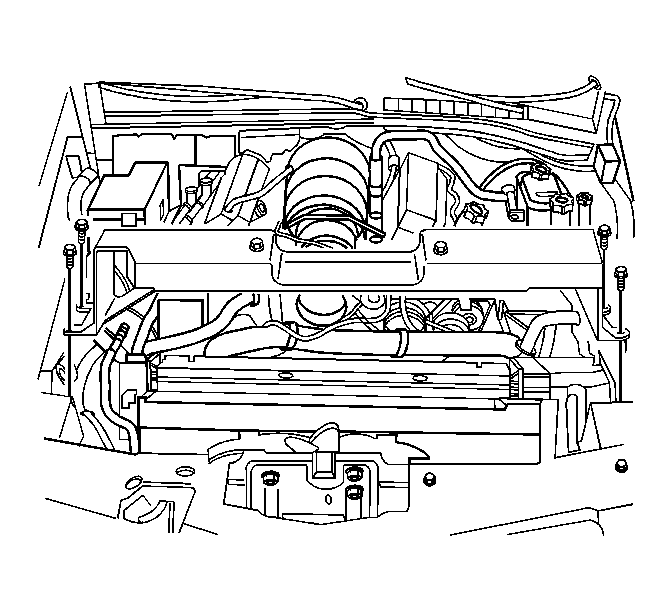

    2. Fig 2: Identifying Radiator Support Bolts
    GM928973Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the radiator support bolts.

    Tighten:  Tighten the bolts to 9 N.m (80 lb in).

  3. Connect the surge tank inlet hose assembly to the radiator support tabs.
    4. Fig 3: Identifying Mass Air Flow Sensor Wire
    GM928982Courtesy of GENERAL MOTORS CORP.
  4. Connect MAF sensor wire (1) to the radiator support retainer clip.
  5. Install the air cleaner assembly. Refer to Air Cleaner Assembly Replacement in Engine Controls - 4.8L, 5.3L, and 6.0L.
