Front Caliper: Reassembly

WARNING: This page is about a different car, the 2003 Chevrolet SSR. However, it is still accessible from the selected car via links, so may be relevant.

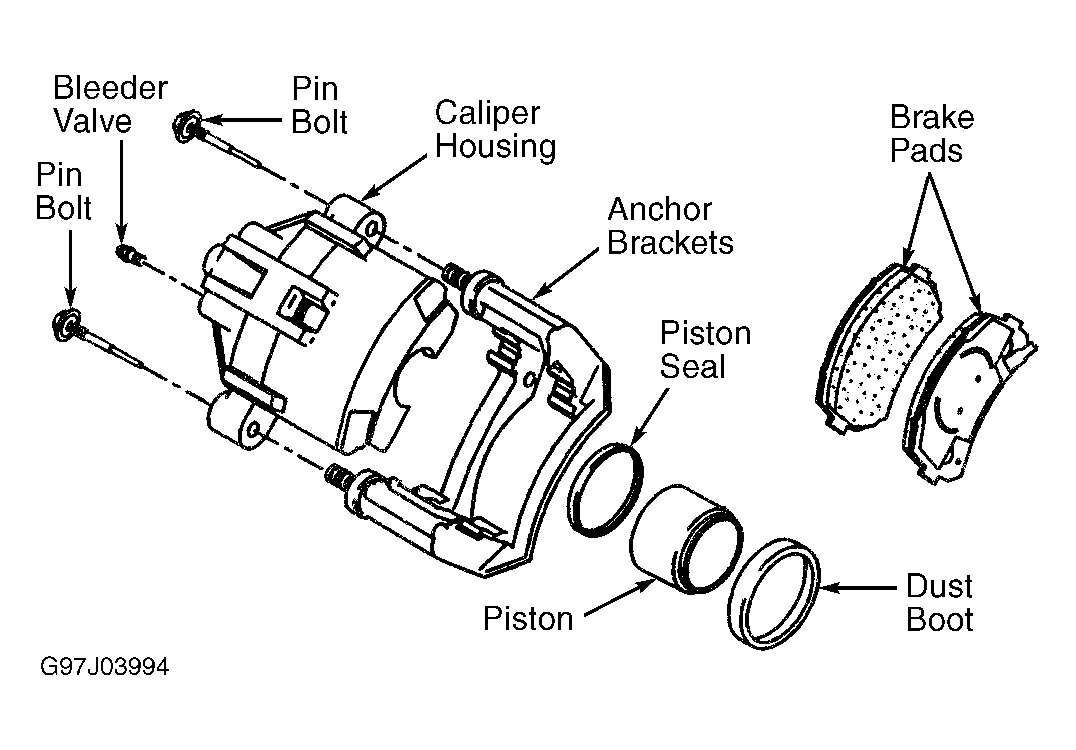

  1. Lubricate the new piston seals, the caliper bores, and the pistons using clean brake fluid. Install the piston seals. Ensure that the piston seals are not twisted in the caliper bore grooves. See Figure .
  2. Install the boot seals on the pistons. Install the pistons in the caliper bores. Install the bleeder valve in the caliper housing. Tighten to specifications. See TORQUE SPECIFICATIONS  .
  3. Install the bleeder valve cap. Install the boot seals into the caliper housing bores using the Driver Handle and the Boot Seal Installer.
