Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

Install the inlet hose to the water outlet.
Reposition the inlet hose clamp to the water outlet.

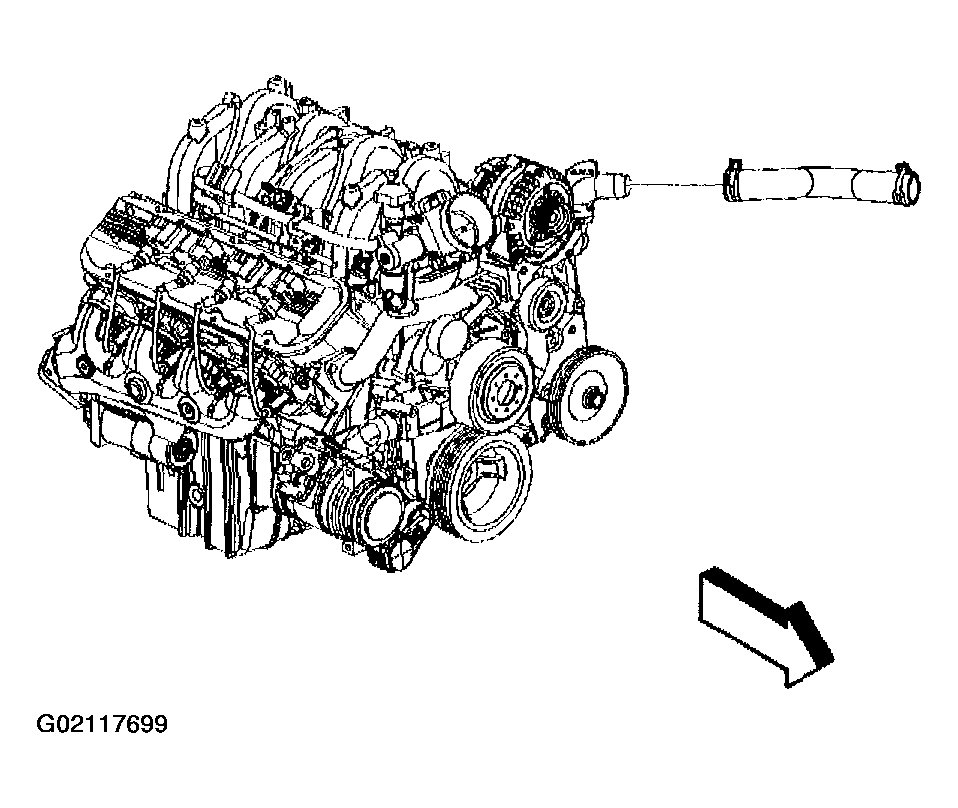

Fig 1: Installing Inlet Hose To Water Outlet
Courtesy of GENERAL MOTORS CORP.
Install the inlet hose to the radiator.
Reposition the inlet hose clamp to the radiator.
Fill the cooling system. Refer to DRAINING AND FILLING COOLING SYSTEM .

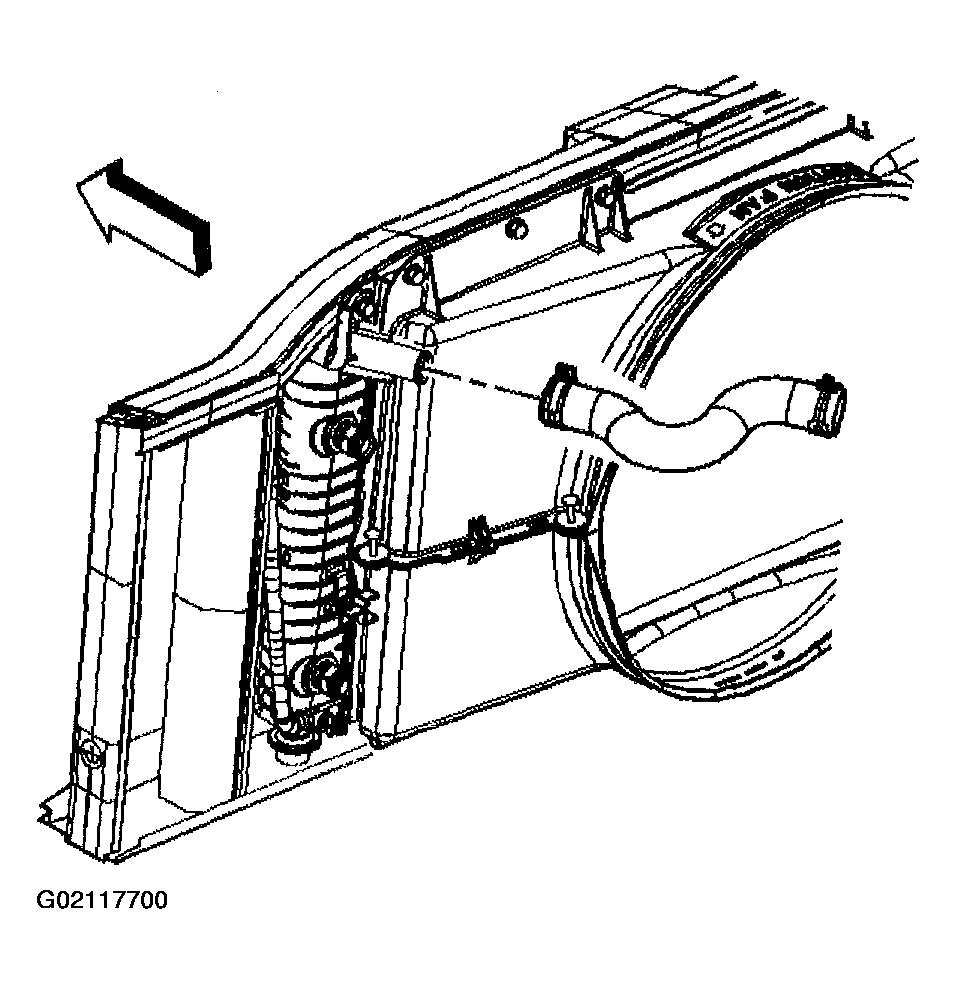

Fig 2: Installing Inlet Hose To Radiator
Courtesy of GENERAL MOTORS CORP.
