Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

Install the outlet hose to the water pump.
Reposition the outlet hose clamp to the water pump.

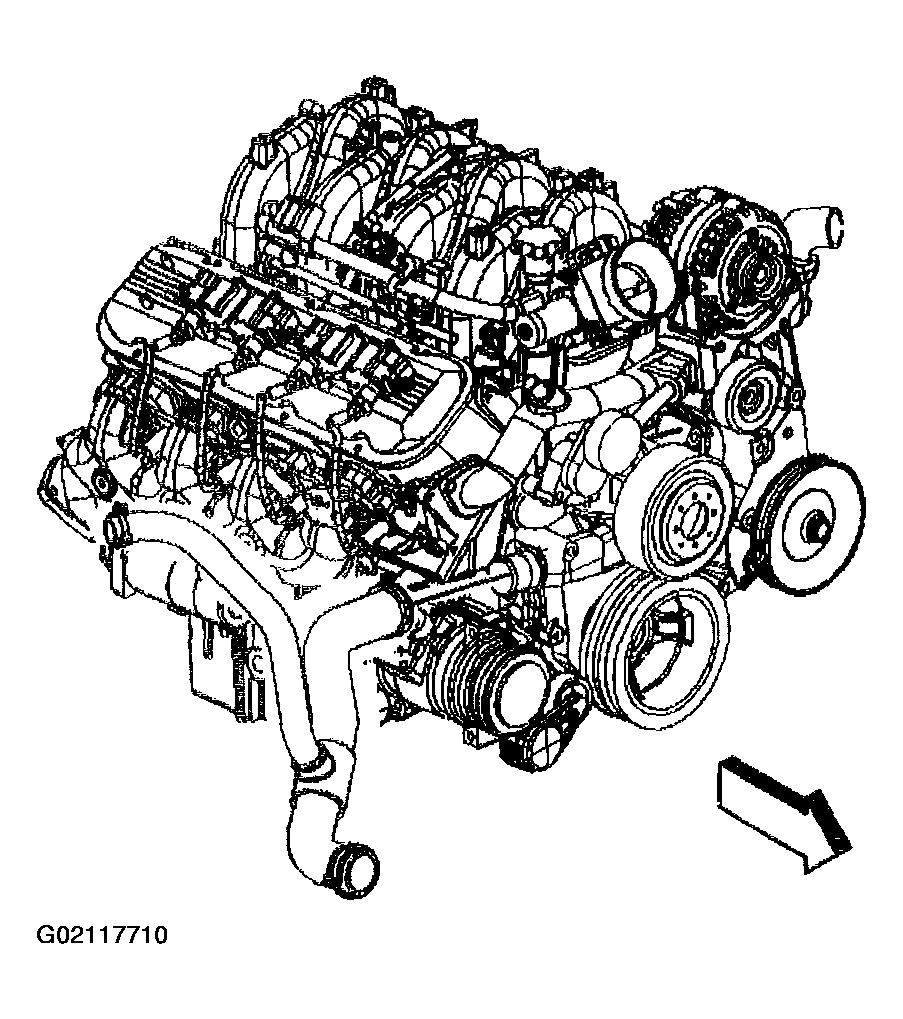

Fig 1: Installing Outlet Hose To Water Pump
Courtesy of GENERAL MOTORS CORP.
Install the surge tank outlet hose (2) to the surge tank.
Reposition the surge tank outlet hose clamp to the surge tank.

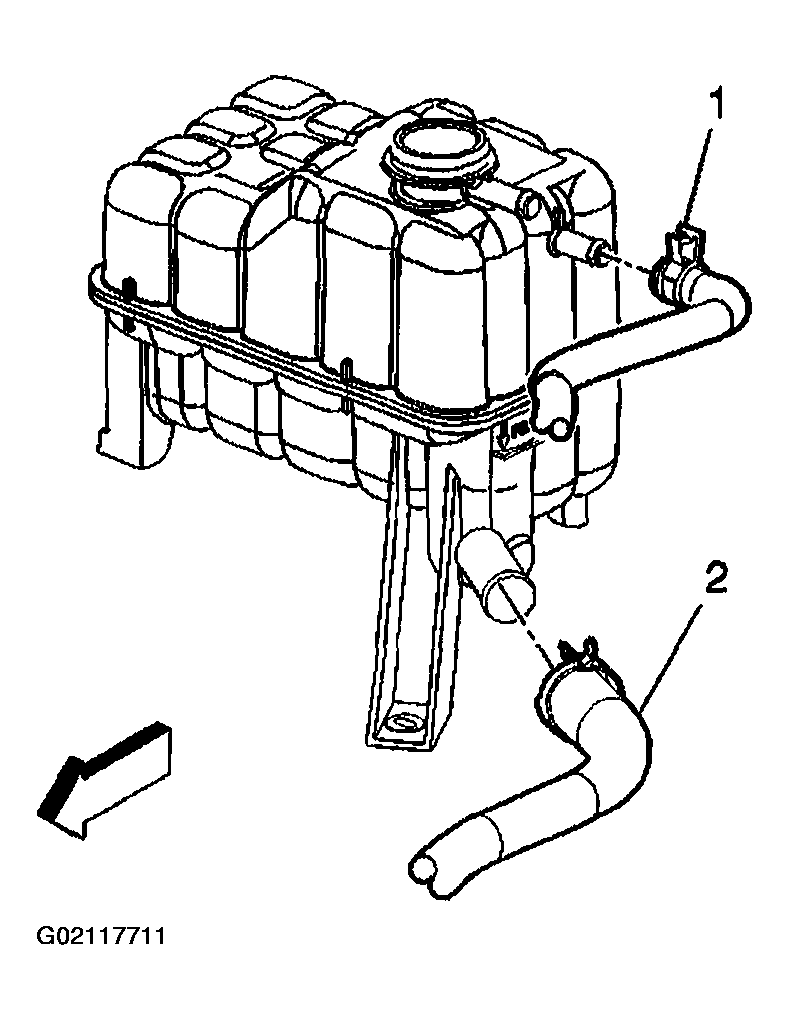

Fig 2: Installing Surge Tank Outlet Hose To Surge Tank
Courtesy of GENERAL MOTORS CORP.
Install the radiator outlet hose to the radiator. Refer to RADIATOR HOSE QUICK CONNECT FITTING .
Fill the cooling system. Refer to DRAINING AND FILLING COOLING SYSTEM .

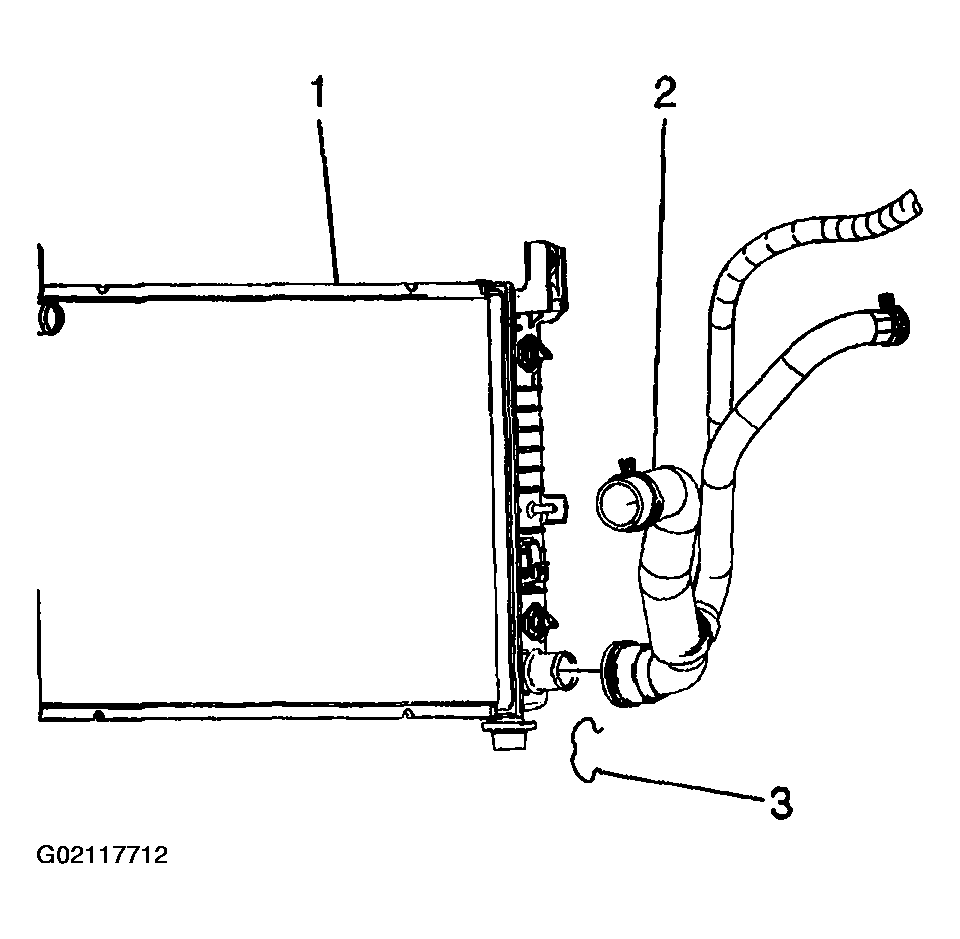

Fig 3: Installing Radiator Outlet Hose To Radiator
Courtesy of GENERAL MOTORS CORP.
