Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

Drain the cooling system. Refer to DRAINING AND FILLING COOLING SYSTEM .
Reposition the inlet hose clamp at the water outlet.
Remove the inlet hose from the water outlet.

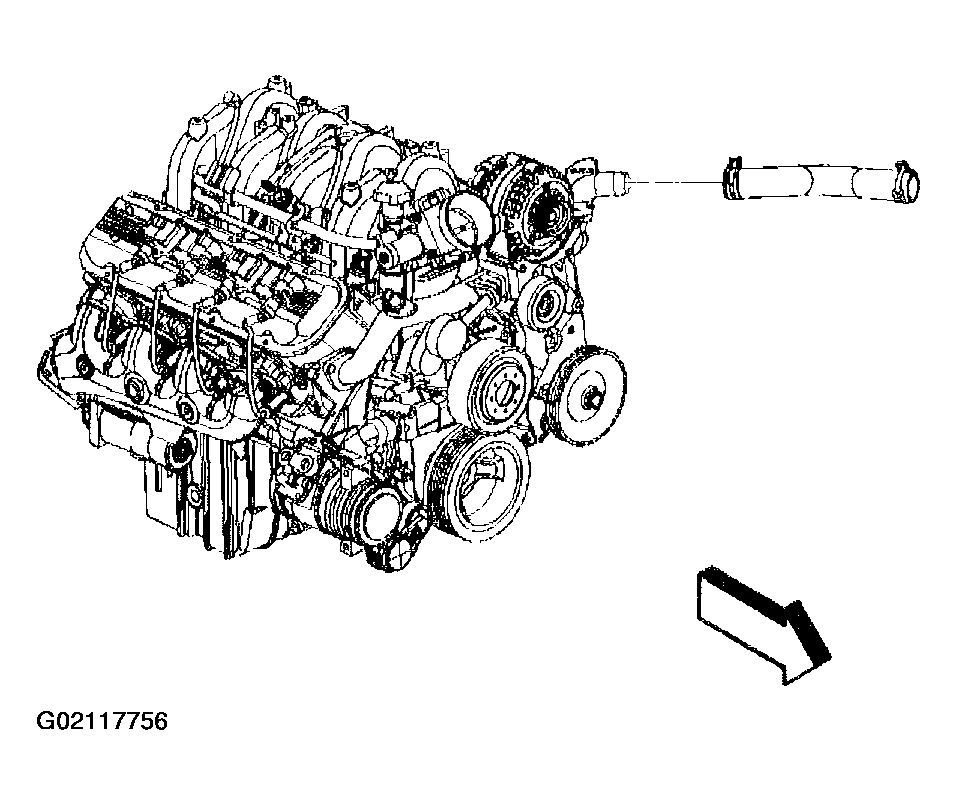

Fig 1: Removing Inlet Hose From Water Outlet
Courtesy of GENERAL MOTORS CORP.
Remove the water outlet bolts (2).
Remove the water outlet (1).
Remove the thermostat (3).

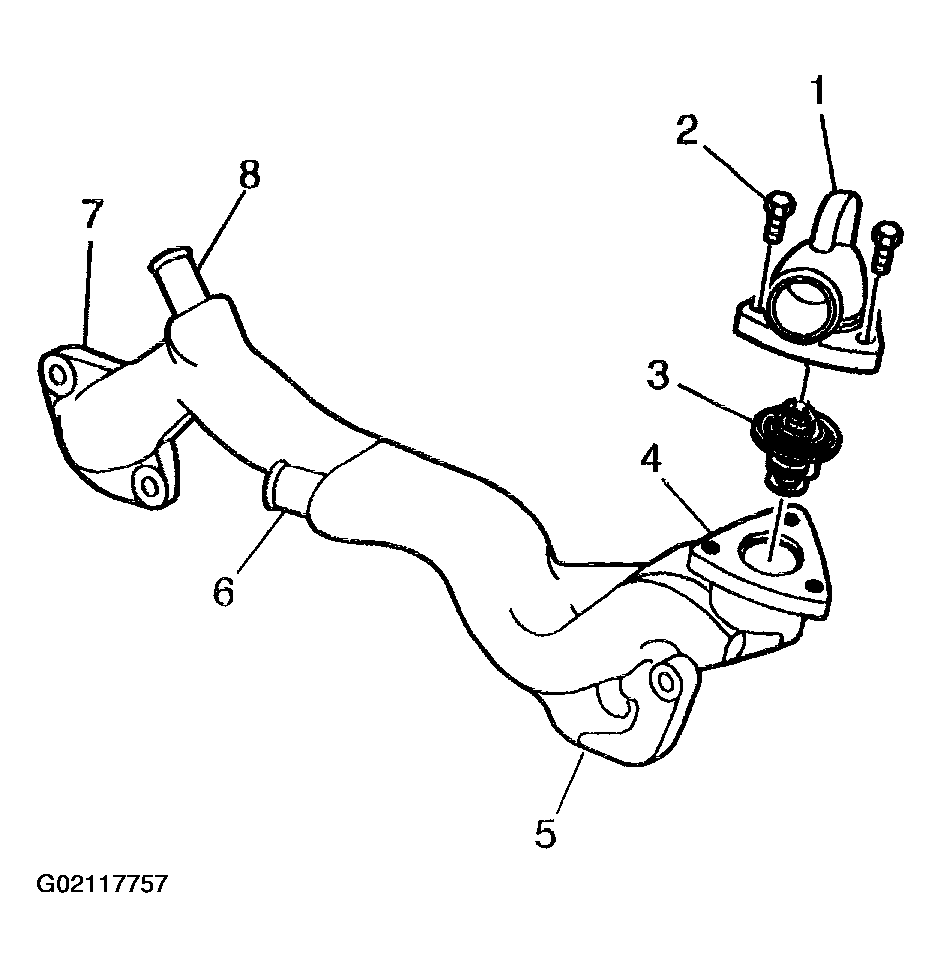

Fig 2: Removing Thermostat
Courtesy of GENERAL MOTORS CORP.
