Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

Drain the cooling system. Refer to DRAINING AND FILLING COOLING SYSTEM
Remove the drive belt. Refer to DRIVE BELT REPLACEMENT -- ACCESSORY in Engine Mechanical - 8.1 L.
Remove the fan clutch. Refer to FAN CLUTCH REPLACEMENT .
Position the outlet hose clamp at the water pump.
Remove the outlet hose from the water pump.

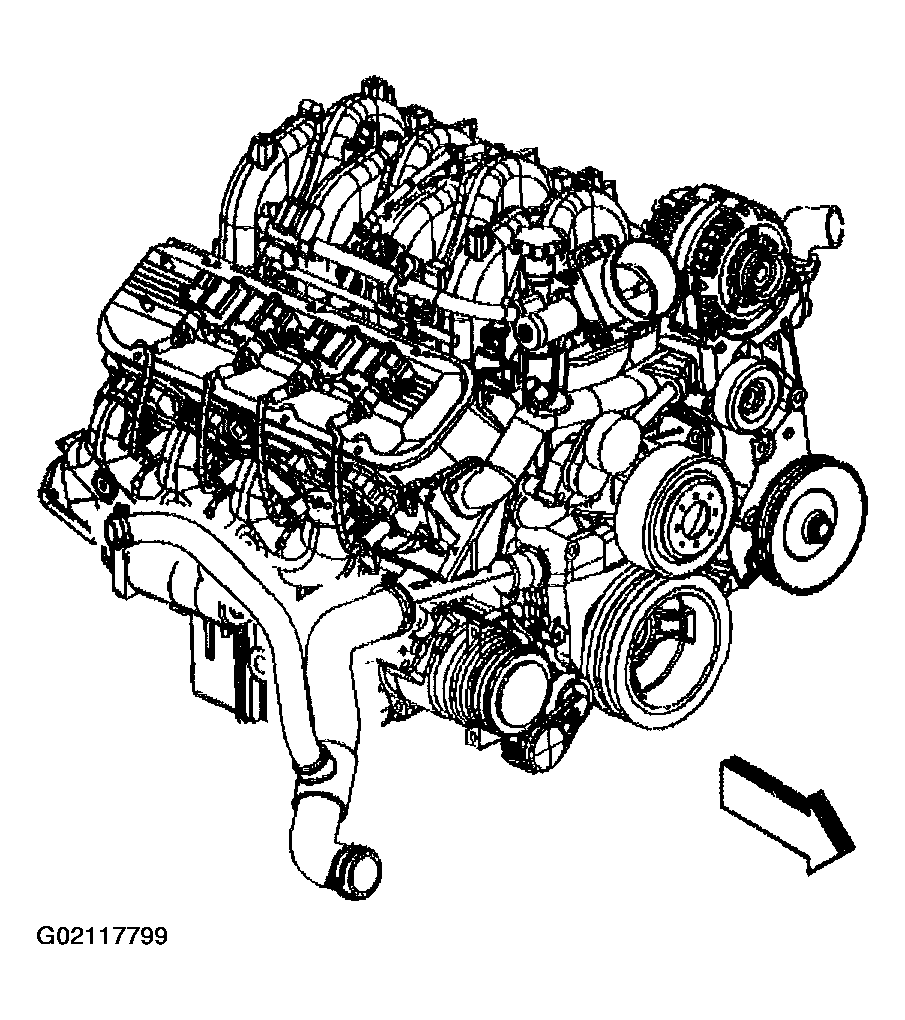

Fig 1: Removing Outlet Hose From Water Pump
Courtesy of GENERAL MOTORS CORP.
Position the bypass hose clamps at the water pump and water crossover.
Remove the bypass hose.

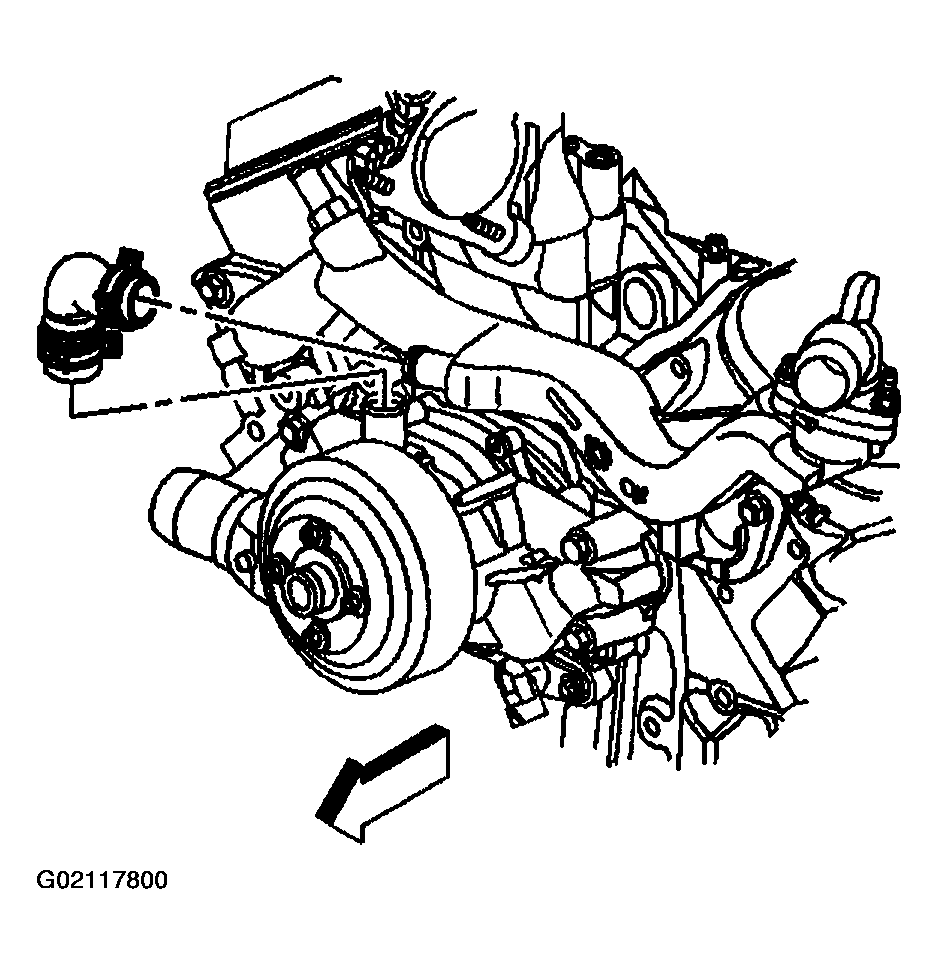

Fig 2: Removing Bypass Hose
Courtesy of GENERAL MOTORS CORP.
Remove the water pump bolts.
Remove the water pump.
Remove and discard the water pump gaskets.

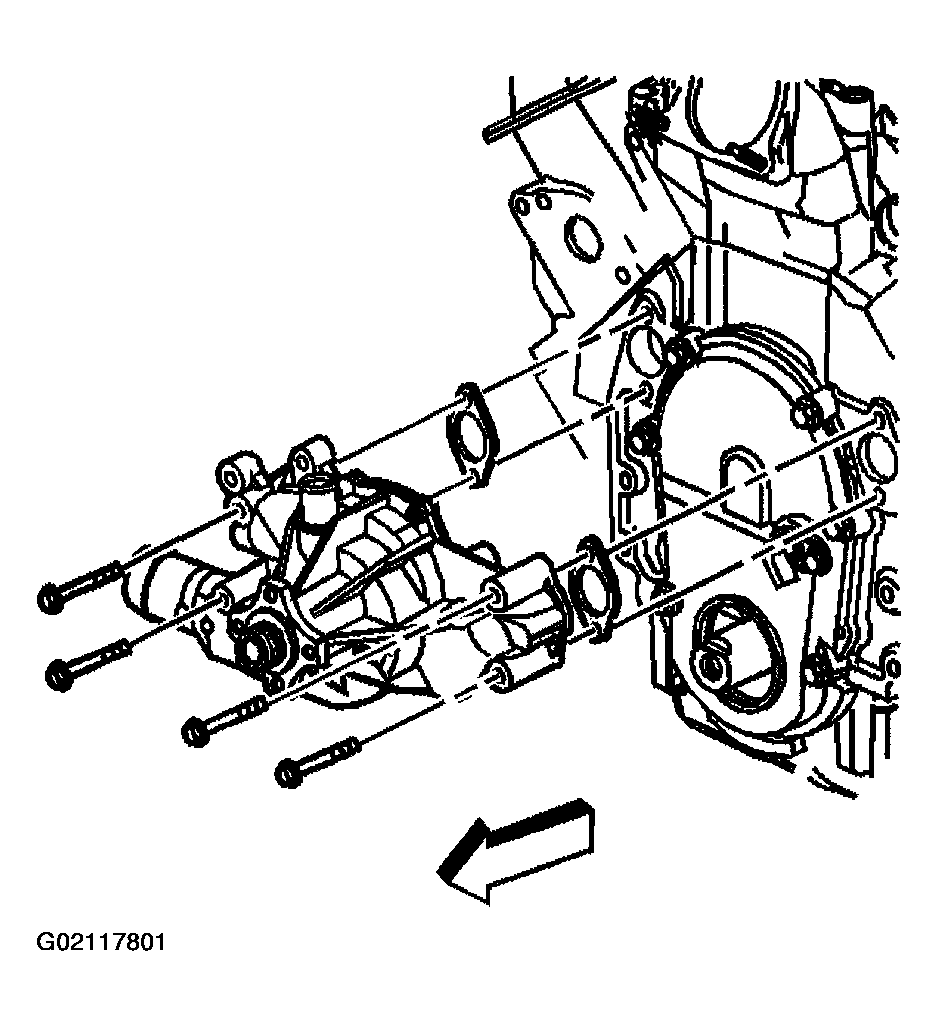

Fig 3: Removing Water Pump
Courtesy of GENERAL MOTORS CORP.
