HVAC Component Views

WARNING: This page is about a different car, the 2003 Chevrolet SSR. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Instrument Panel Cluster Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Headlamp Switch
2	Instrument Panel Cluster (IPC)
3	Radio
4	Inflatable Restraint I/P Module
5	Auxiliary Power Outlet Front #2
6	Cigar Lighter
7	HVAC Control Module
8	Auxiliary Power Outlet Front #1
9	Noise Compensation Microphone
10	Ignition Switch

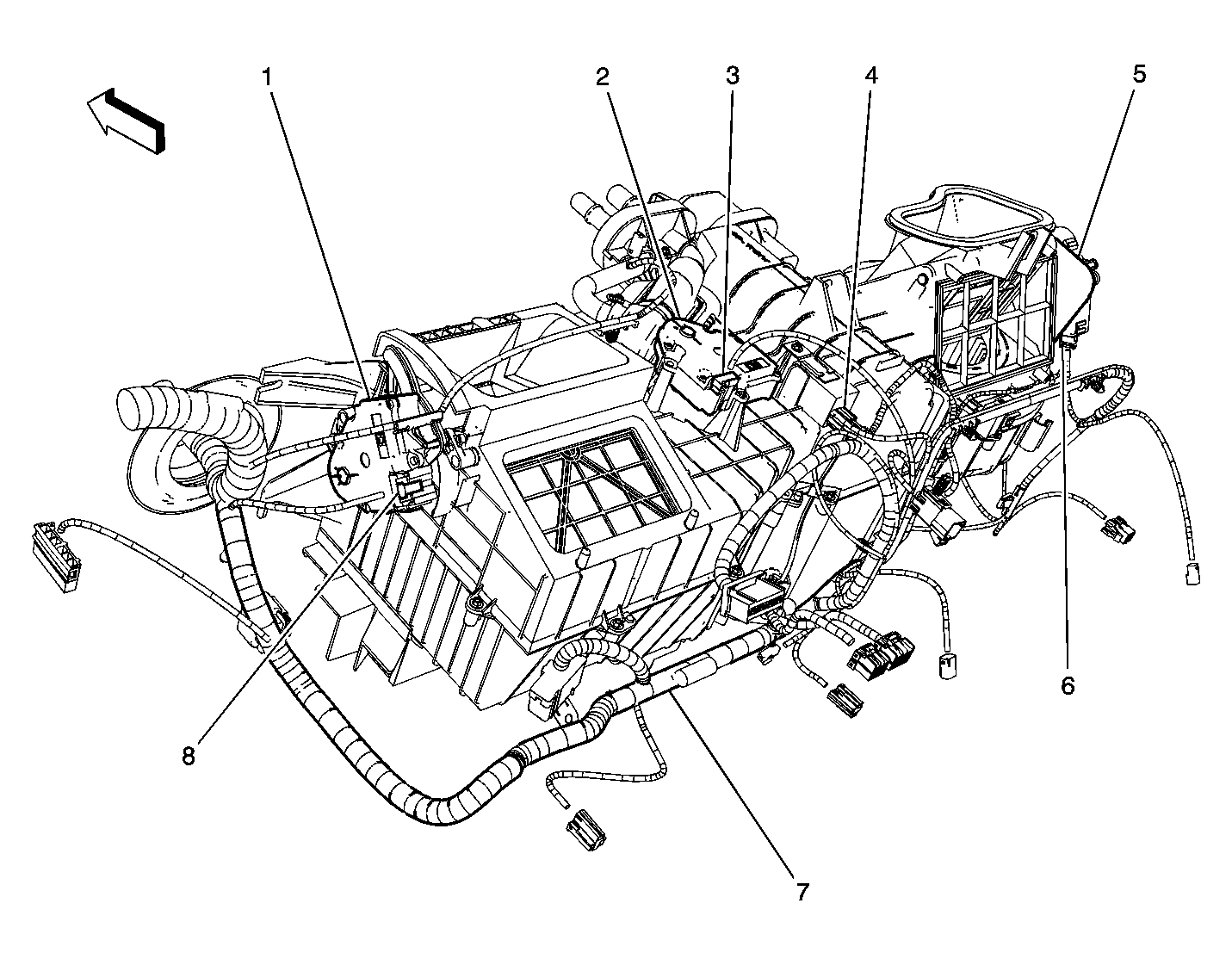

Fig 2: HVAC Actuators Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Mode Actuator
2	Air Temperature Actuator Connector
3	Air Temperature Actuator
4	Evaporator Temperature Sensor Connector
5	Recirculation Actuator
6	Recirculation Actuator Connector
7	I/P Harness
8	Mode Actuator Connector

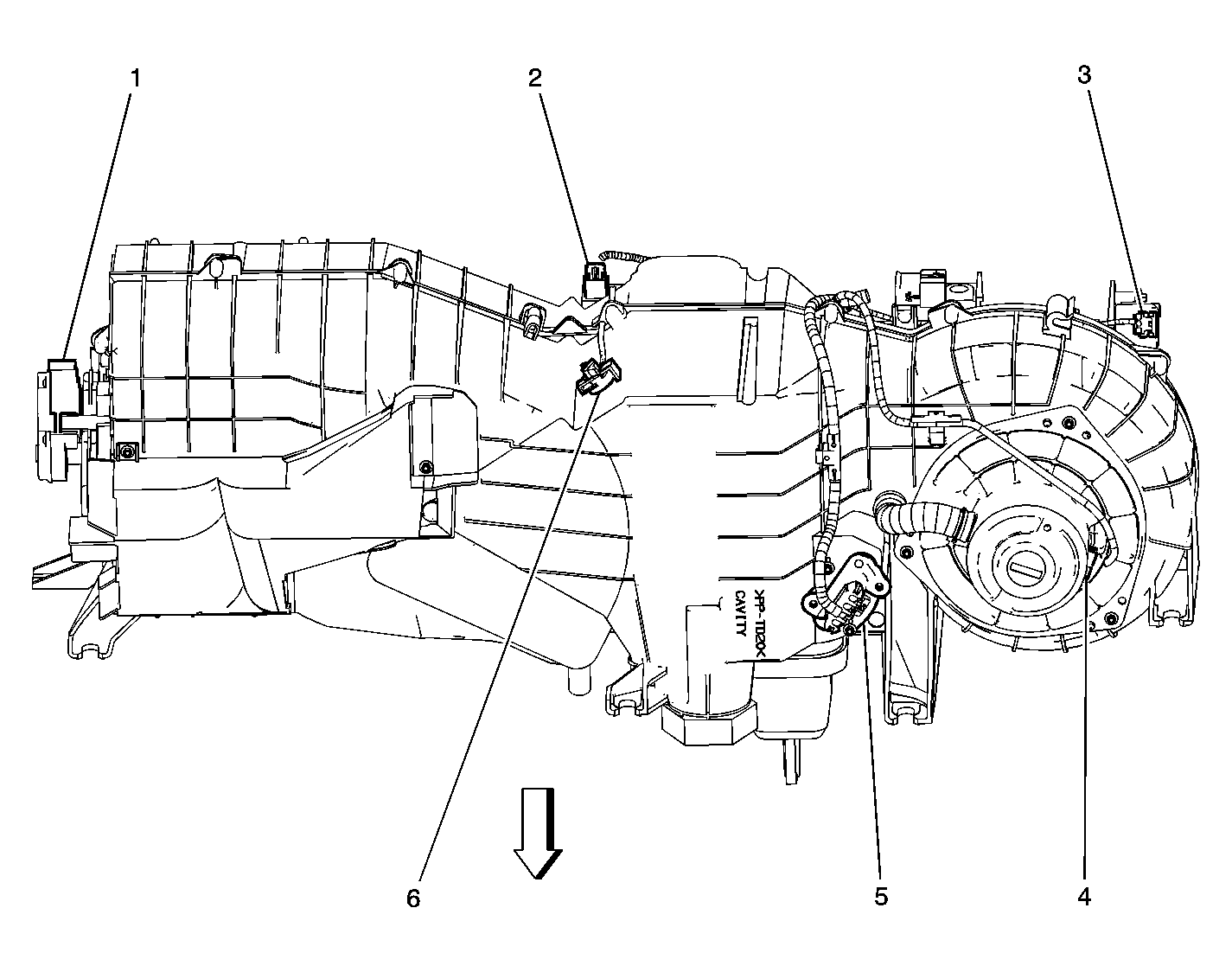

Fig 3: HVAC Actuators and Blower Motor Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Mode Actuator
2	Evaporator Temperature Sensor Connector
3	Recirculation Actuator
4	Blower Motor
5	Blower Motor Resistor
6	Evaporator Temperature Sensor

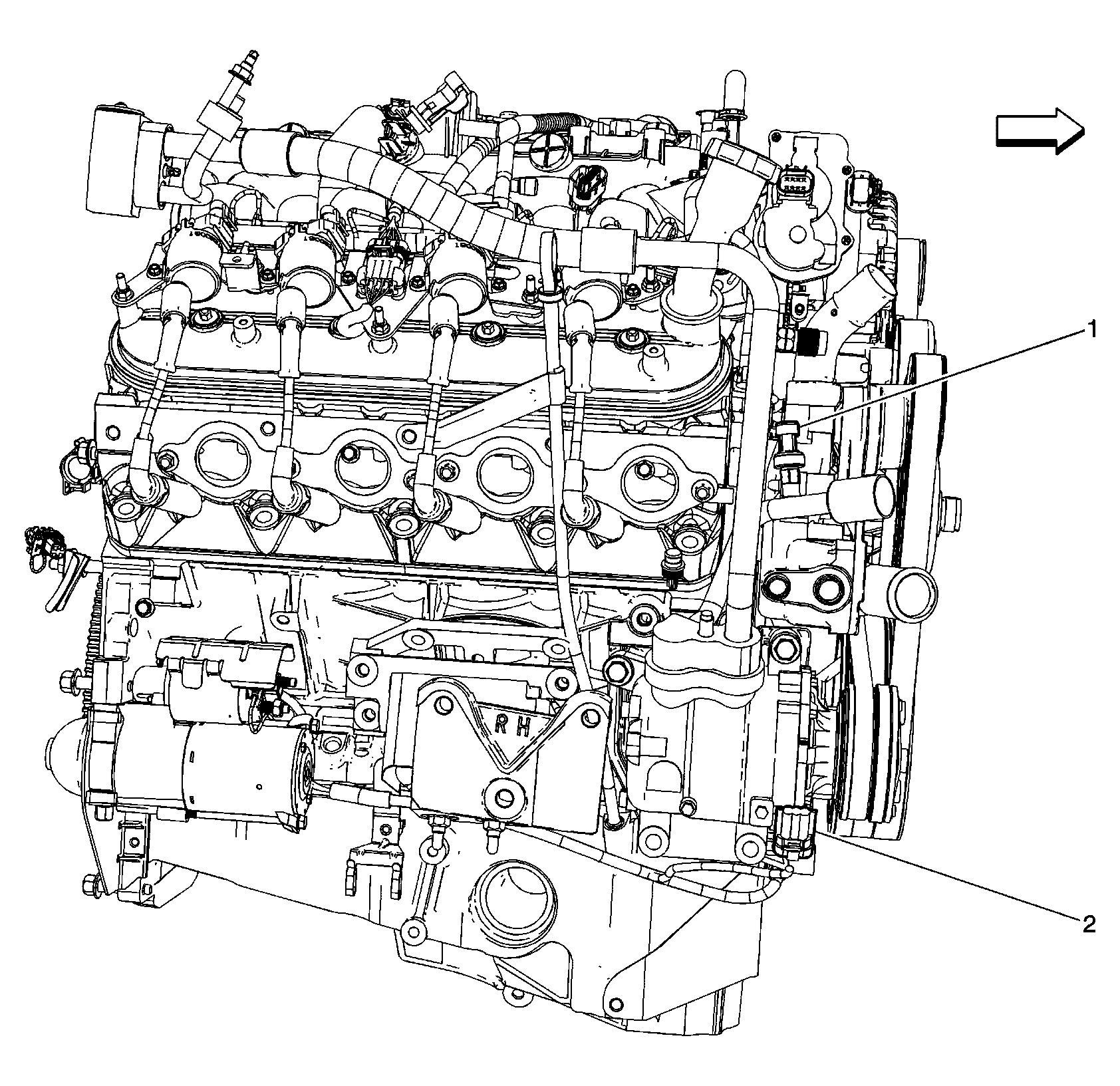

Fig 4: A/C Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	A/C Refrigerant Pressure Sensor
2	A/C Compressor Clutch
