Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet SSR. However, it is still accessible from the selected car via links, so may be relevant.

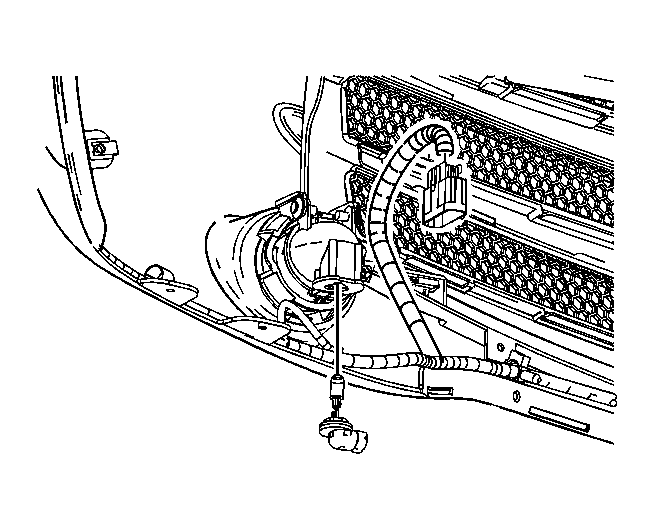

Fig 1: View of Fog Lamp Bulb

Courtesy of GENERAL MOTORS CORP.

Install the fog lamp bulb into the fog lamp housing.
Rotate the fog lamp bulb clockwise until fully seated.

Fig 2: View of Fog Lamp Electrical Connector

Courtesy of GENERAL MOTORS CORP.

Connect the wiring harness to the bulb.
Lower the vehicle.
