Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet SSR. However, it is still accessible from the selected car via links, so may be relevant.

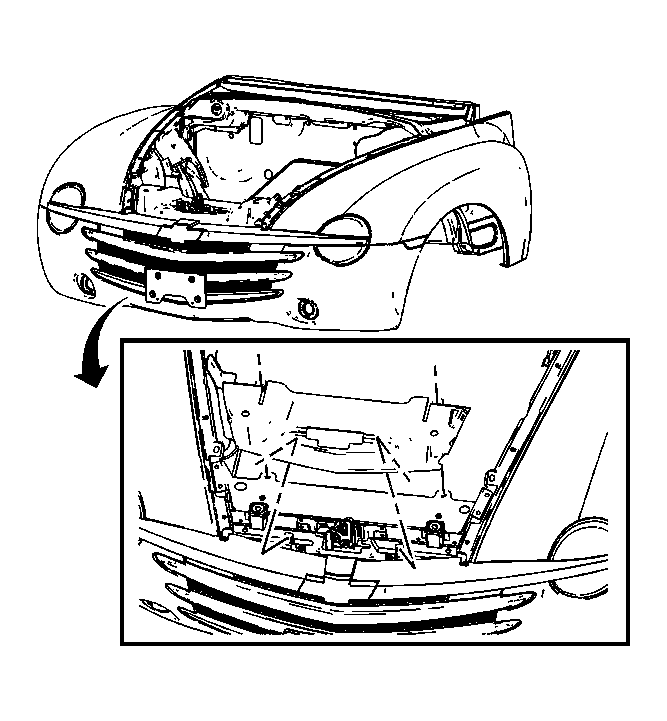

Fig 1: View of Splash Shield

Courtesy of GENERAL MOTORS CORP.

Install the splash shield onto the vehicle.

Fig 2: Identifying Splash Shield Retainers

Courtesy of GENERAL MOTORS CORP.

Install the splash shield retainers.
Install the air cleaner assembly. Refer to Air Cleaner Assembly Replacement in Engine Controls - 4.8L, 5.3L, and 6.0L.
Close the hood.
