Installation Procedure

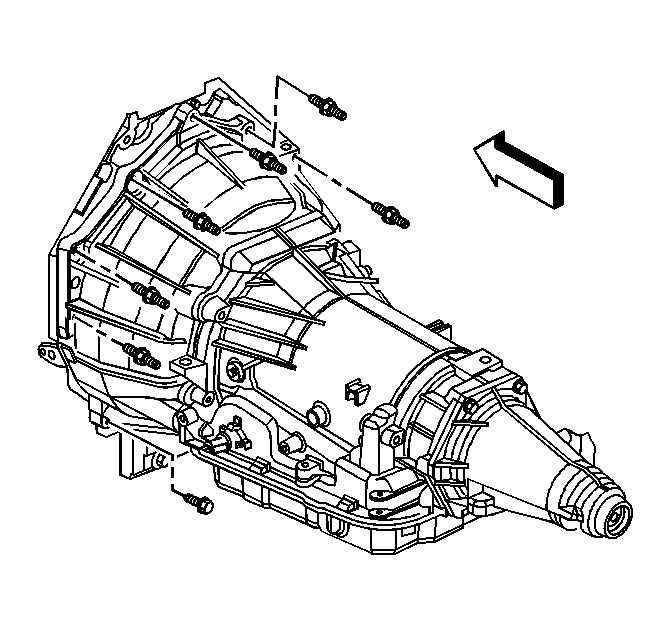

    Fig 1: View Of Automatic Transmission Bolt/Studs
    GM859003Courtesy of GENERAL MOTORS CORP.
  1. Raise the transmission into place while simultaneously installing the fluid indicator tube.
  2. Remove the J 21366 .
  3. Slide the transmission straight onto the locating pins while lining up the marks on the flywheel and the torque converter.

    The torque converter must rotate freely by hand.

    NOTE: Refer to Fastener Notice in Cautions and Notices.
  4. Install transmission studs and bolt.

    Tighten:  Tighten the bolt/studs to 50 N.m (37 lb ft).

    5. Fig 2: Lower Right Transmission Bolt And Stud
    GM859004Courtesy of GENERAL MOTORS CORP.
  5. Install the lower right transmission stud and bolt.

    Tighten:  Tighten the bolt/stud to 50 N.m (37 lb ft).

    6. Fig 3: Fuel Feed/Return & Evaporative Emission Return Pipe Bracket & Nut
    GM859002Courtesy of GENERAL MOTORS CORP.
  6. Install the fuel feed/return and EVAP return pipe bracket nut.

    Tighten:  Tighten the nut to 20 N.m (15 lb ft).

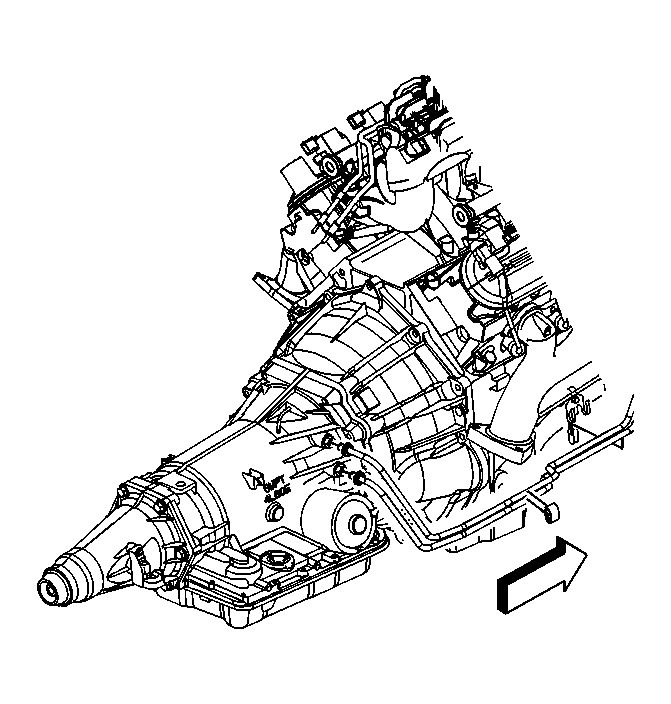

    7. Fig 4: View Of Transmission Oil Cooler Lines
    GM396804Courtesy of GENERAL MOTORS CORP.
  7. Remove the plugs from the transmission oil cooler line fittings.
  8. Connect the transmission oil cooler lines. Refer to Transmission Fluid Cooler Line Quick Connect Fitting .
    9. Fig 5: Torque Converter Bolts
    GM859005Courtesy of GENERAL MOTORS CORP.
  9. If reusing the torque converter bolts, clean the bolt threads and apply Loctite 242 GM P/N 12345382 (Canadian P/N 10953489), or equivalent to the threads prior to installation.
  10. Install the torque converter bolts.

    Tighten:  Tighten the bolts to 63 N.m (46 lb ft).

    11. Fig 6: View Of Bolt Securing Fuel Line Bracket To Left Side Of Transmission
    GM396800Courtesy of GENERAL MOTORS CORP.
  11. Install the bolt that secures the fuel line bracket to the left side of the transmission.

    Tighten:  Tighten the bolt to 10 N.m (89 lb in).

    12. Fig 7: View Of Transmission Harness 20-Way Connector & VSS Electrical Connector
    GM858994Courtesy of GENERAL MOTORS CORP.
  12. Connect the VSS electrical connector (2).
  13. Connect the main electrical connector (1).

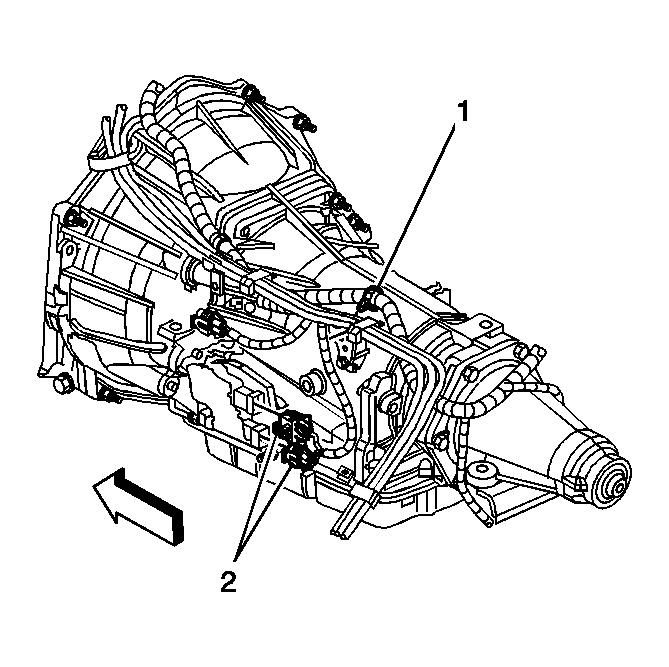

    14. Fig 8: PNP Switch Electrical Connectors & Harness Clip
    GM858995Courtesy of GENERAL MOTORS CORP.
  14. Connect the PNP switch electrical connectors (2).
  15. Install the harness clip (1) to the fuel line bracket.
    16. Fig 9: View Of Heat Shield/Exhaust Pipe Hanger Bracket & Bolts
    GM858548Courtesy of GENERAL MOTORS CORP.
  16. Install the exhaust hanger bracket and bolts.

    Tighten:  Tighten the bolts to 17 N.m (13 lb ft).

    17. Fig 10: View Of Range Selector Cable End At Transmission Range Selector Lever Ball Stud
    GM738167Courtesy of GENERAL MOTORS CORP.
  17. Install the cable to the bracket.
  18. Install the range selector cable end (2) to the transmission range selector lever ball stud (1).
    19. Fig 11: View Of Retainer Securing Cable To Bracket
    GM858985Courtesy of GENERAL MOTORS CORP.
  19. Ensure the transmission manual shaft is positioned in mechanical park.
  20. Install the retainer that secures the cable to the bracket.

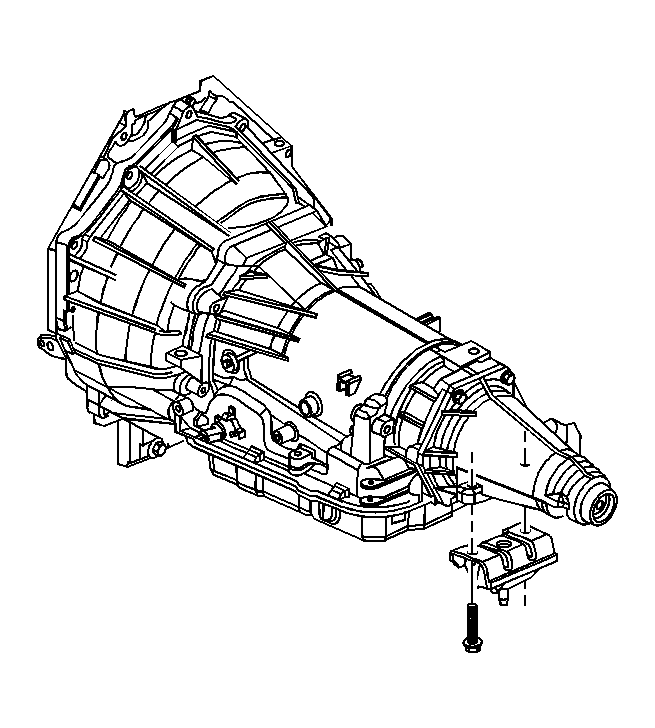

    21. Fig 12: Transmission Mount & Bolts
    GM858996Courtesy of GENERAL MOTORS CORP.
  21. Install the transmission mount and bolts.

    Tighten:  Tighten the bolts to 25 N.m (18 lb ft).

  22. Install the transfer case, if equipped. Refer to the appropriate procedure:
  23. Install the starter motor. Refer to Starter Motor Replacement (4.8L, 5.3L, and 6.0L Engines) or Starter Motor Replacement (8.1L Engine) in Engine Electrical.
  24. Install the exhaust pipe. Refer to Exhaust Manifold Pipe Replacement (6.0L and 8.1L Engines) in Engine Exhaust.
    25. Fig 13: View Of Transmission Crossmember
    GM702036Courtesy of GENERAL MOTORS CORP.
  25. Raise the transmission slightly and install the transmission support.
  26. Install the transmission support bolts/nuts.

    Tighten:  Tighten the bolts/nuts to 95 N.m (70 lb ft).

    27. Fig 14: Identifying Transmission Mount Nuts
    GM647997Courtesy of GENERAL MOTORS CORP.
  27. Install the transmission mount nuts.

    Tighten:  Tighten the nuts to 50 N.m (37 lb ft).

  28. Remove the support from the transmission.
  29. Install the rear propeller shaft. Refer to Propeller Shaft Replacement - Rear in Propeller Shaft.
  30. Connect the negative battery cable. Refer to Battery Negative Cable Disconnect/Connect Procedure in Engine Electrical.
  31. Fill the transmission to the proper level with DEXRON® III transmission fluid. Refer to Transmission Fluid Checking Procedure .
