Installation Procedure

Fig 1: View Of Cable Grommet At Floor Panel

GM744168

Courtesy of GENERAL MOTORS CORP.

Push the cable down through the floor panel and install the grommet (2).

Fig 2: View Of shift Control Cable & Shifter

GM744173

Courtesy of GENERAL MOTORS CORP.

Install the range selector cable (2) to the floor shift control assembly.
Install the end of the range selector cable (1) to floor control ball stud.
Install the console. Refer to Console Replacement in Instrument Panel, Gages and Console.
Raise the vehicle. Refer to Lifting and Jacking the Vehicle in General Information.

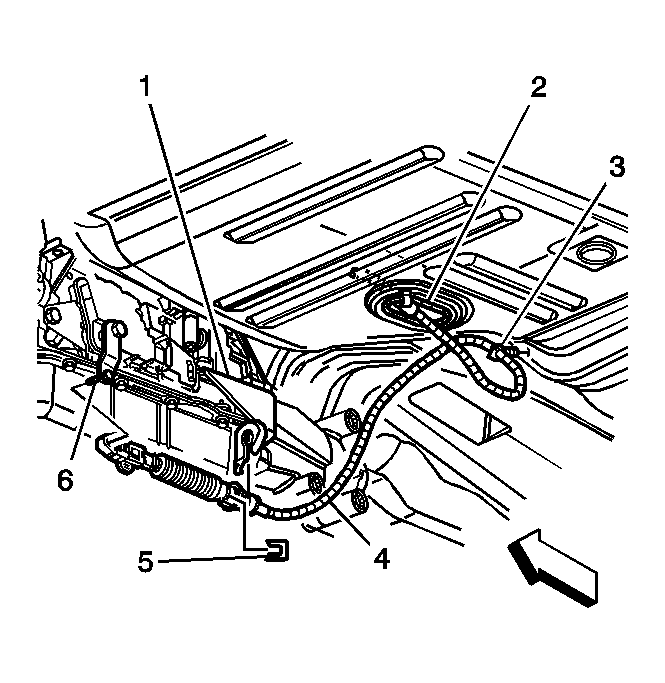

Fig 3: Identifying Range Selector Cable

GM744174

Courtesy of GENERAL MOTORS CORP.

Install the cable to the retainer (3) on the floor panel.
Install the range selector cable (4) to the bracket (1).
Install the retainer (5) to the range selector cable.
Install the end of the range selector cable to the transmission range selector lever ball stud (6).
Adjust the range selector cable. Refer to Automatic Transmission Range Selector Cable Adjustment .
Lower the vehicle and check for proper operation.
