ABS Schematics

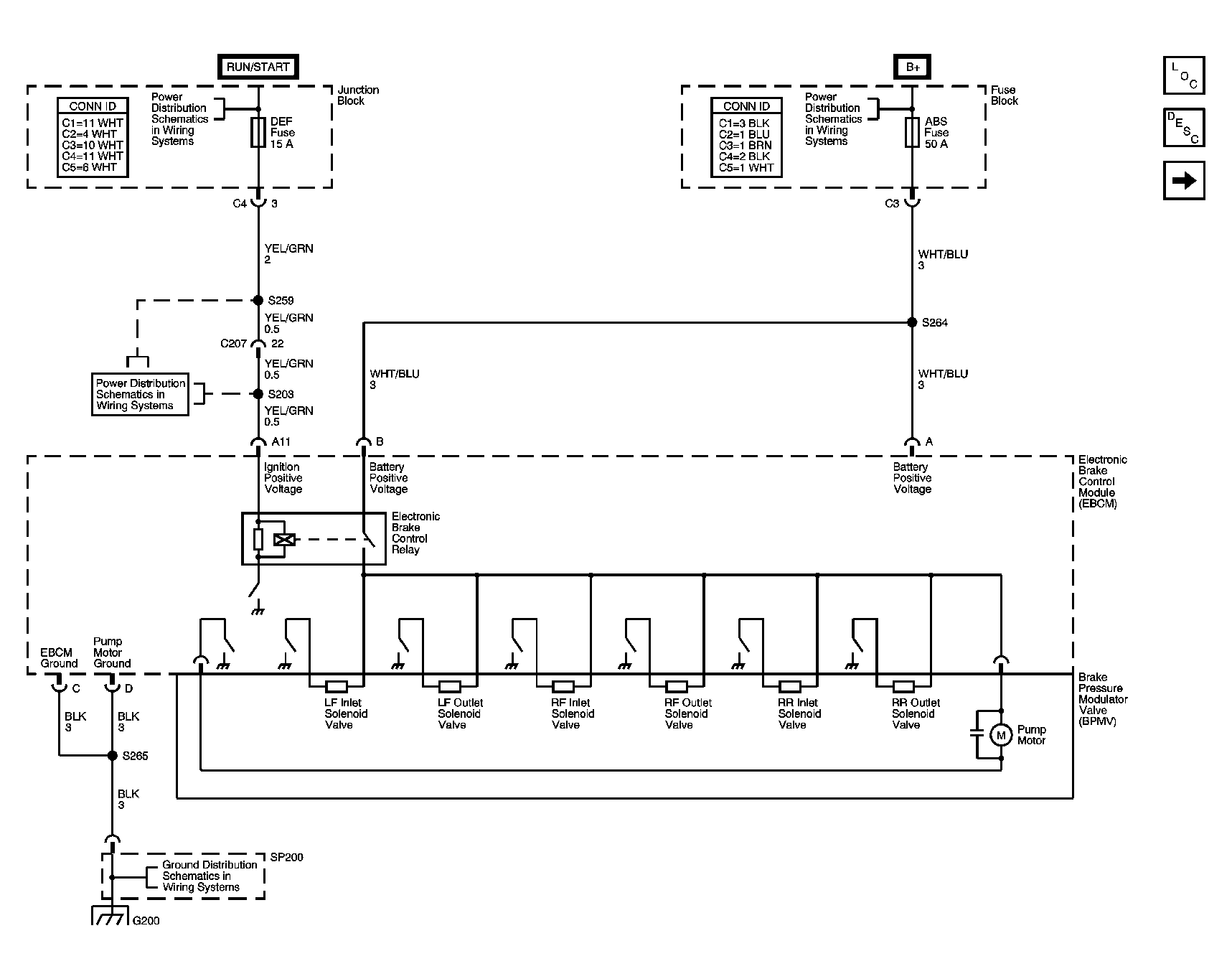

Fig 1: Electronic Brake Control Module (EBCM) Power and Ground Schematic

Courtesy of GENERAL MOTORS CORP.

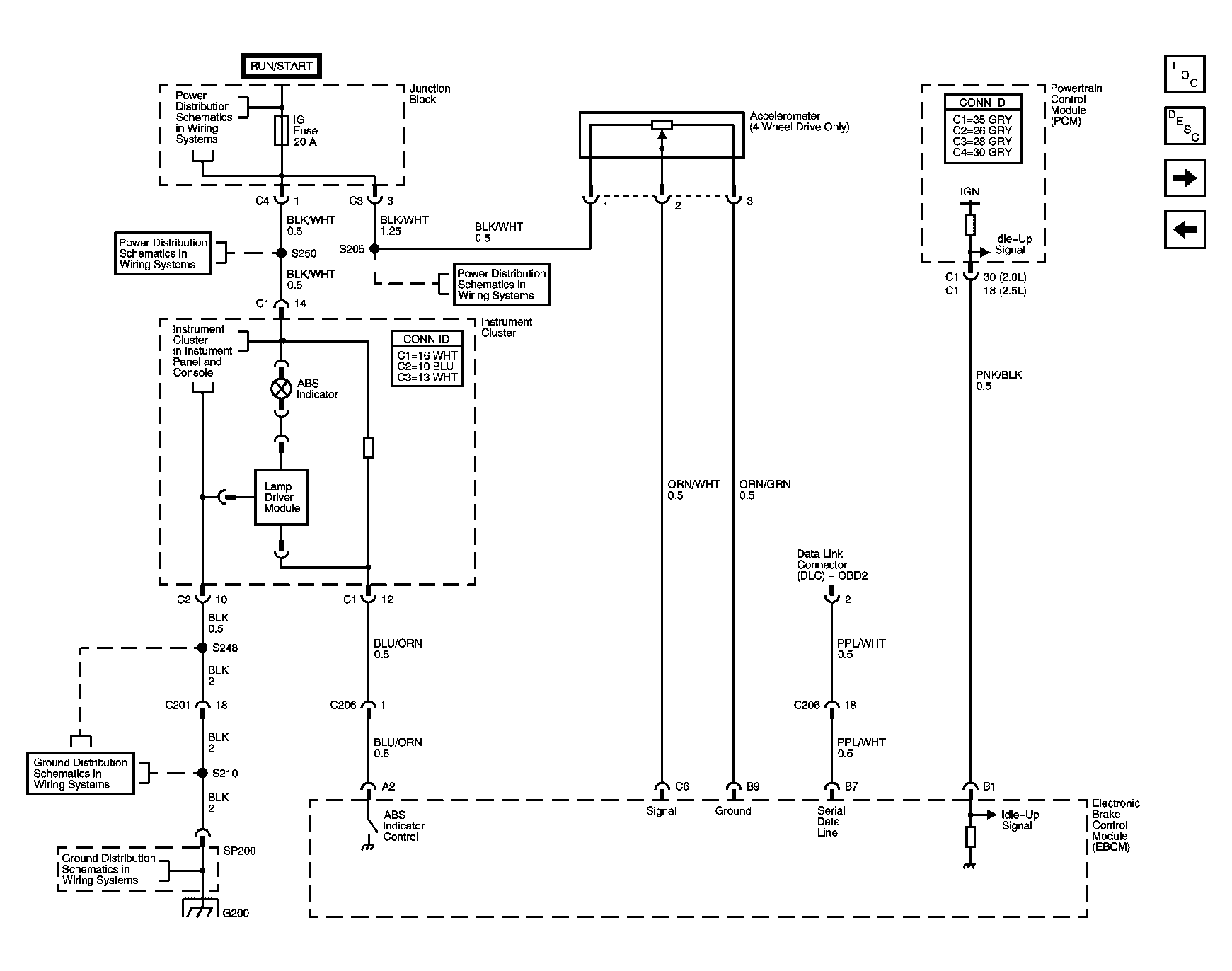

Fig 2: Electronic Brake Control Module (EBCM), ABS Indicator, Accelerometer Schematic

Courtesy of GENERAL MOTORS CORP.

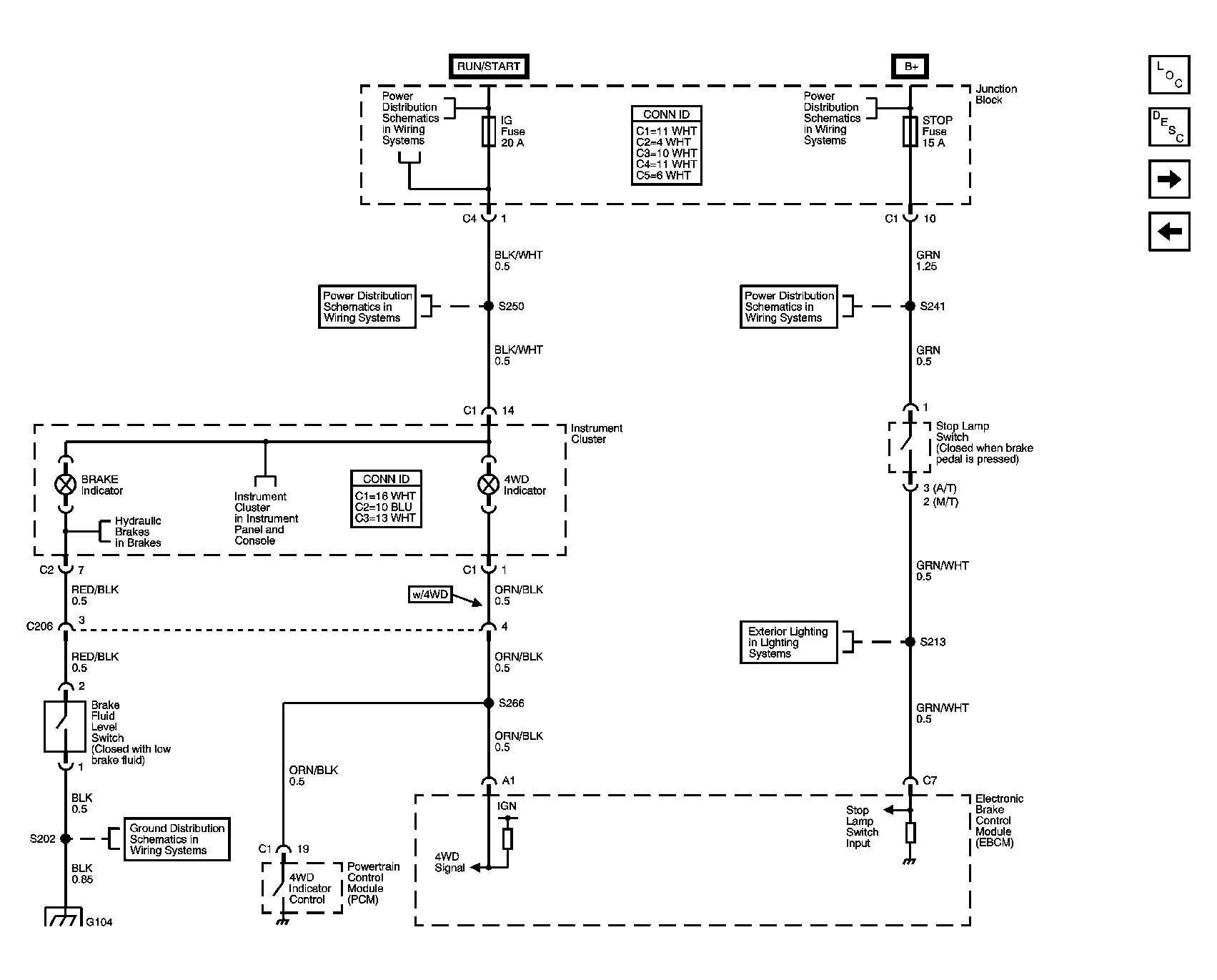

Fig 3: Electronic Brake Control Module (EBCM), Brake Indicator, 4WD Indicator, Stop Lamp Switch, Brake Fluid Level Switch Schematic

Courtesy of GENERAL MOTORS CORP.

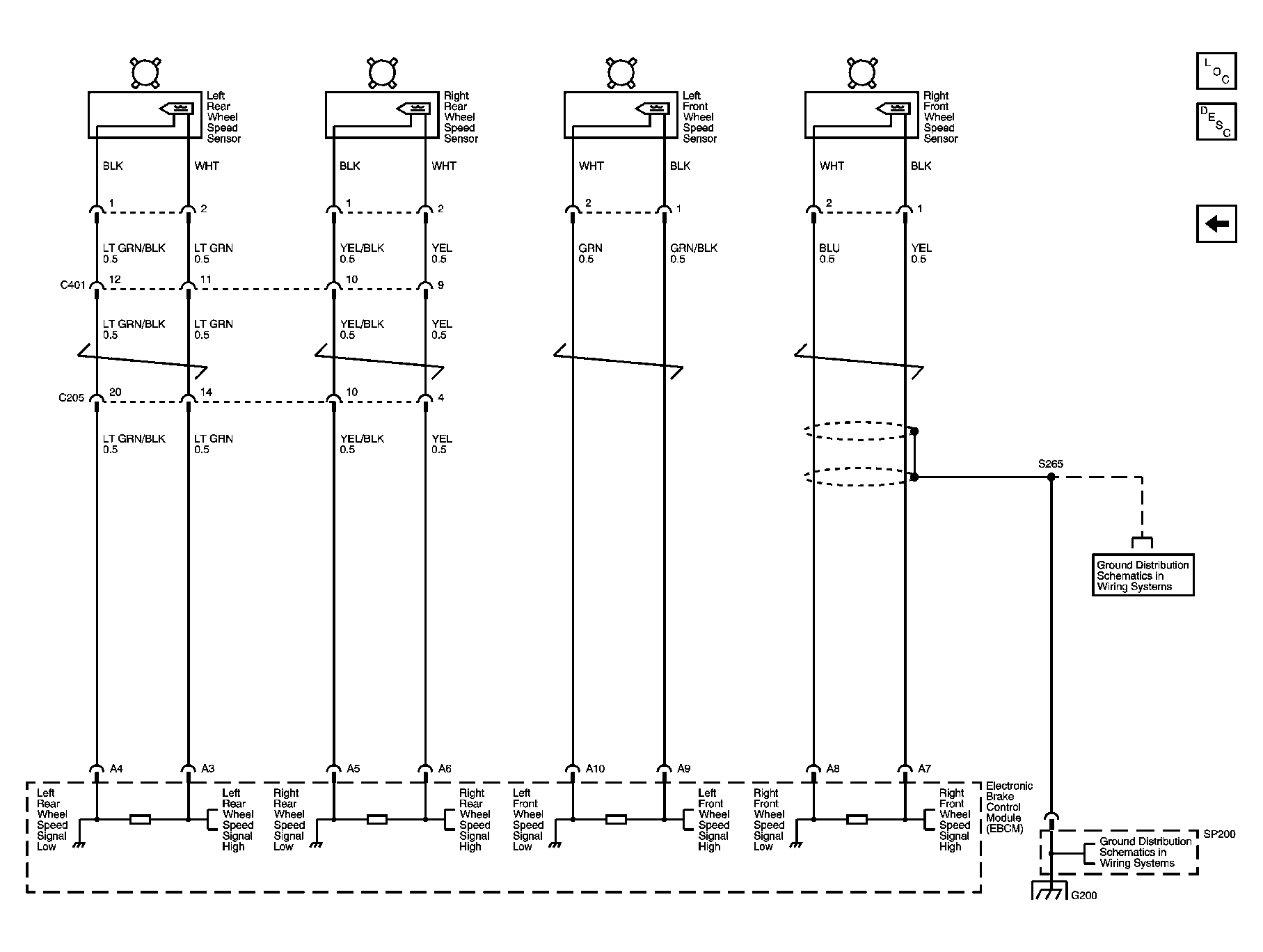

Fig 4: Electronic Brake Control Module (EBCM), Wheel Speed Sensors Schematic

Courtesy of GENERAL MOTORS CORP.
