Lighting Systems Component Views

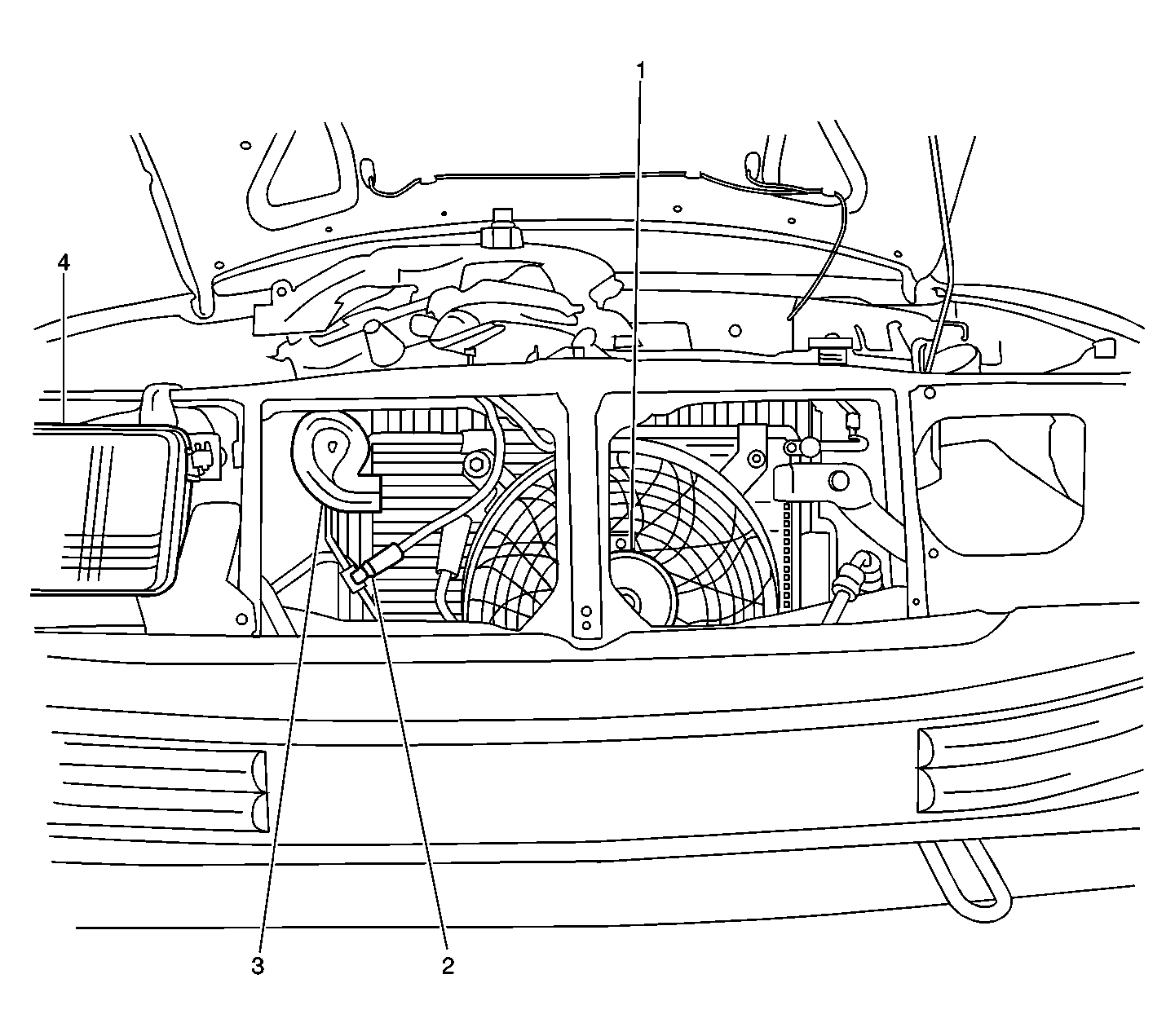

Fig 1: Grille

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	A/C Condenser Fan
2	A/C Refrigerant Pressure Switch
3	Horn
4	Right Front Headlamp

Fig 2: Left Cowl (M/T) Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Daytime Running Lamps (DRL) Control Module
2	Stoplamp Switch
3	Clutch Pedal Position (CPP) Switch
4	C204
5	C205
6	C213
7	Fuel Pump Relay
8	Main Relay
9	Tail Relay

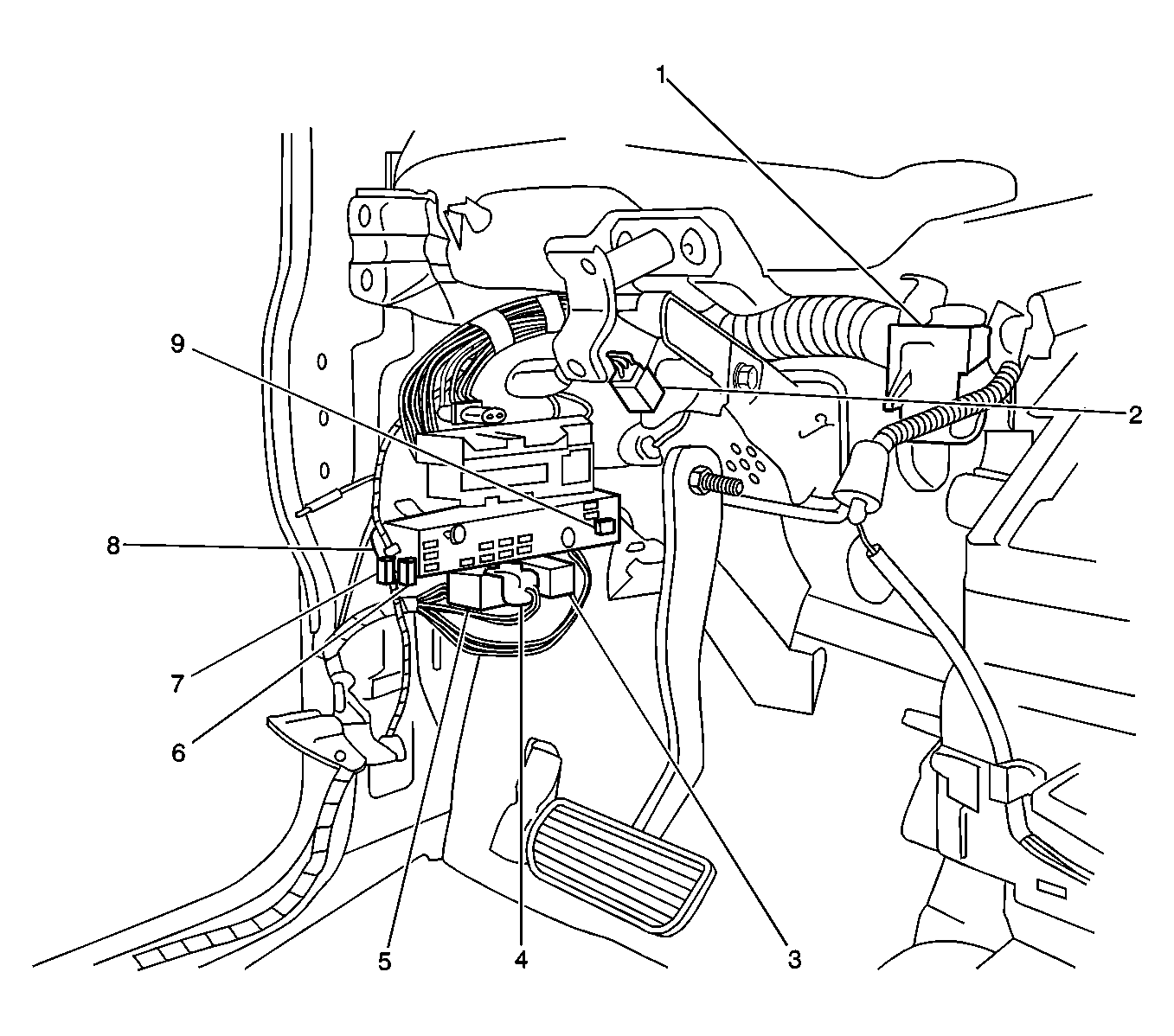

Fig 3: Left Cowl (A/T) Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Daytime Running Lamps (DRL) Control Module
2	Stop Lamp Switch
3	C204
4	C205
5	C213
6	Fuel Pump Relay
7	Main Relay
8	Junction Block
9	Tail Relay

Fig 4: Instrument Panel Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Heater Control Illumination Lamp
2	A/C Switch
3	Radio
4	A/C Compressor Control Module
5	Inflatable Restraint IP Module
6	Ambient Light Sensor
7	Blower Motor Relay
8	Blower Motor Resistor
9	Powertrain Control Module (PCM)
10	Blower Motor
11	Inflatable Restraint Sensing and Diagnostic Module (SDM)
12	Cigar Lighter
13	Data Link Connector (DLC) OBD2
14	SIR Data Link Connector
15	Fuel Pump Relay
16	Main Relay
17	Junction Block
18	Headlamp Relay
19	Rear Defogger Relay
20	IP Lamp Dimmer Control
21	Remote Control Mirror Switch
22	Cruise Control Main Switch
23	Rear Wiper/Washer Switch
24	Steering Wheel Module Coil
25	Hazard Switch
26	Rear Defogger Switch
27	Blower Switch

Fig 5: Remote Control Door Lock Receiver

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Remote Control Door Lock Receiver (bottom view)

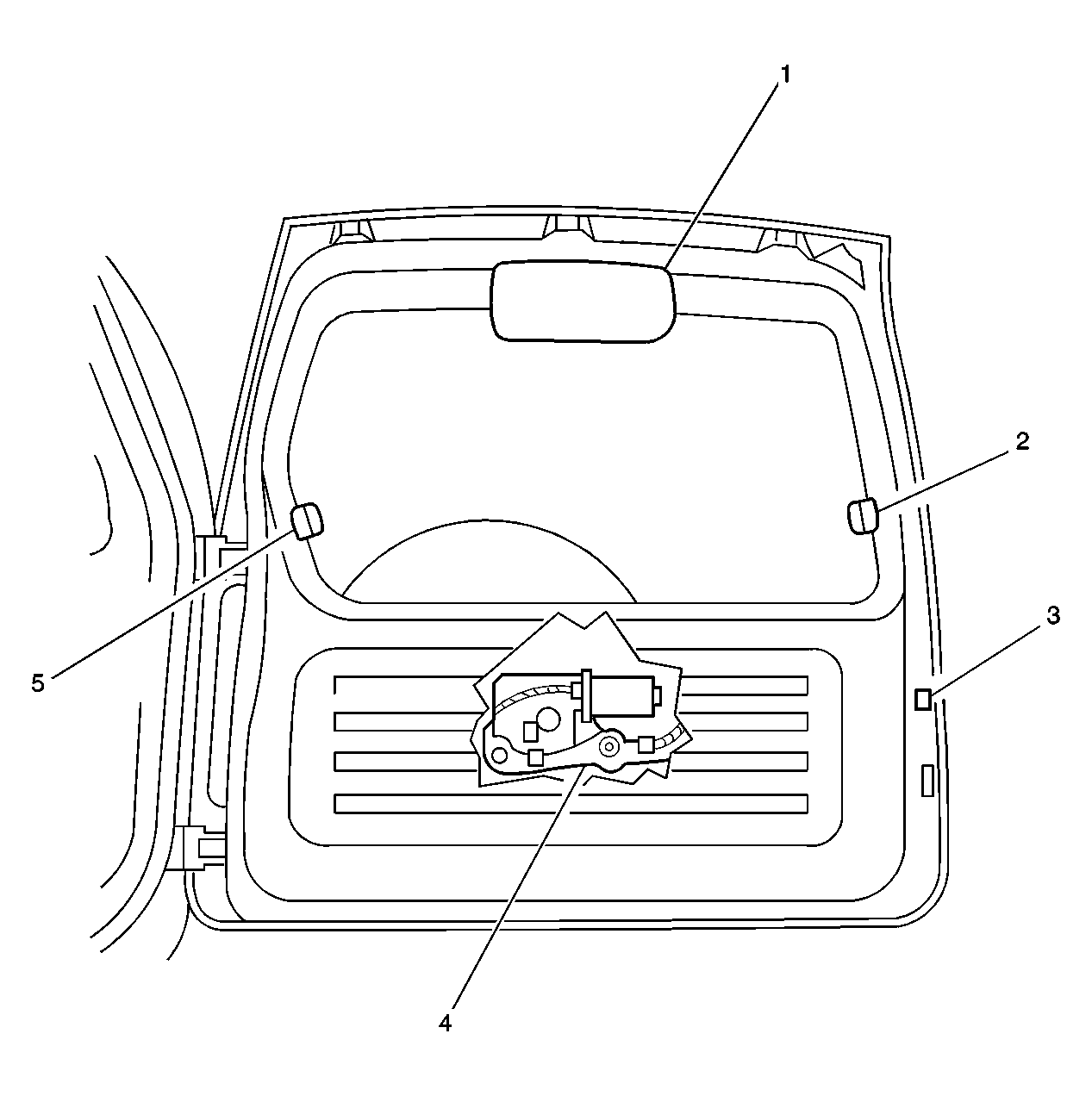

Fig 6: Inner Back Door (4-Door) Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Center High Mount Stoplamp (CHMSL)
2	Rear Defogger-C2
3	Rear Door Lock Cylinder Switch
4	Rear Wiper Motor
5	Rear Defogger-C1

Fig 7: Back Door (2-Door) Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Center High Mount Stop Lamp (CHMSL)
2	G401

Fig 8: Outer Back Door (4-Door) Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Center High Mount Stop Lamp (CHMSL)
2	Rear Door Lock Cylinder Switch
3	License Plate Lamps
4	Rear Defogger
