Removal Procedure

  1. Remove the instrument panel steering column opening trim plate. Refer to Instrument Panel (I/P) Trim Panel Replacement - Left in Instrument Panel, Gages and Console.
  2. Slide the LOCK or the UNLOCK relay from the remote control door lock receiver bracket.
  3. Remove the relay (1) from the relay connector (2).

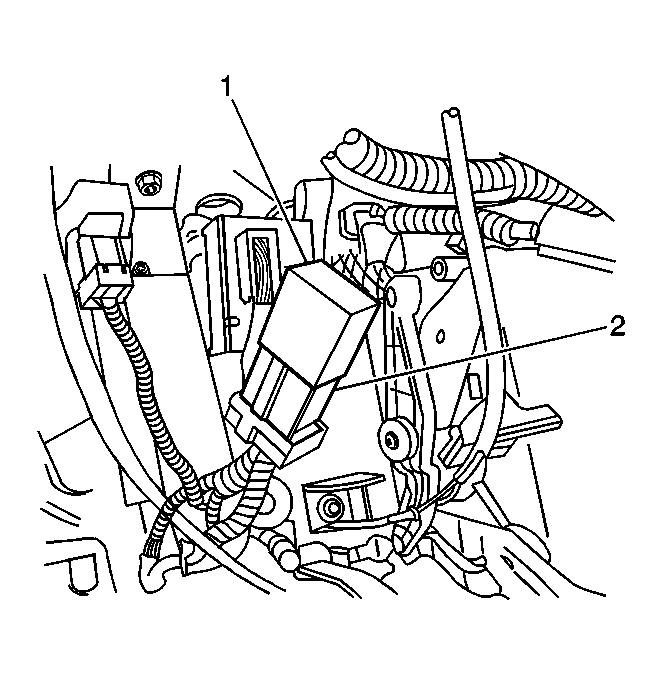

    4. Fig 1: View Of Power Door Lock Relay & Connector
    GM493963Courtesy of GENERAL MOTORS CORP.
