Removal Procedure

  1. Gently pry the left front side master window switch (1) from the front side door trim panel (4).
  2. Disconnect the window switch and the door lock electrical connectors.
  3. Remove the window switch (1) from the vehicle.

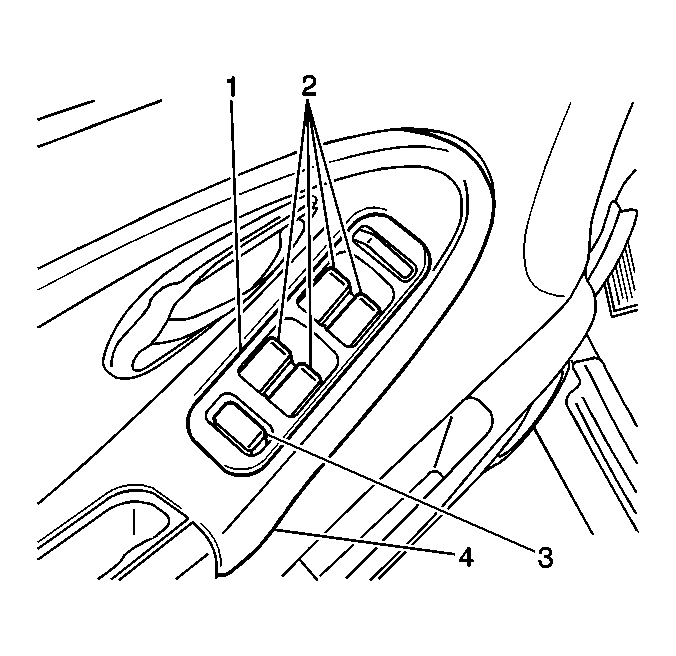

    4. Fig 1: View Of Left Front Side Window Switches & Front Side Door Trim Panel
    GM474183Courtesy of GENERAL MOTORS CORP.
