Instrument Panel Fuse Block

Instrument panel fuse block is located under the driver's side of the instrument panel. See Fig 1.

NOTE: Fuses for air bags and the heater/air conditioning system (2003-04) are located next to the instrument panel fuse block.

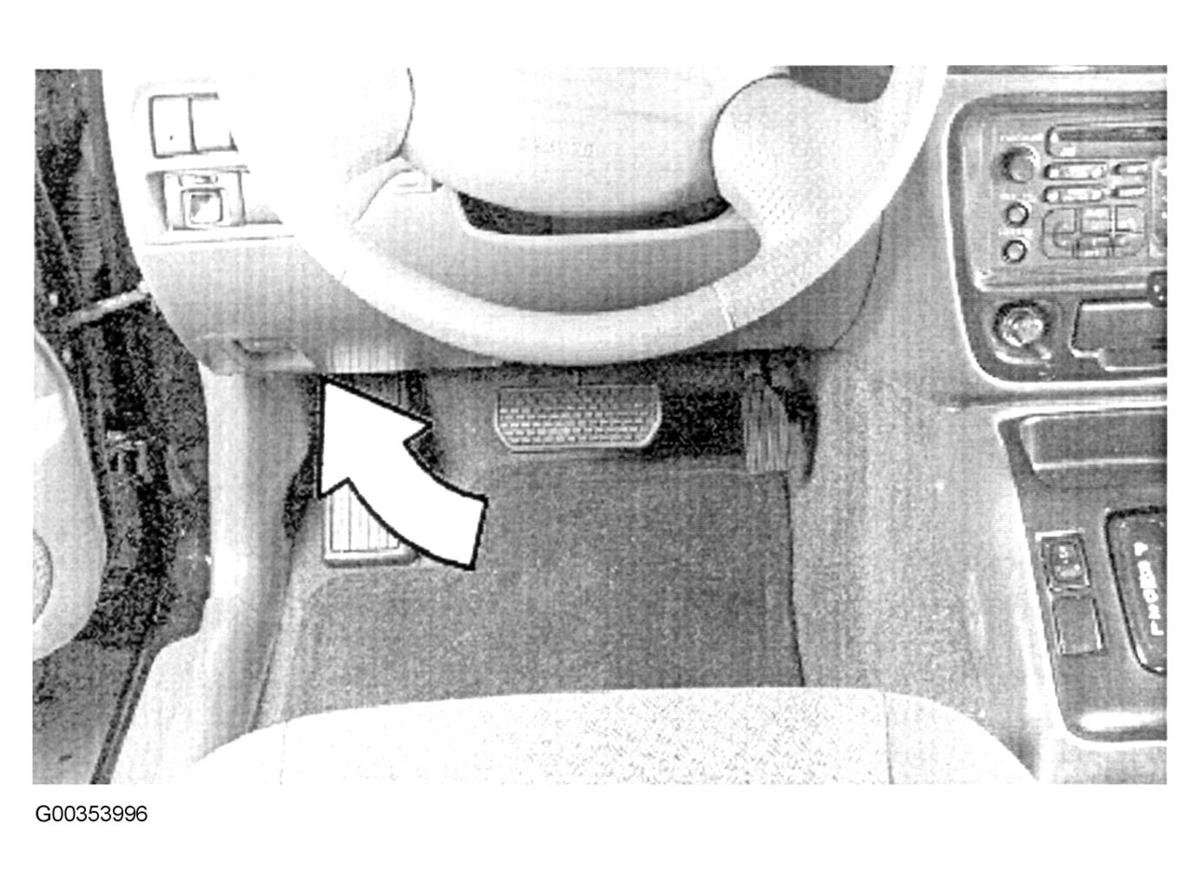

Fig 1: Locating Instrument Panel Fuse Block

Courtesy of GENERAL MOTORS CORP.

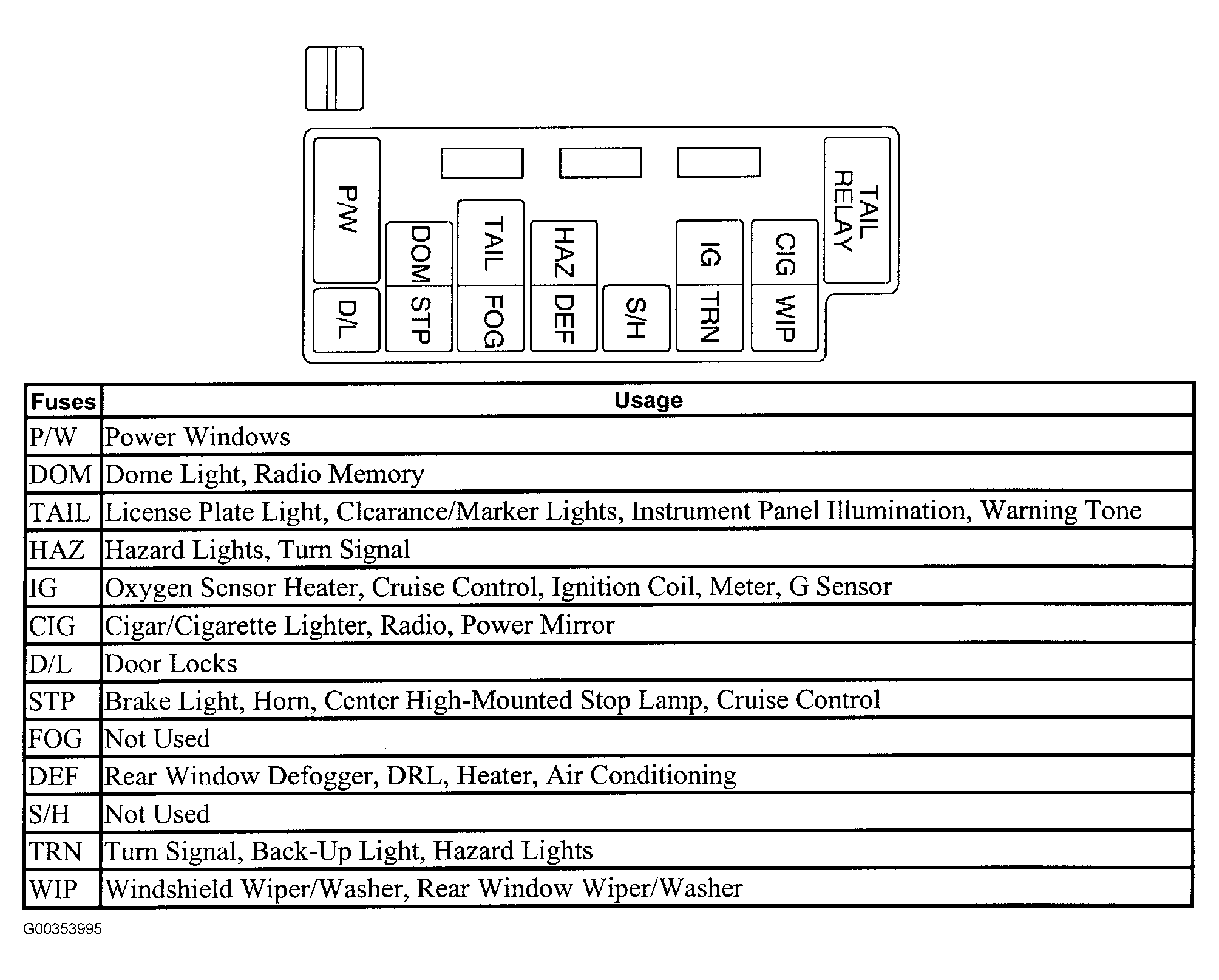

Fig 2: Identifying Instrument Panel Fuse Block Components & Legend

Courtesy of GENERAL MOTORS CORP.

INSTRUMENT PANEL FUSE BLOCK RELAY IDENTIFICATION

RELAY DESCRIPTION
Tail Relay
