SIR Component Views

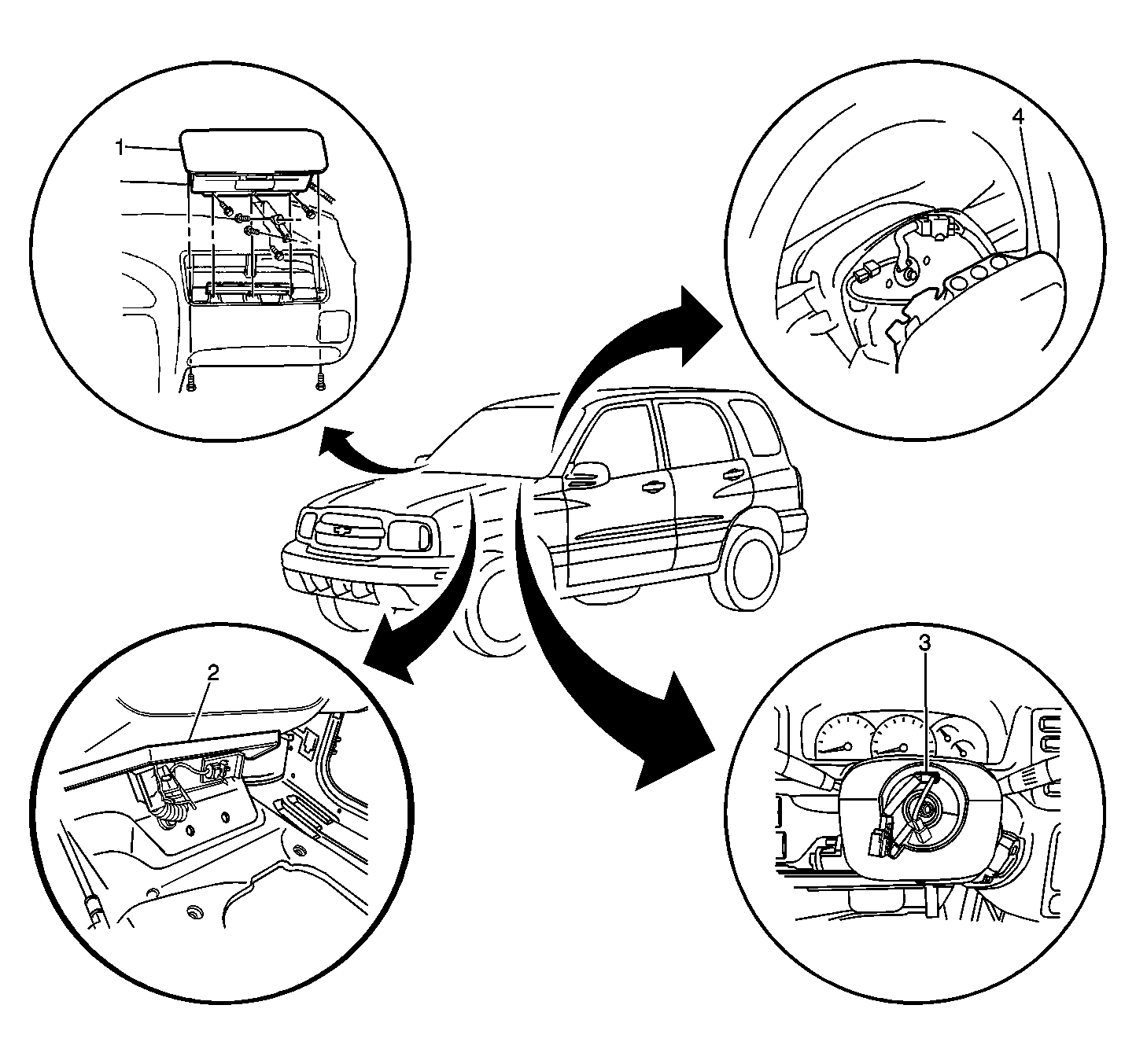

Fig 1: SIR Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inflatable Restraint IP Module
2	Sensing and Diagnostic Module (SDM)
3	Inflatable Restraint Steering Wheel Module Coil
4	Inflatable Restraint Steering Wheel Module
