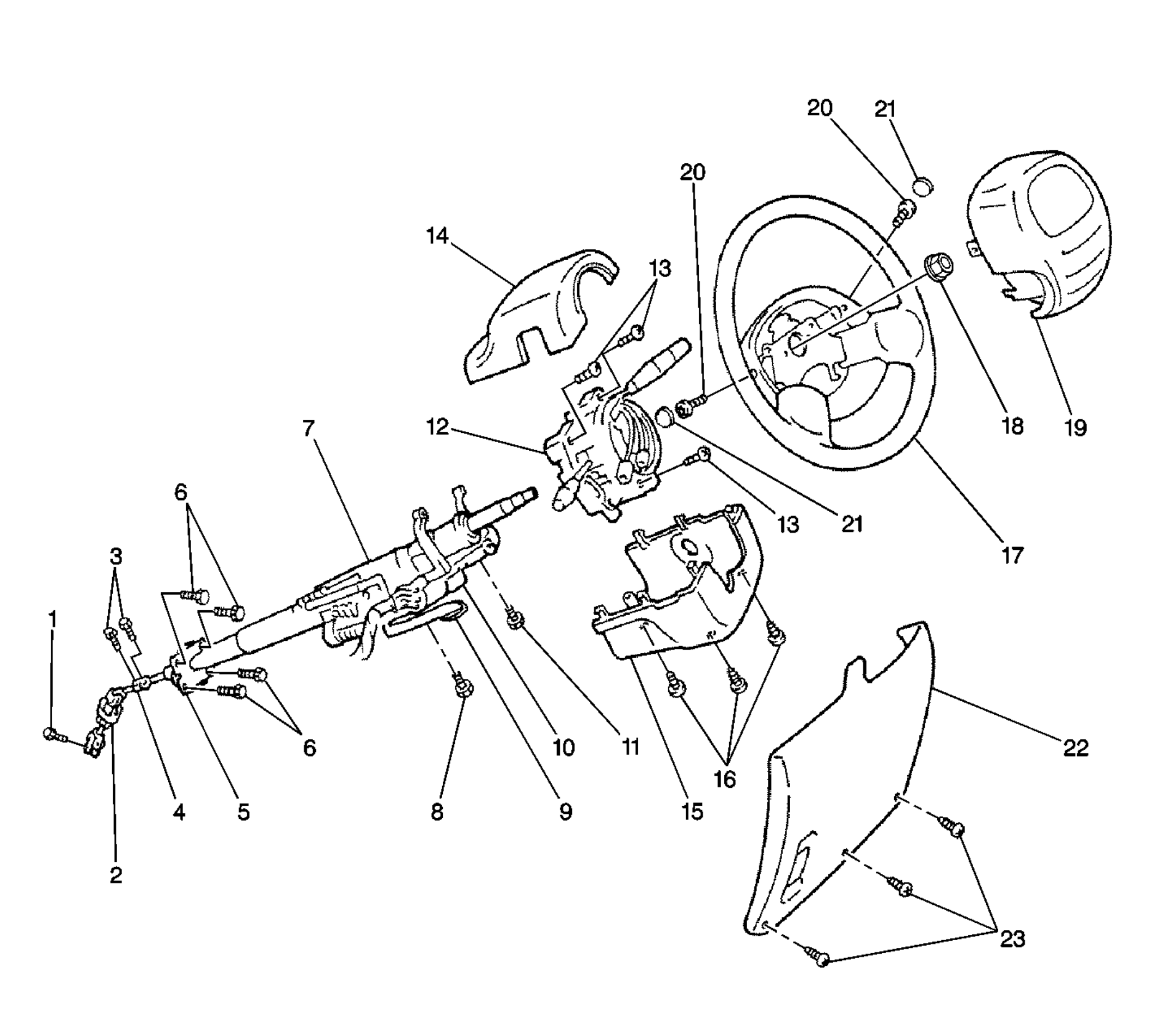

| 1 |
Steering Shaft Coupling Bolt |
| 2 |
Lower Steering Shaft |
| 3 |
Steering Shaft Coupling Bolts |
| 4 |
Steering Shaft Coupling |
| 5 |
Steering Shaft Seal |
| 6 |
Steering Shaft Seal Bolts |
| 6 |
Steering Shaft Seal Bolts |
| 7 |
Steering Column |
| 8 |
Steering Column Bracket Bolt |
| 9 |
Tilt Steering Column Release Lever |
| 10 |
Steering Column Lock and Ignition Switch Cylinder |
| 11 |
Steering Column Bracket Bolt |
| 12 |
Turn Signal and Headlamp and Windshield Wiper and Windshield Washer Switch with Levers and Inflatable Restraint Steering Wheel Module Coil |
| 13 |
Turn Signal Base Bolts |
| 13 |
Turn Signal Base Bolts |
| 14 |
Steering Column Upper Trim Cover |
| 15 |
Steering Column Lower Trim Cover |
| 16 |
Steering Column Lower Trim Cover Screws |
| 17 |
Steering Wheel |
| 18 |
Steering Wheel Nut |
| 19 |
Inflatable Restraint Steering Wheel Module |
| 20 |
Inflatable Restraint Steering Wheel Module Bolt |
| 20 |
Inflatable Restraint Steering Wheel Module Bolt |
| 21 |
Steering Wheel Opening Cover |
| 21 |
Steering Wheel Opening Cover |
| 22 |
IP Steering Column Opening Trim Plate |
| 23 |
IP Steering Column Opening Trim Plate Screws |
