Installation Procedure
- Install the control arm bushings if necessary. Refer to Lower Control Arm Bushings Replacement .

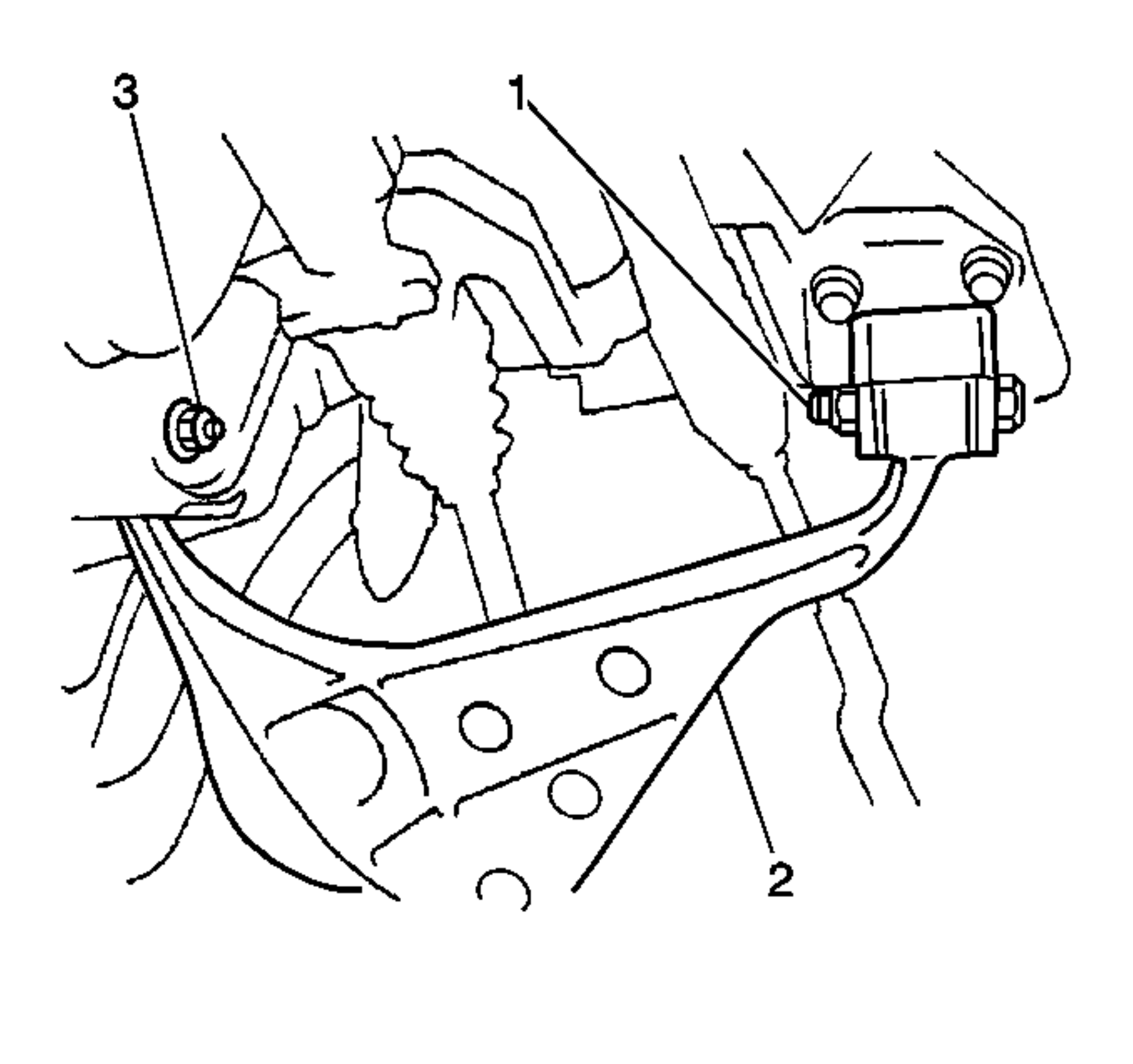

- Install the control arm (2) to the chassis.
- Install the control arm bolts and nuts (1,3).
- Install the coil spring. Refer to Front Coil Springs Replacement .
- Install the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation in Tires and Wheels.
- Lower the vehicle.
- Raise the vehicle on an alignment rack.
- Tighten the control arm bolts and nuts.
Tighten:
- Tighten the front bolt and nut (1) to 85 N.m (61.5 lb ft).
- Tighten the rear bolt and nut (3) to 127 N.m (92.0 lb ft).
- Lower the vehicle to the alignment measurement position.
- Measure the alignment. Adjust the alignment if necessary. Refer to Measuring Wheel Alignment in Wheel Alignment.
IMPORTANT:
New control arms do not include bushings. New bushings are available separately.
IMPORTANT:
Do not tighten the nuts or the bolts. The weight of the vehicle must be on the tire and wheel assemblies before tightening the nuts and the bolts.
NOTE:
Refer to Fastener Notice
in Cautions and Notices.
