Installation Procedure

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the bump stopper (3).
Tighten: Tighten the bump stopper to 50 N.m (36.5 lb ft).
Install the spring rubber seat (1).
Install the coil spring. Refer to Front Coil Springs Replacement .
Install the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation in Tires and Wheels.
Lower the vehicle.

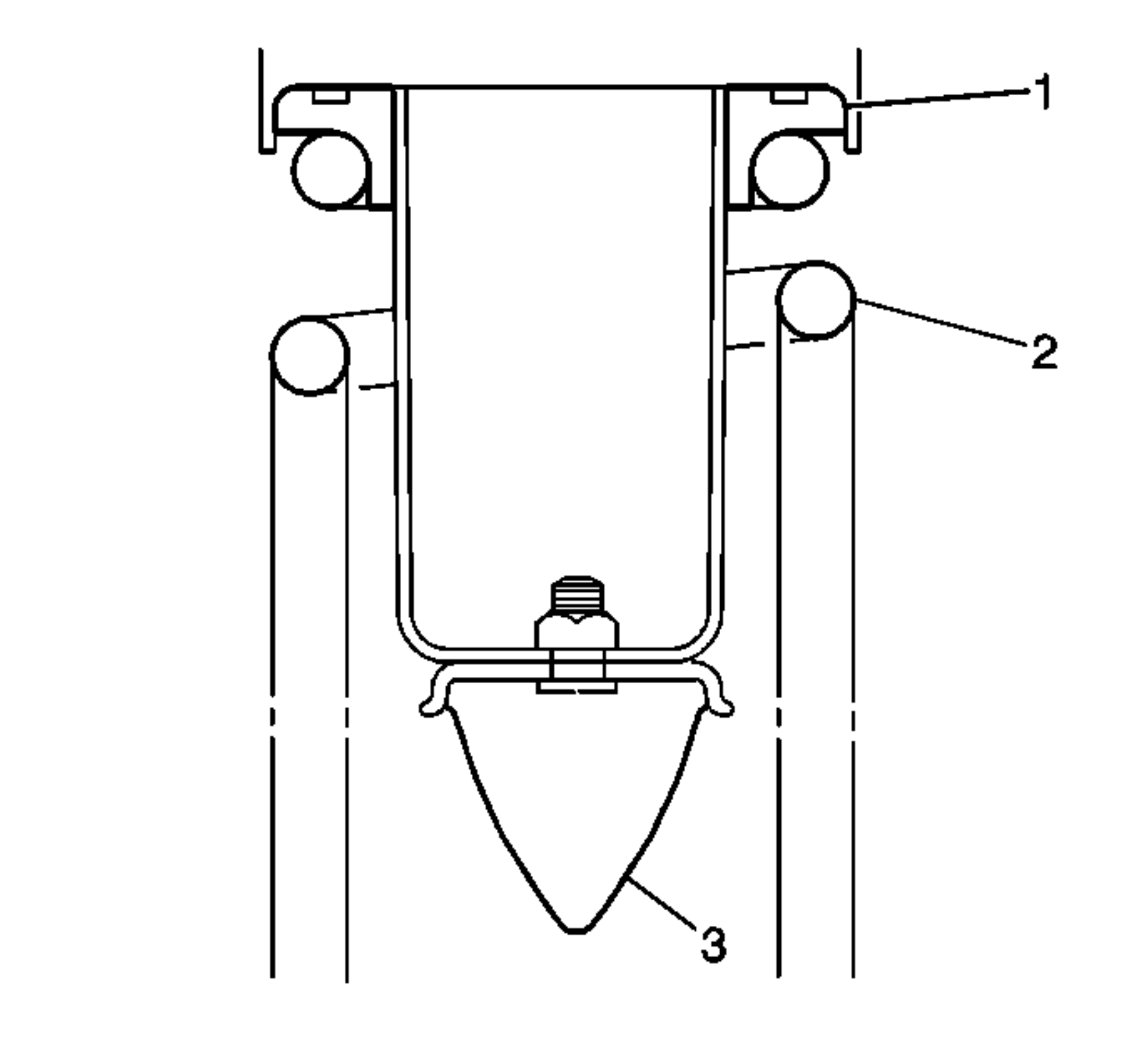

Fig 1: View Of Coil Spring, Rubber Seat & Bump Stopper

Courtesy of GENERAL MOTORS CORP.
