Stationary Windows Component Views

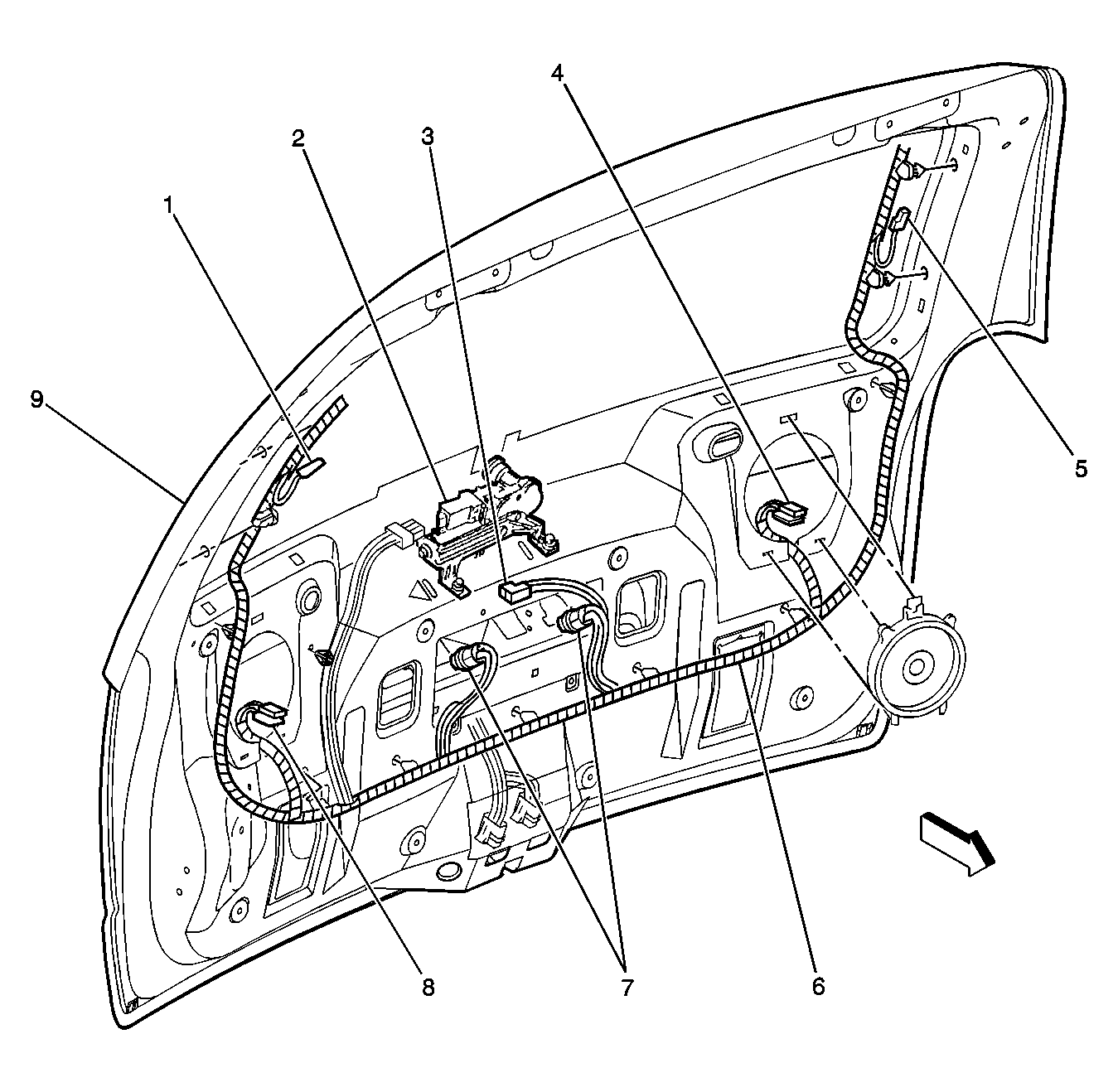

Fig 1: Liftgate Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Defogger Grid Connector C1
2	Window Wiper Motor-Rear
3	Connector to Liftgate Ajar Switch
4	Speaker-LR Liftgate
5	Rear Window Defogger Grid Connector C2
6	Liftgate Harness
7	License Lamps
8	Speaker-RR Liftgate
9	Liftgate
