Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

Important:  The battery cable and the ABS harness must be installed to the engine splash shield prior to installation of the engine splash shield to the body.

  1. Install the front wheel speed jumper harness to the left engine splash shield. Refer to WHEEL SPEED SENSOR REPLACEMENT - FRONT  in Antilock Brake System.
    Fig 1: Installing Door Trim Pad And Garnish Clip
    G01533282Courtesy of GENERAL MOTORS CORP.
  2. Install the front wheel speed jumper harness to the right engine splash shield. Refer to WHEEL SPEED SENSOR REPLACEMENT - FRONT  in Antilock Brake system.
  3. Connect the battery cable to the right engine splashshield. Refer to BATTERY NEGATIVE CABLE REPLACEMENT  in Battery.
  4. Align the engine splash shield to the vehicle engine compartment side rail.
  5. Install the push-in retainers to the engine compartment side rail.
  6. Install the push-in retainers to the front fender liner at the engine splash shield.

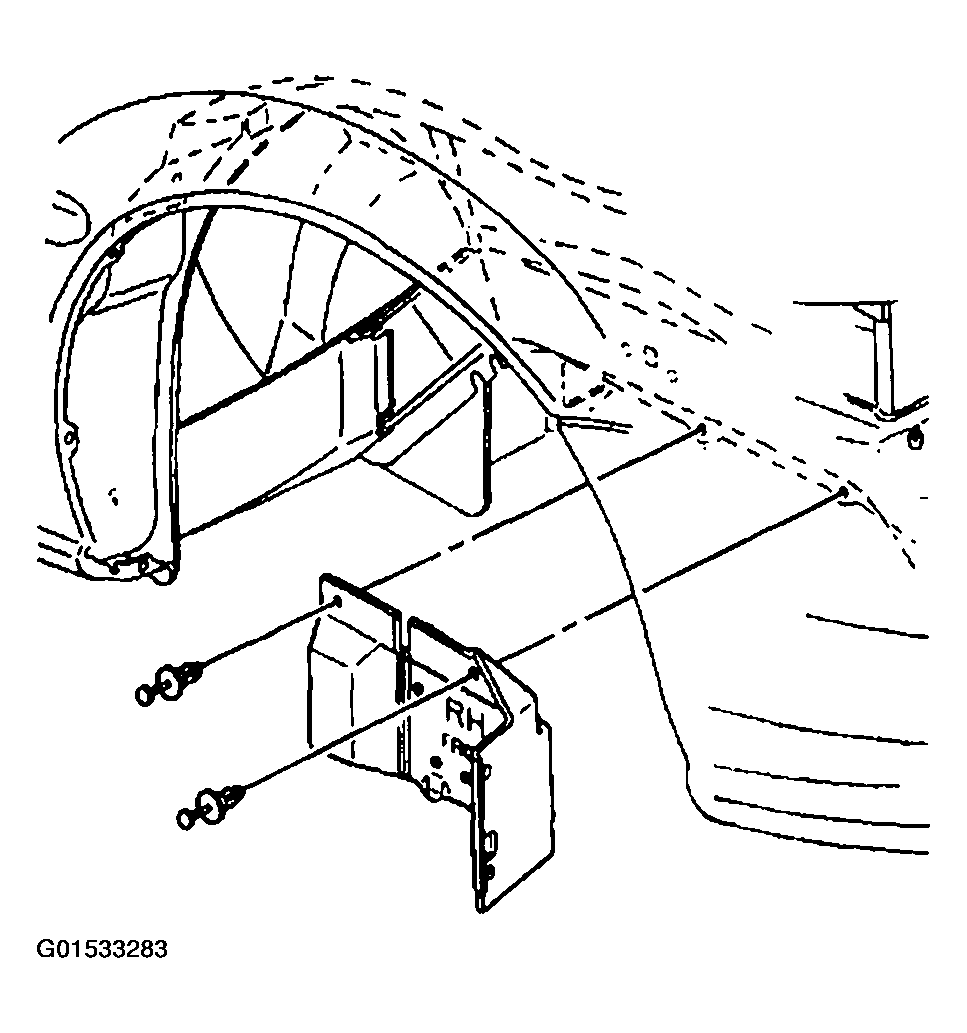

    Fig 2: Aligning Engine Splash Shield To Vehicle Engine Compartment Side Rail
    G01533283Courtesy of GENERAL MOTORS CORP.
