Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

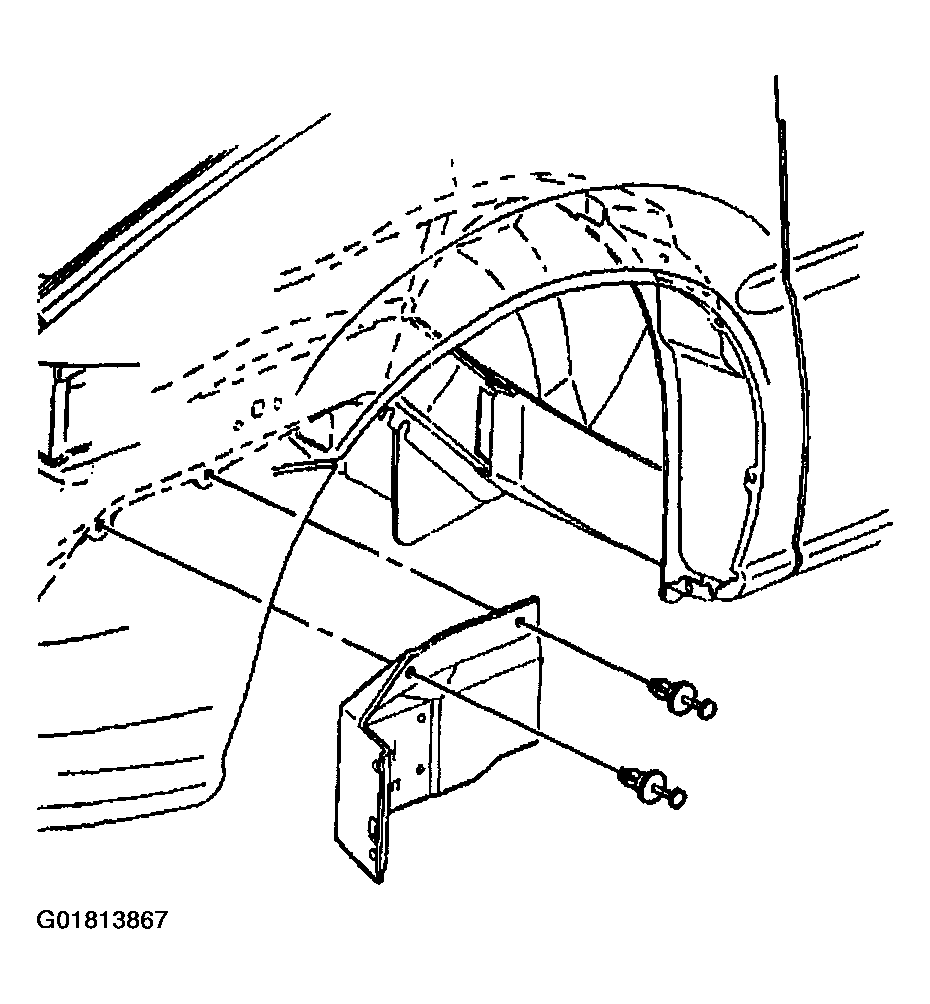

Fig 1: Installing Front Wheel Speed Jumper Harness & Left Engine Splash Shield
G01813867Courtesy of GENERAL MOTORS CORP.

Important:  The battery cable and the ABS harness must be installed to the engine splash shield prior to installation of the engine splash shield to the body.

  1. Install the front wheel speed jumper harness to the left engine splash shield. Refer to WHEEL SPEED SENSOR REPLACEMENT -- FRONT .
  2. Install the front wheel speed jumper harness to the right engine splash shield. Refer to WHEEL SPEED SENSOR REPLACEMENT -- FRONT .

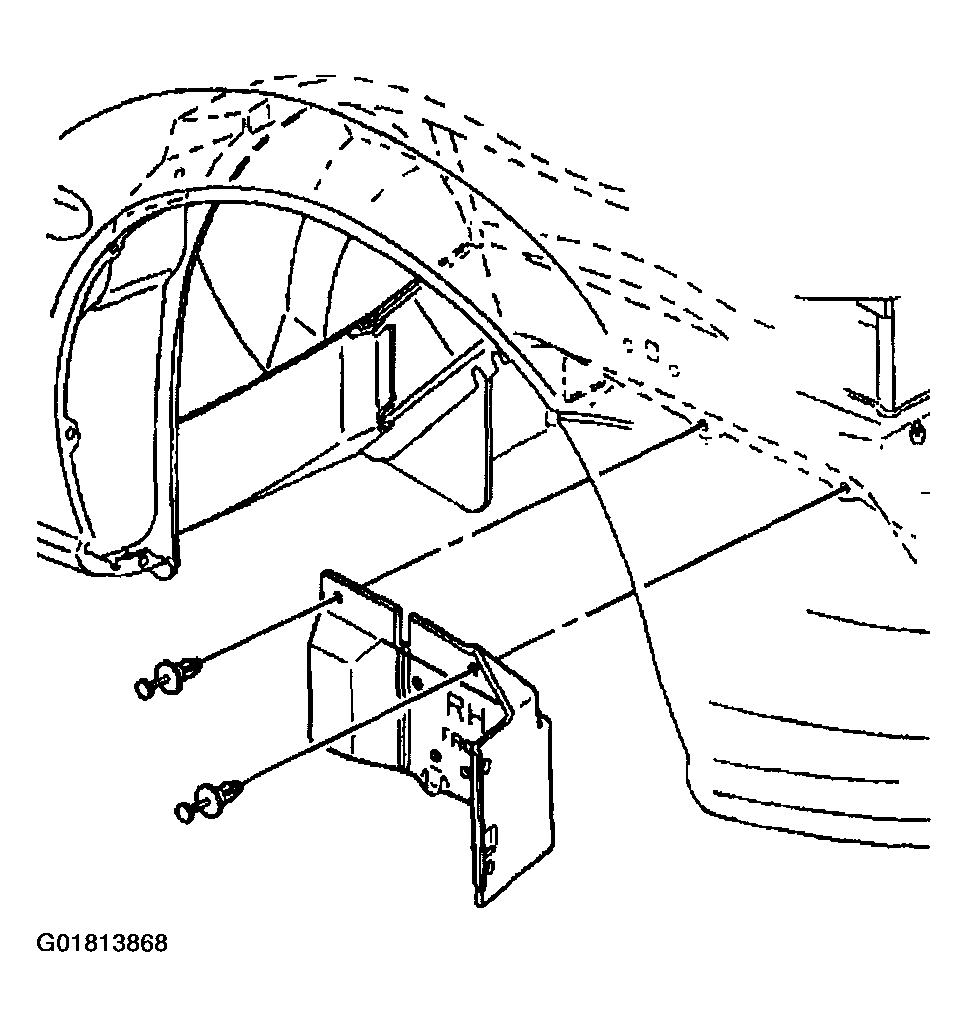

    Fig 2: Installing Front Wheel Speed Jumper Harness & Right Engine Splash Shield
    G01813868Courtesy of GENERAL MOTORS CORP.
  3. Align the engine splash shield to the vehicle engine compartment side rail
  4. Install the push-in retainers to the engine compartment side rail.
  5. Install the push-in retainers to the front fender liner at the engine splash shield.
