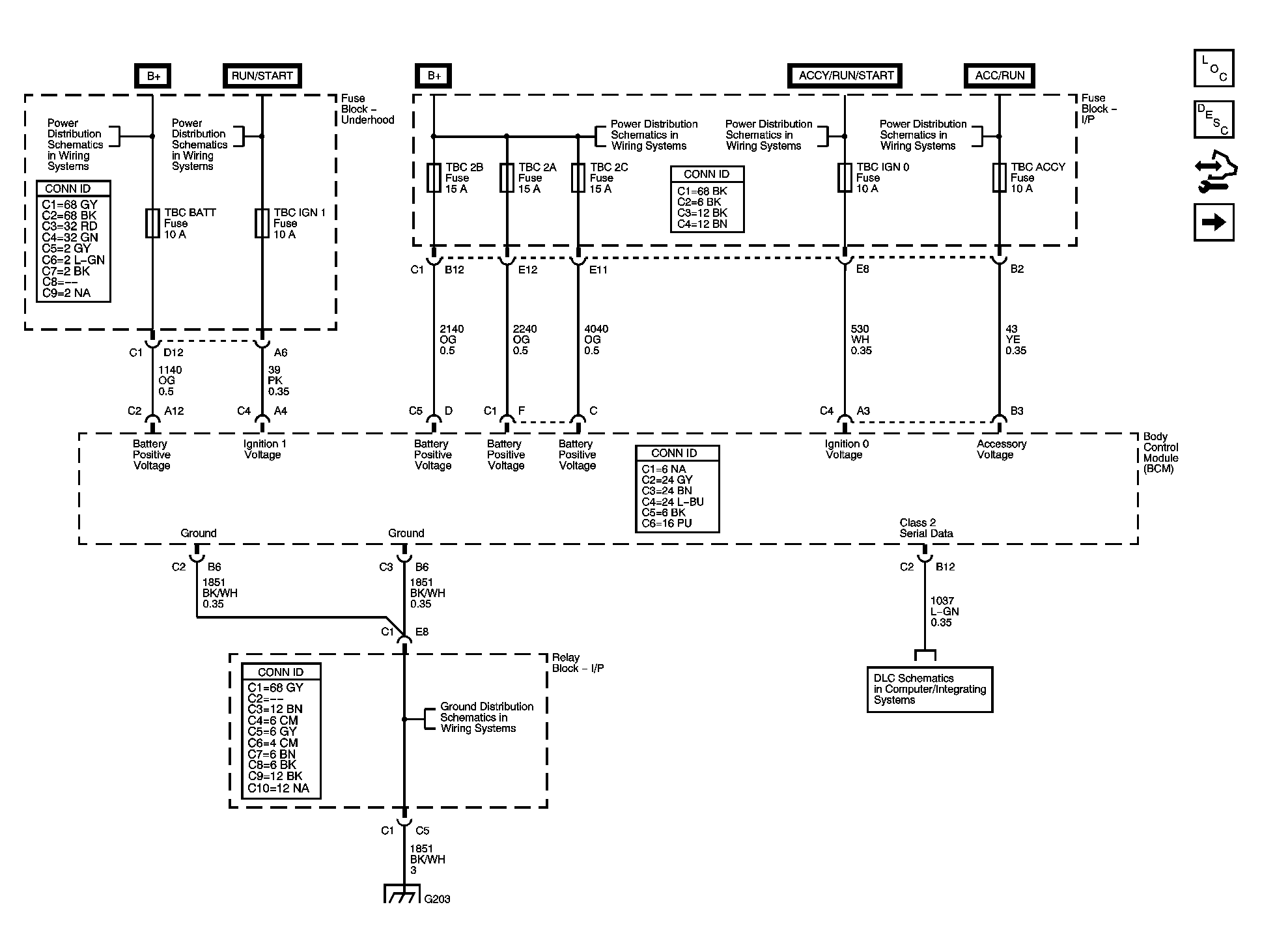

Fig 1: Power, Ground, and Serial Data Schematic
Courtesy of GENERAL MOTORS CORP.

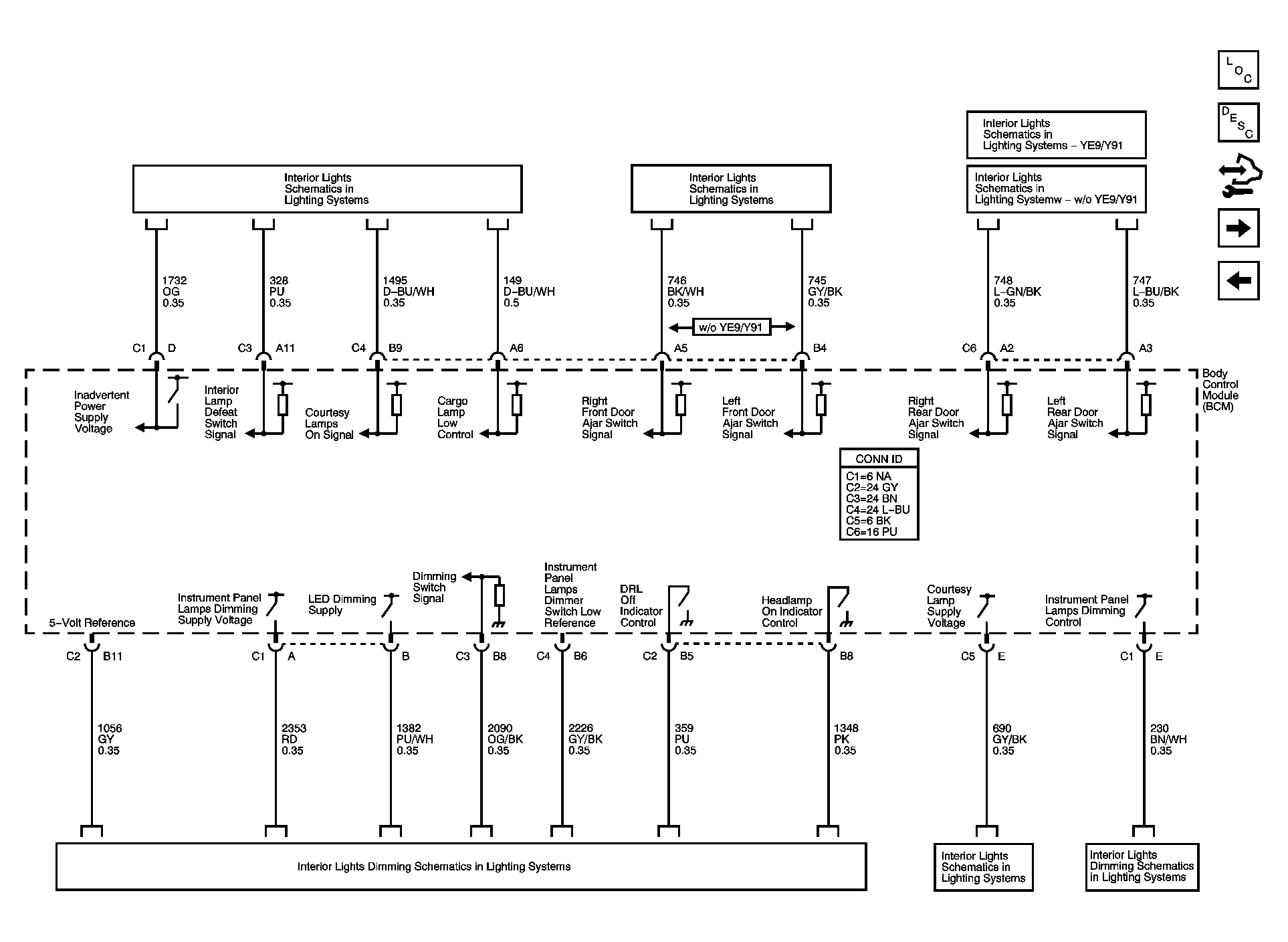

Fig 2: Interior Lights and Interior Lights Dimming References Schematic
Courtesy of GENERAL MOTORS CORP.

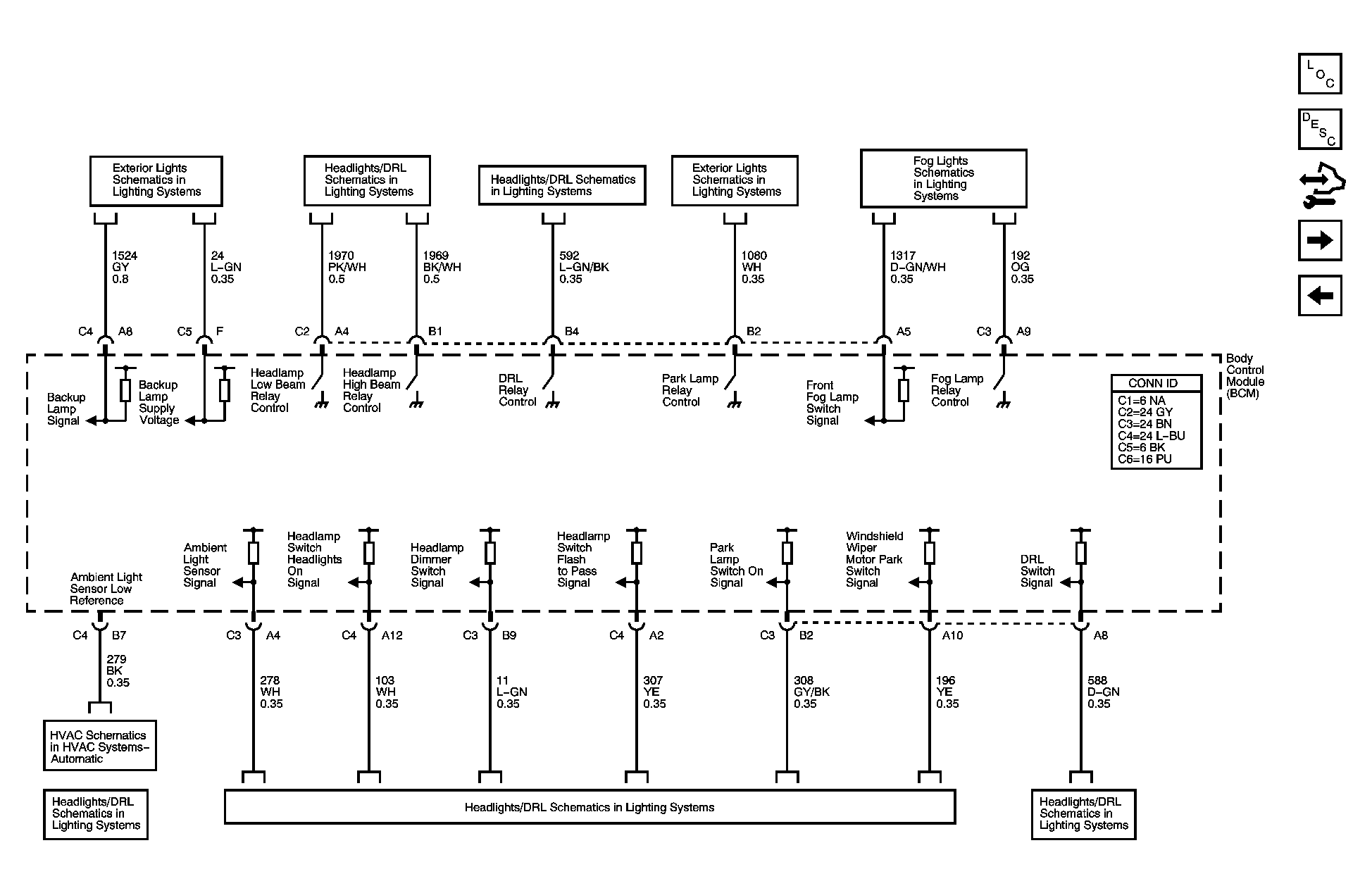

Fig 3: Headlights and Exterior Lights References Schematic
Courtesy of GENERAL MOTORS CORP.

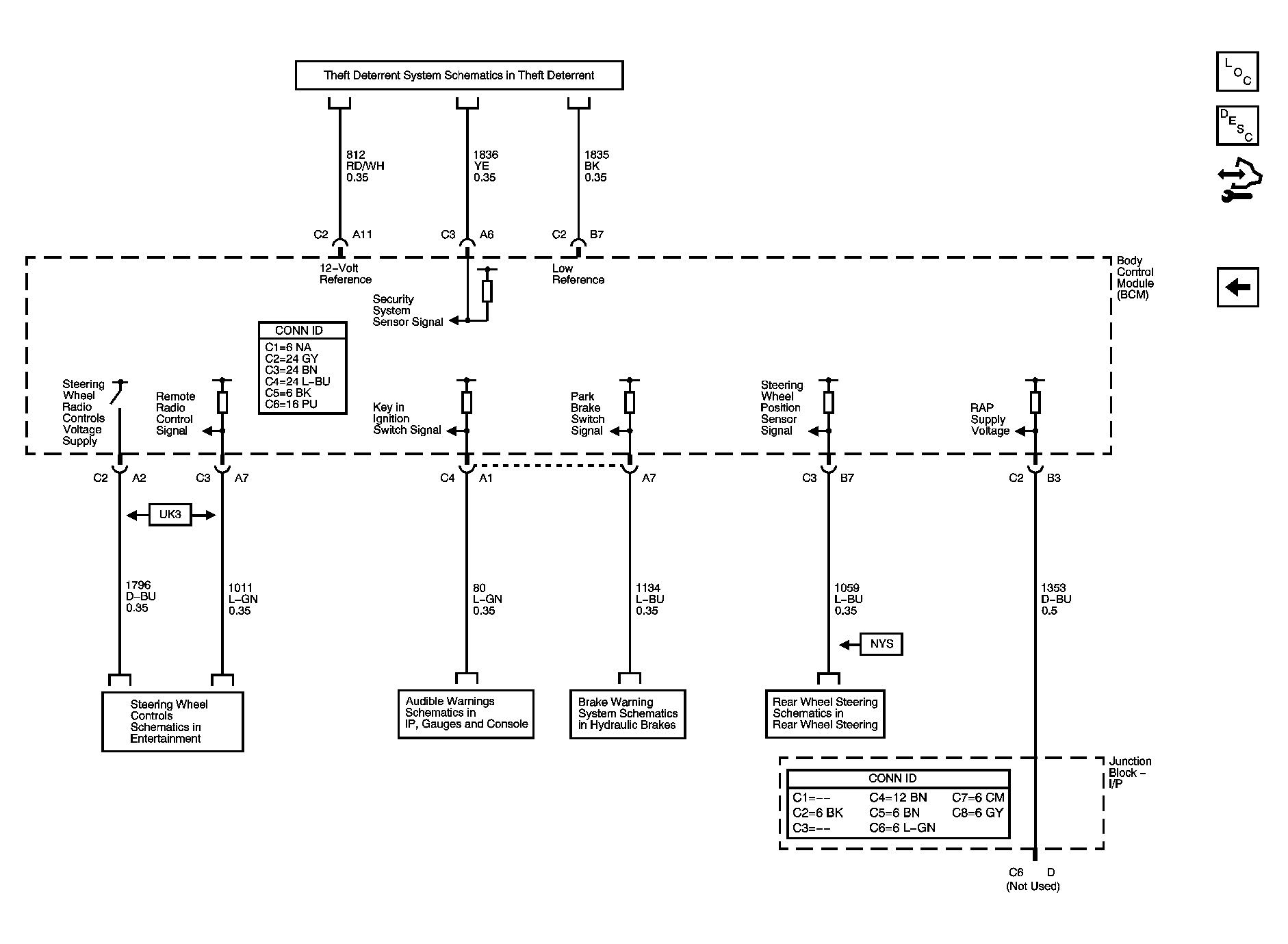

Fig 4: Controlled/Monitored Subsystem References Schematic - 1 of 2
Courtesy of GENERAL MOTORS CORP.

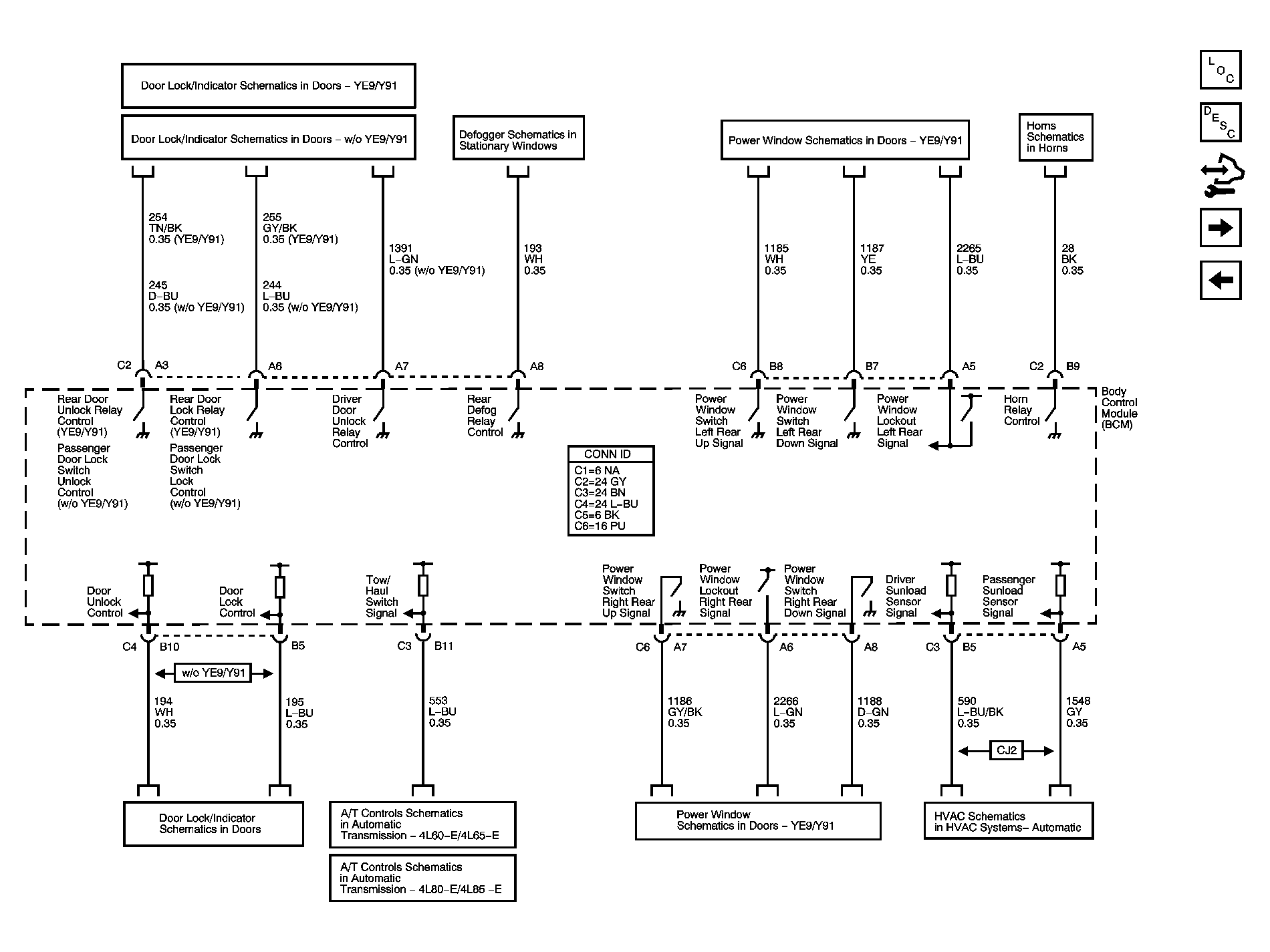

Fig 5: Controlled/Monitored Subsystem References Schematic - 2 of 2
