Removal Procedure

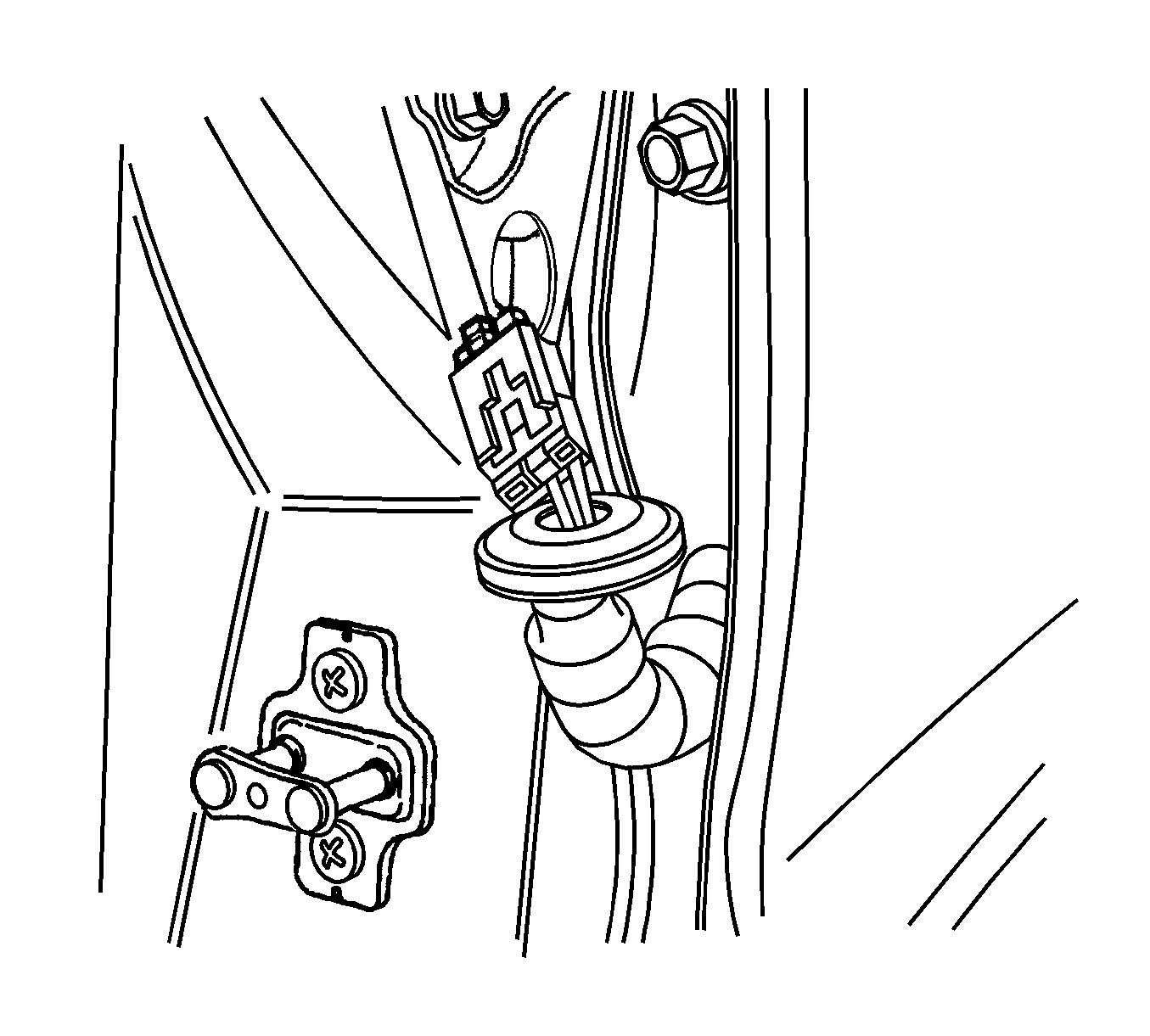

    Fig 1: View of Door Hold Open Link
    GM1248293Courtesy of GENERAL MOTORS CORP.
  1. Remove the door trim panel. Refer to Trim Panel Replacement - Front Door in Interior Trim.
  2. Reposition the door seal trim.
  3. Remove the bolts on the door and on the body.
  4. Remove the door hold open link.
