Power Window Schematics

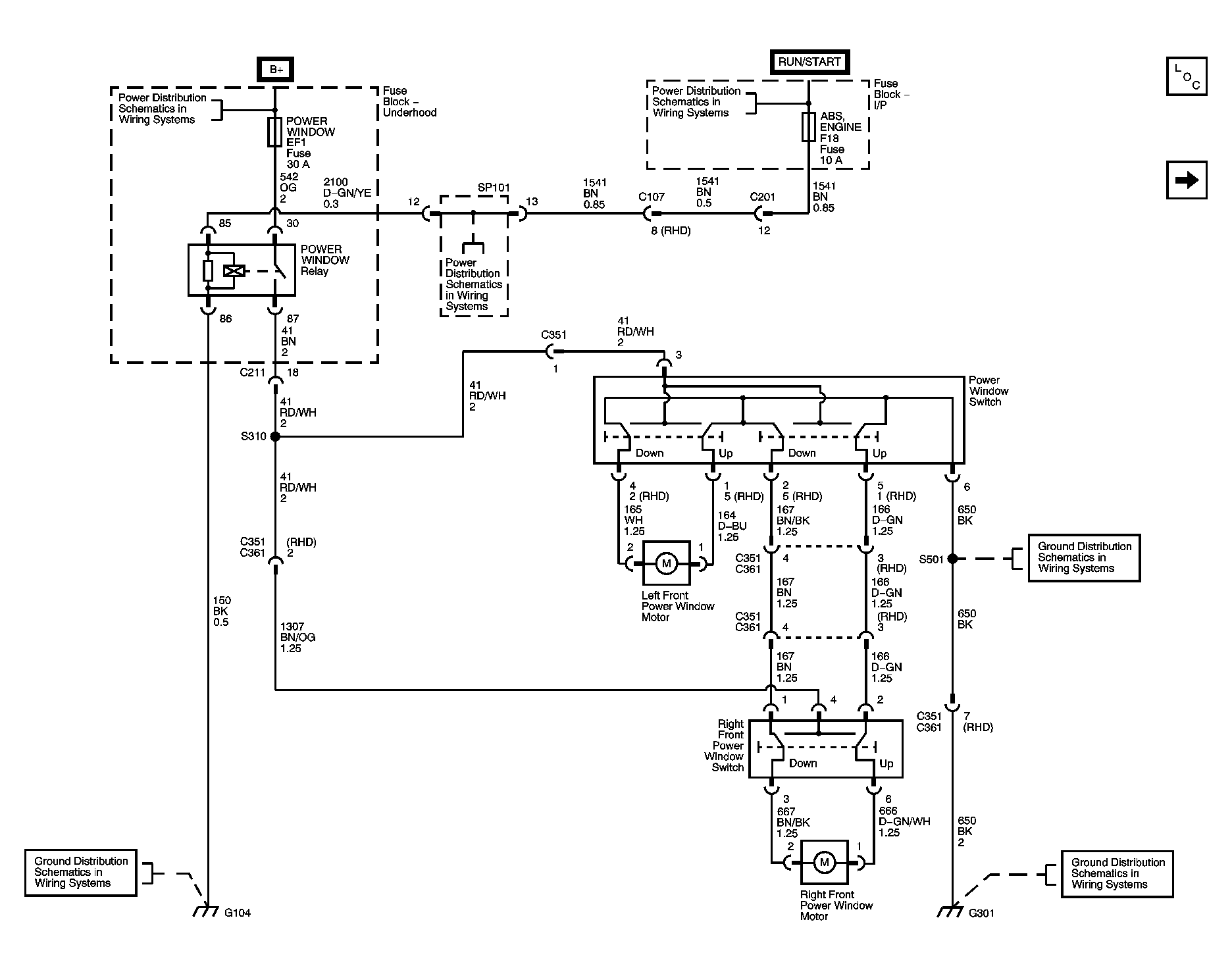

Fig 1: Front Only Schematics
GM1257924Courtesy of GENERAL MOTORS CORP.

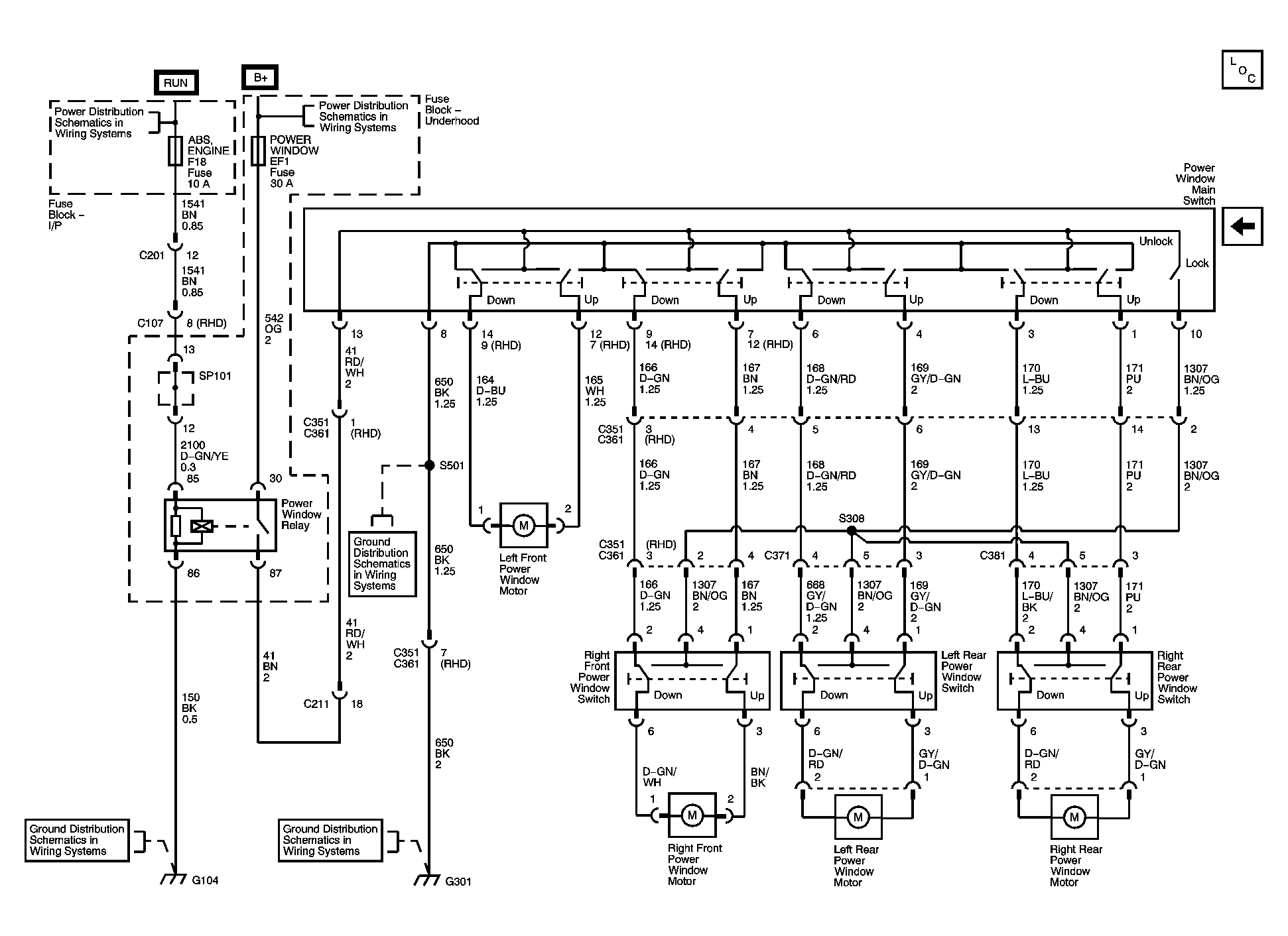

Fig 2: Front and Rear Schematics
GM1257925Courtesy of GENERAL MOTORS CORP.
