Cooling System Component Views
WARNING: This page is about a different car, the 2004 Suzuki Swift + and 2004 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| 1 | Bolt |
| 2 | Radiator Bracket |
| 3 | Radiator Bumper |
| 4 | Radiator |
| 5 | Drain Cock |
| 6 | Spring Clamp |
| 7 | Upper Radiator Hose |
| 8 | Cooling Fan |
| 9 | Bolt |
| Callout | Component Name |
|---|---|
| 1 | Bolt |
| 2 | Radiator Bumper |
| 3 | Radiator Bracket Bolt |
| 4 | Radiator Bracket |
| 5 | Radiator |
| 6 | Drain Cock |
| 7 | Upper Radiator Hose |
| 8 | Cooling Fan (Main) |
| 9 | Cooling Fan (Auxiliary) |

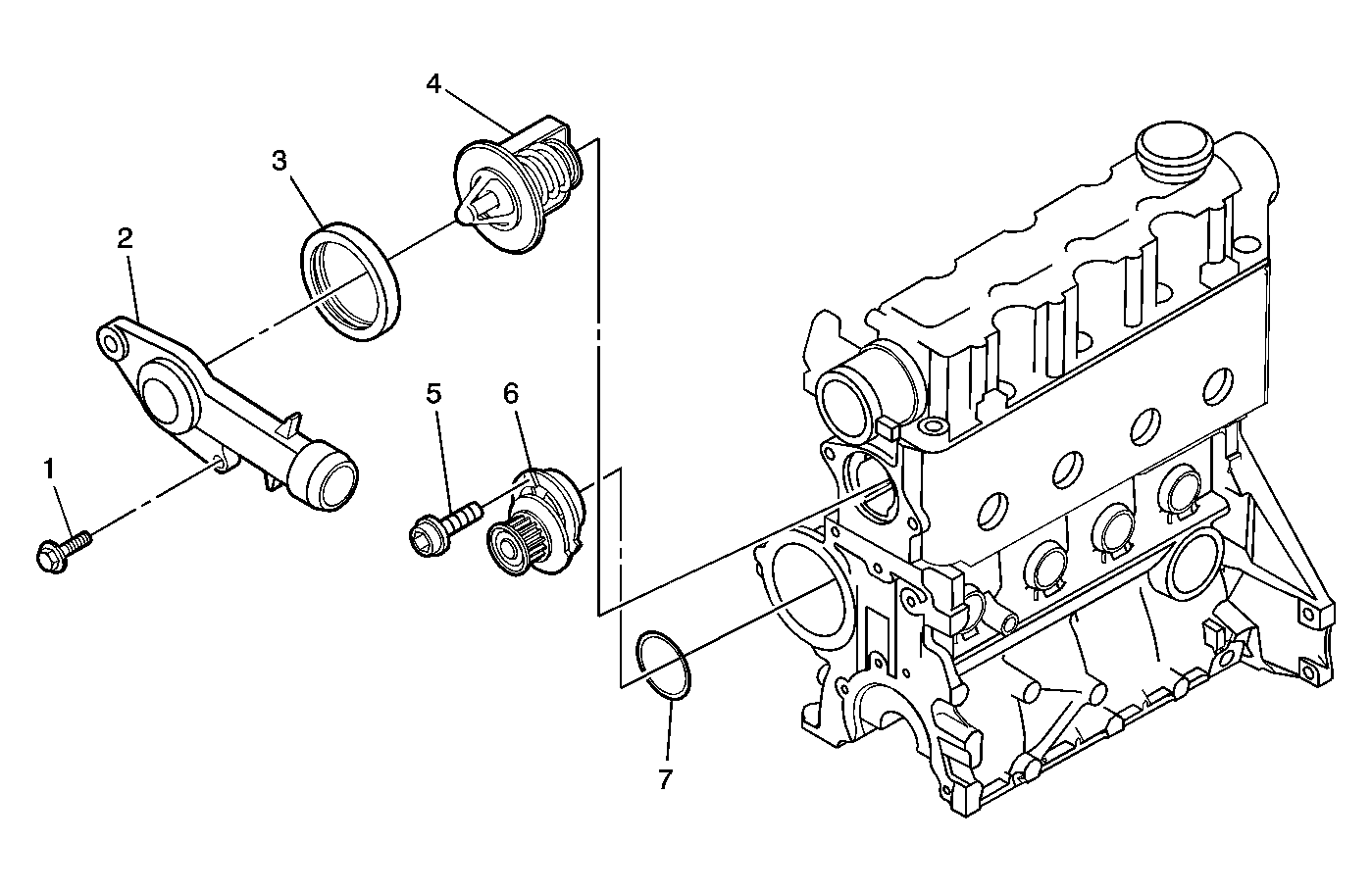

| Callout | Component Name |
|---|---|
| 1 | Thermostat Housing Bolt |
| 2 | Thermostat Housing |
| 3 | Seal Ring |
| 4 | Thermostat |
| 5 | Coolant Pump Mounting Bolts |
| 6 | Coolant Pump |
| 7 | O-Ring |
| Callout | Component Name |
|---|---|
| 1 | Coolant Pump Mounting Bolts |
| 2 | Coolant Pump |
| 3 | O-Ring |
| 4 | Seal Ring |
| 5 | Thermostat Housing Assembly |
| 6 | Thermostat Housing Bolt |

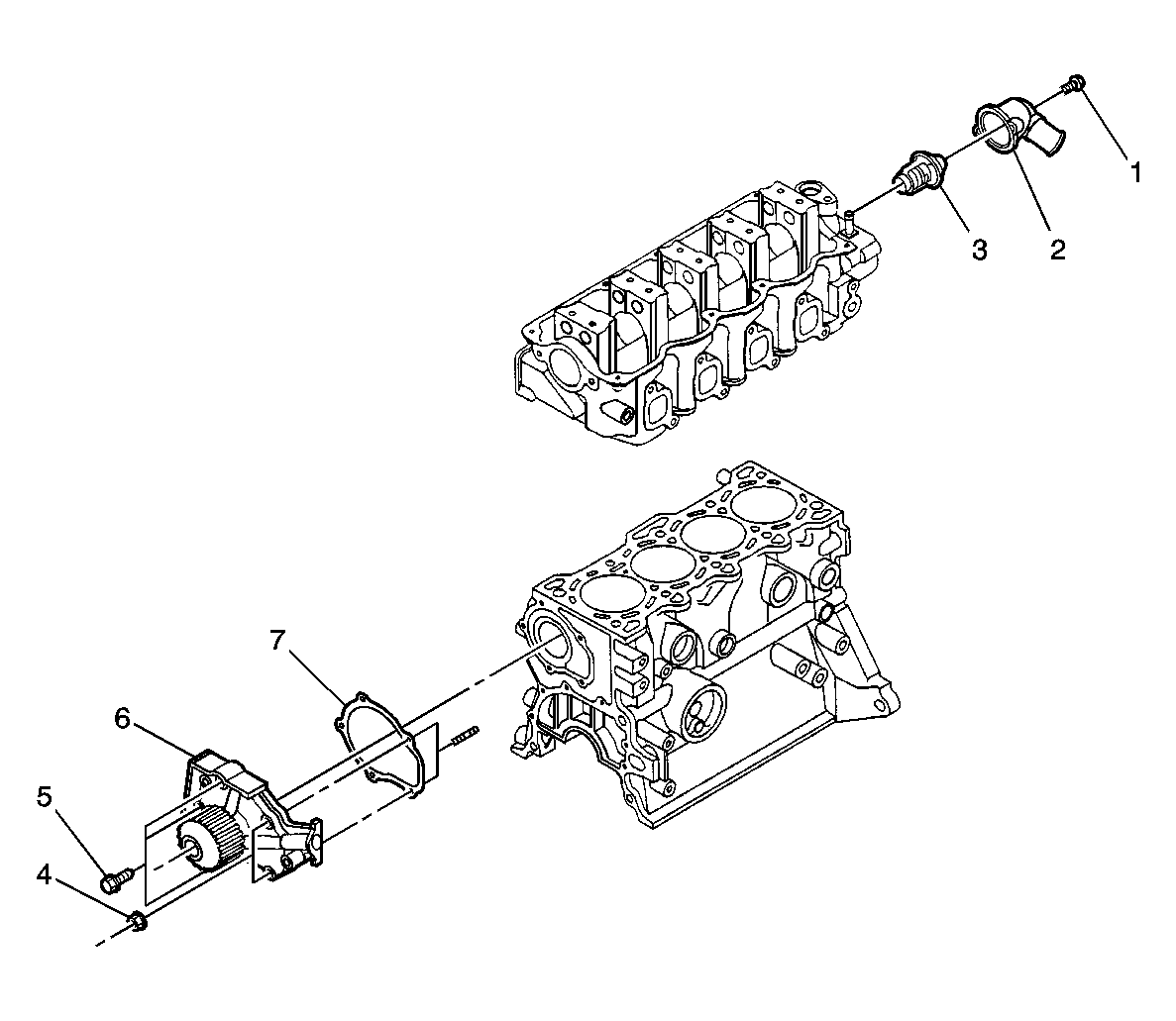

| Callout | Component Name |
|---|---|
| 1 | Thermostat Housing Bolt |
| 2 | Thermostat Housing |
| 3 | Thermostat |
| 4 | Coolant Pump Mounting Nut |
| 5 | Coolant Pump Mounting Bolt |
| 6 | Coolant Pump |
| 7 | Coolant Pump Gasket |
