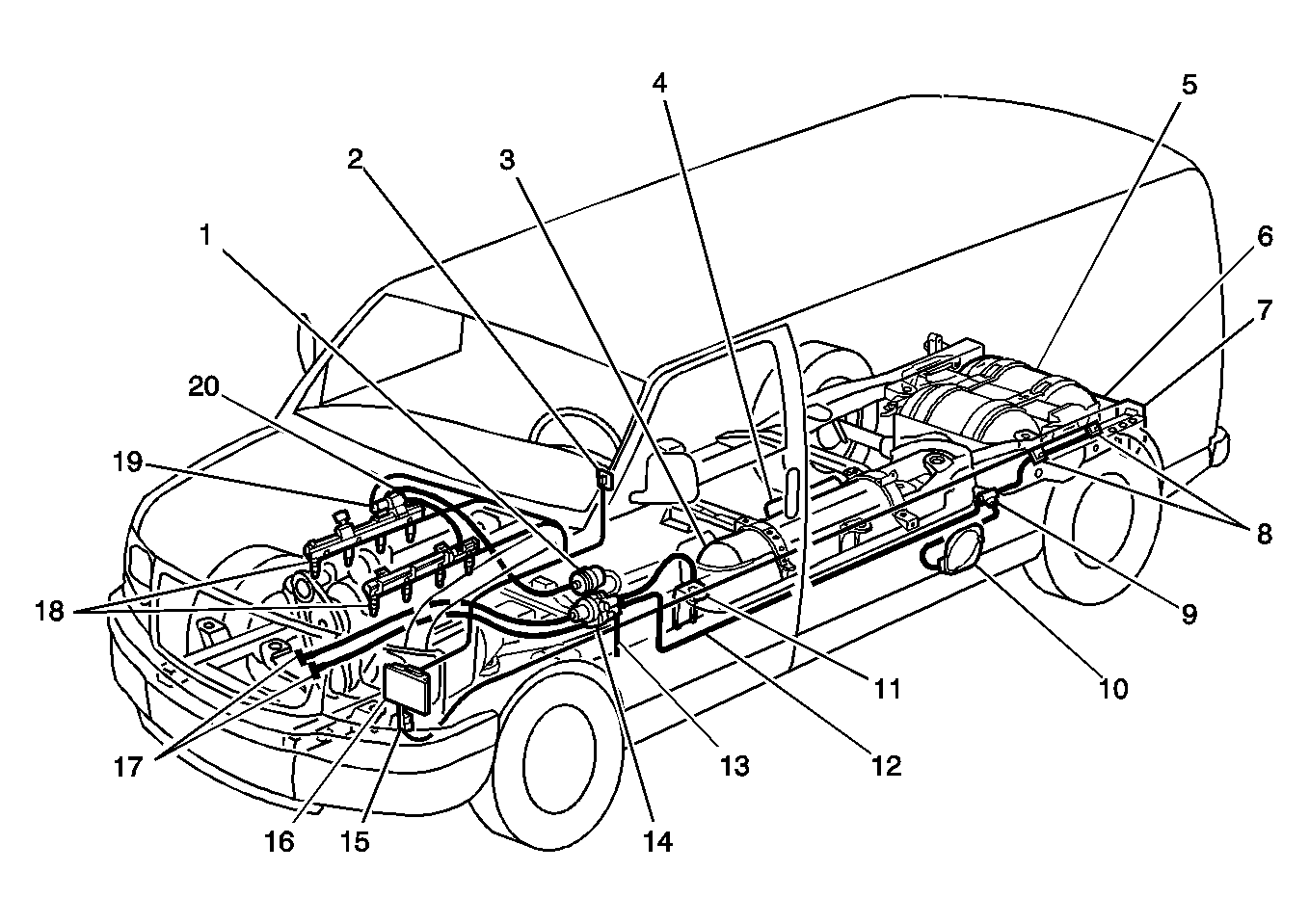

| 1 |
In-line CNG Fuel Filter |
| 2 |
Fuel Gage Select Switch and Fuel Indicator Lamp |
| 3 |
Mid-Frame CNG Fuel Tank (KL8) |
| 4 |
Mid-Frame CNG Tank Cover (KL8) |
| 5 |
Rear CNG Fuel Tanks |
| 6 |
Rear CNG Fuel Tank Cover |
| 7 |
Rear CNG Fuel Tank Mounting Frame |
| 8 |
High Pressure Lock-off Solenoids |
| 9 |
Check Valve and Tee Assembly |
| 10 |
Fill Valve |
| 11 |
High Pressure Lock-off Solenoid |
| 12 |
High Pressure CNG Fuel Line |
| 13 |
Pressure Relief Device |
| 14 |
High Pressure Regulator |
| 15 |
Low Pressure Lock-off Solenoid Relay |
| 16 |
Fuel Injector Control Module (FICM) |
| 17 |
Coolant Hose Tee Fittings |
| 18 |
CNG Fuel Rails |
| 19 |
Low Pressure Lock-off Solenoid |
| 20 |
Fuel Rail Pressure (FRP) Sensor |
