Engine Controls Schematics

WARNING: This page is about a different variant/trim than selected.

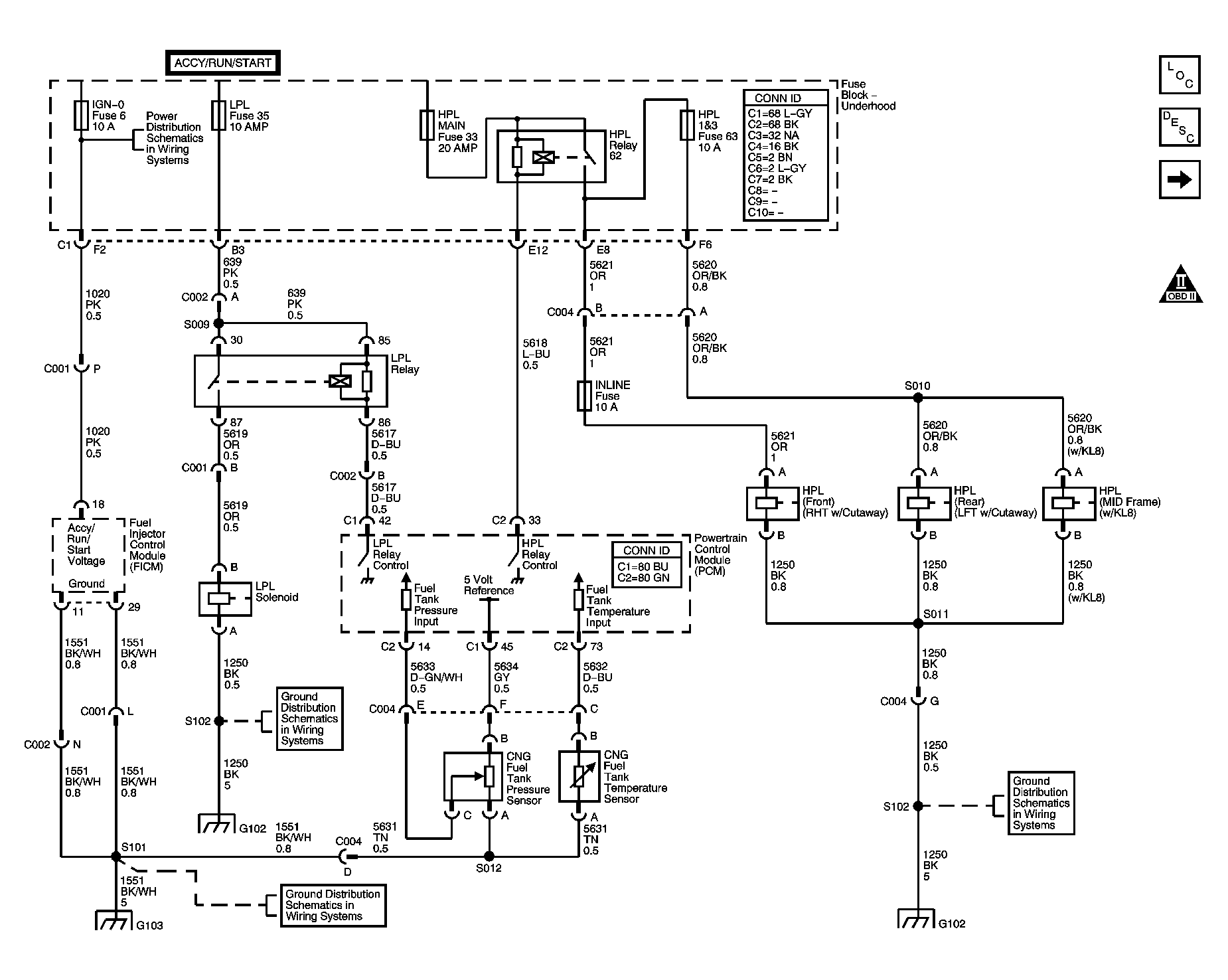

Fig 1: Power, Ground, Solenoids - Fuel, Sensors - Tank Schematics

Courtesy of GENERAL MOTORS CORP.

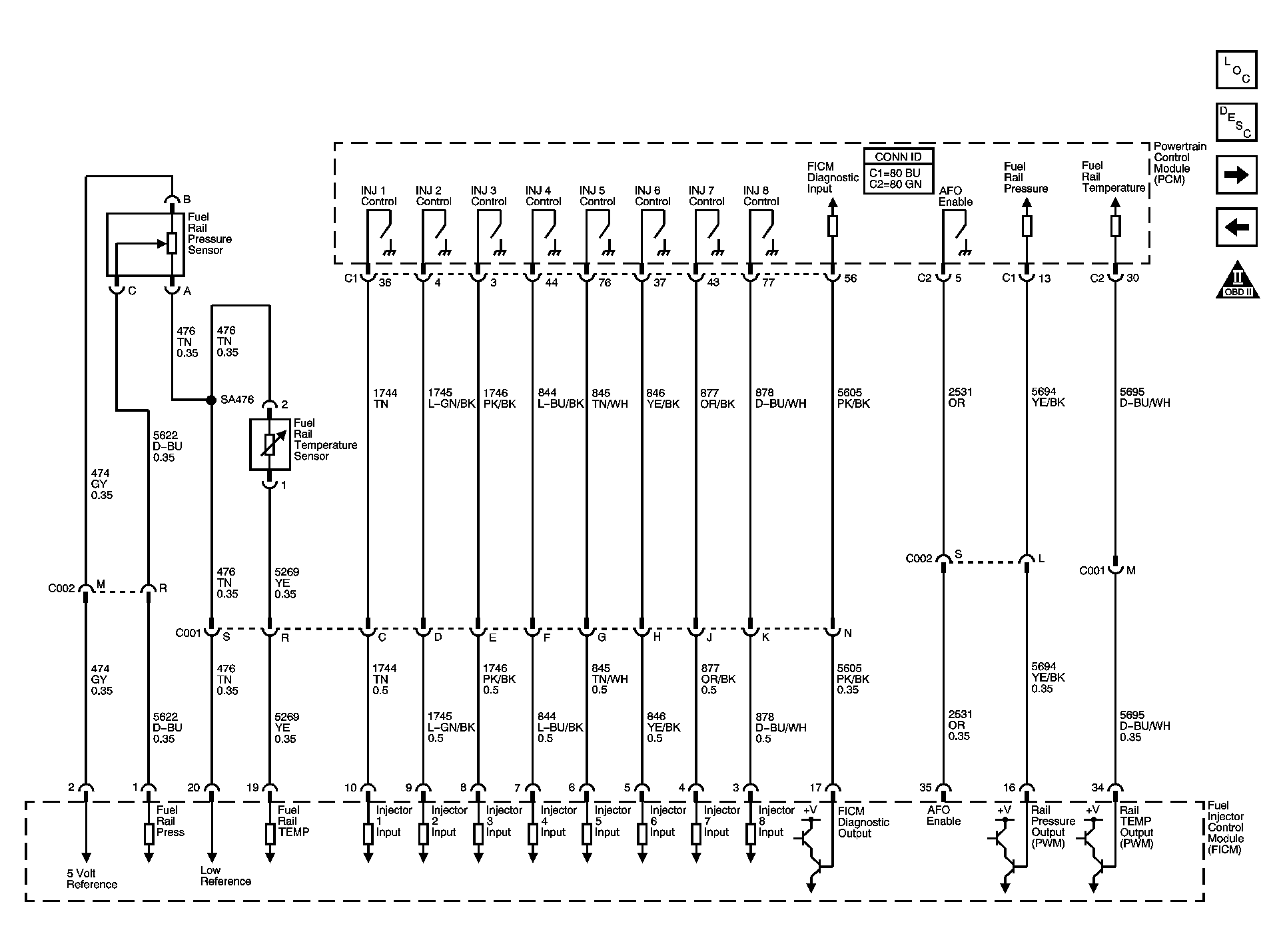

Fig 2: Sensors - Rail, Injector Signal Schematics

Courtesy of GENERAL MOTORS CORP.

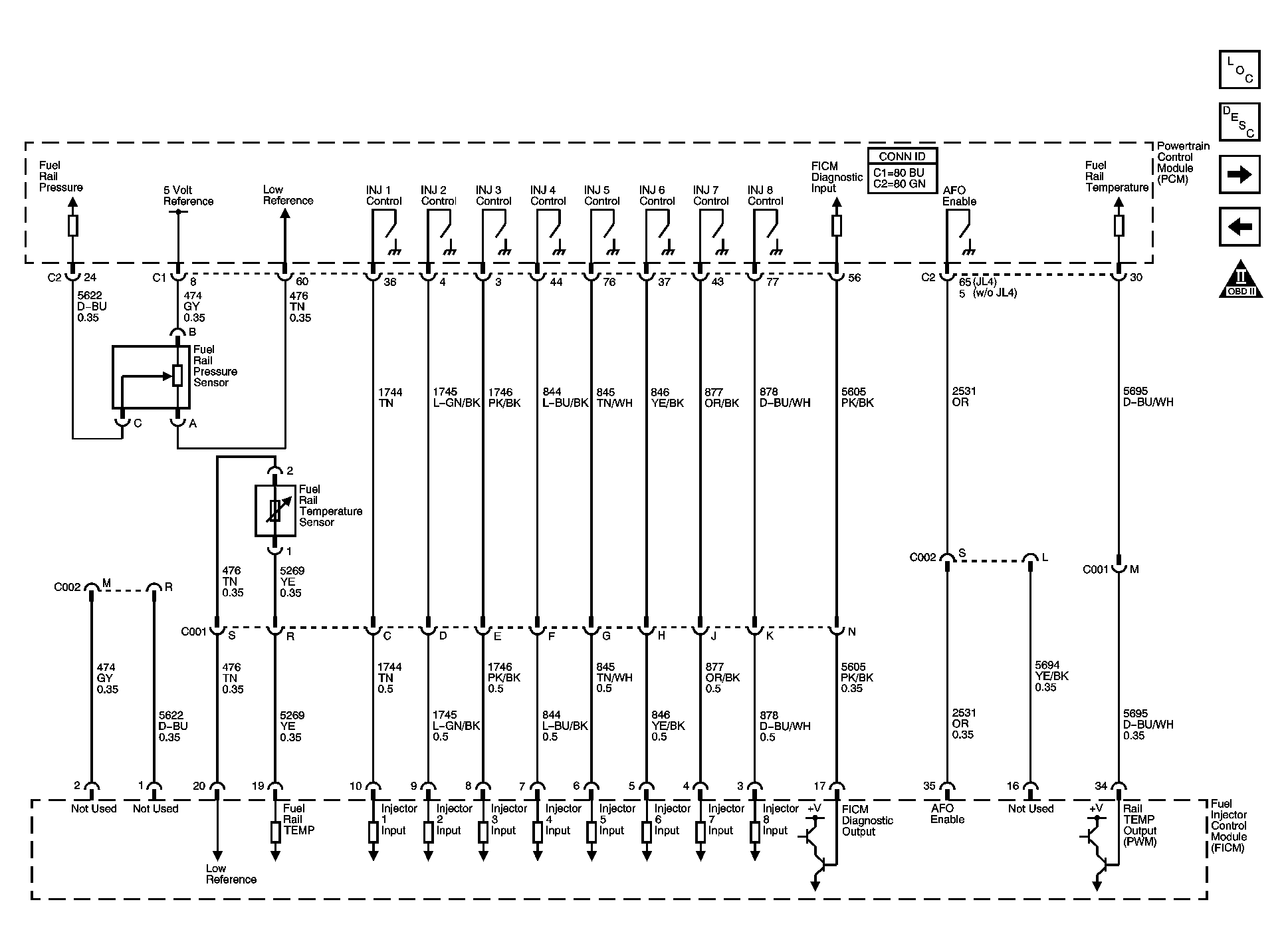

Fig 3: Sensors - Rail, Injector Signal (JL4) Schematics

Courtesy of GENERAL MOTORS CORP.

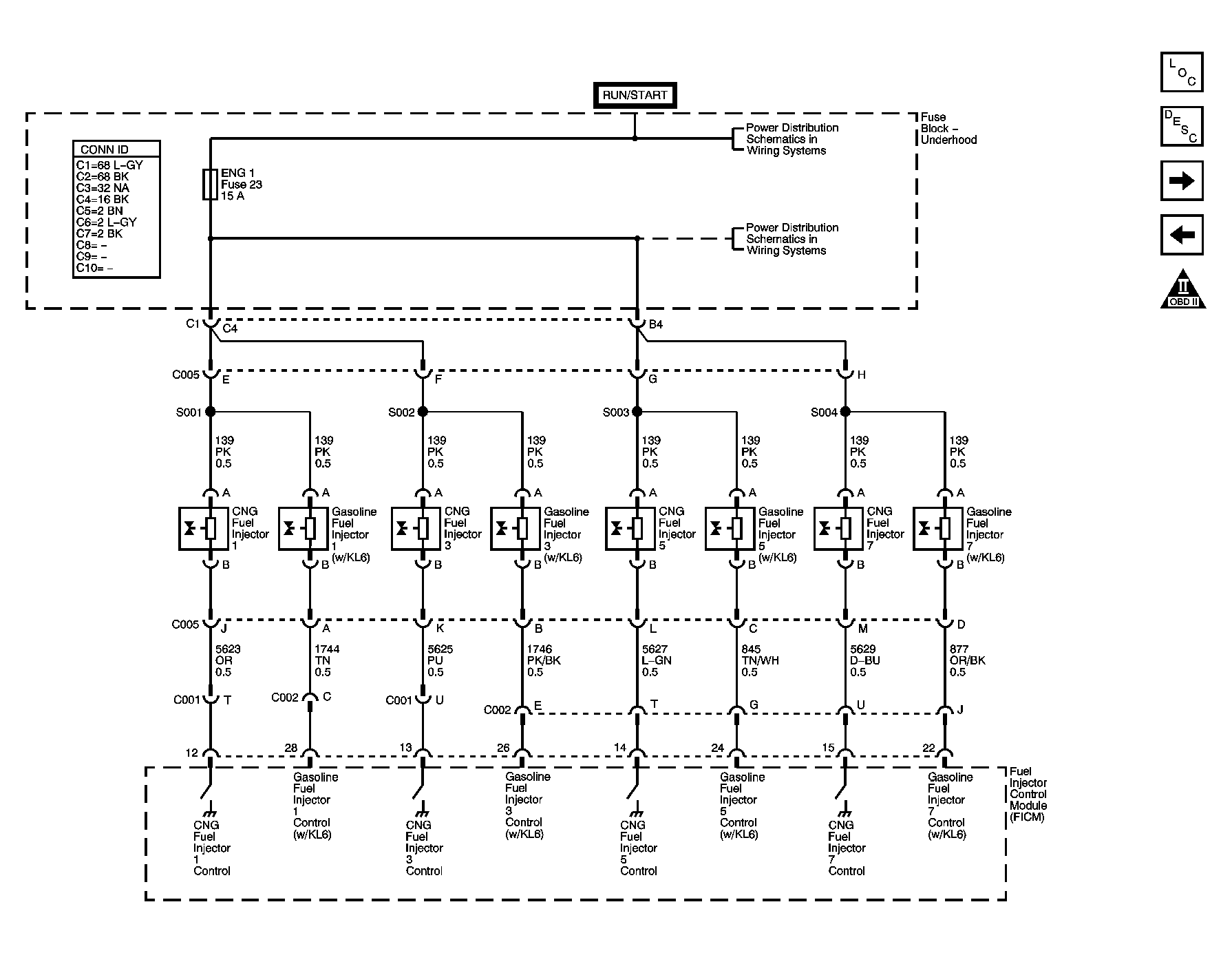

Fig 4: Injector Control - Odd Bank Schematics

Courtesy of GENERAL MOTORS CORP.

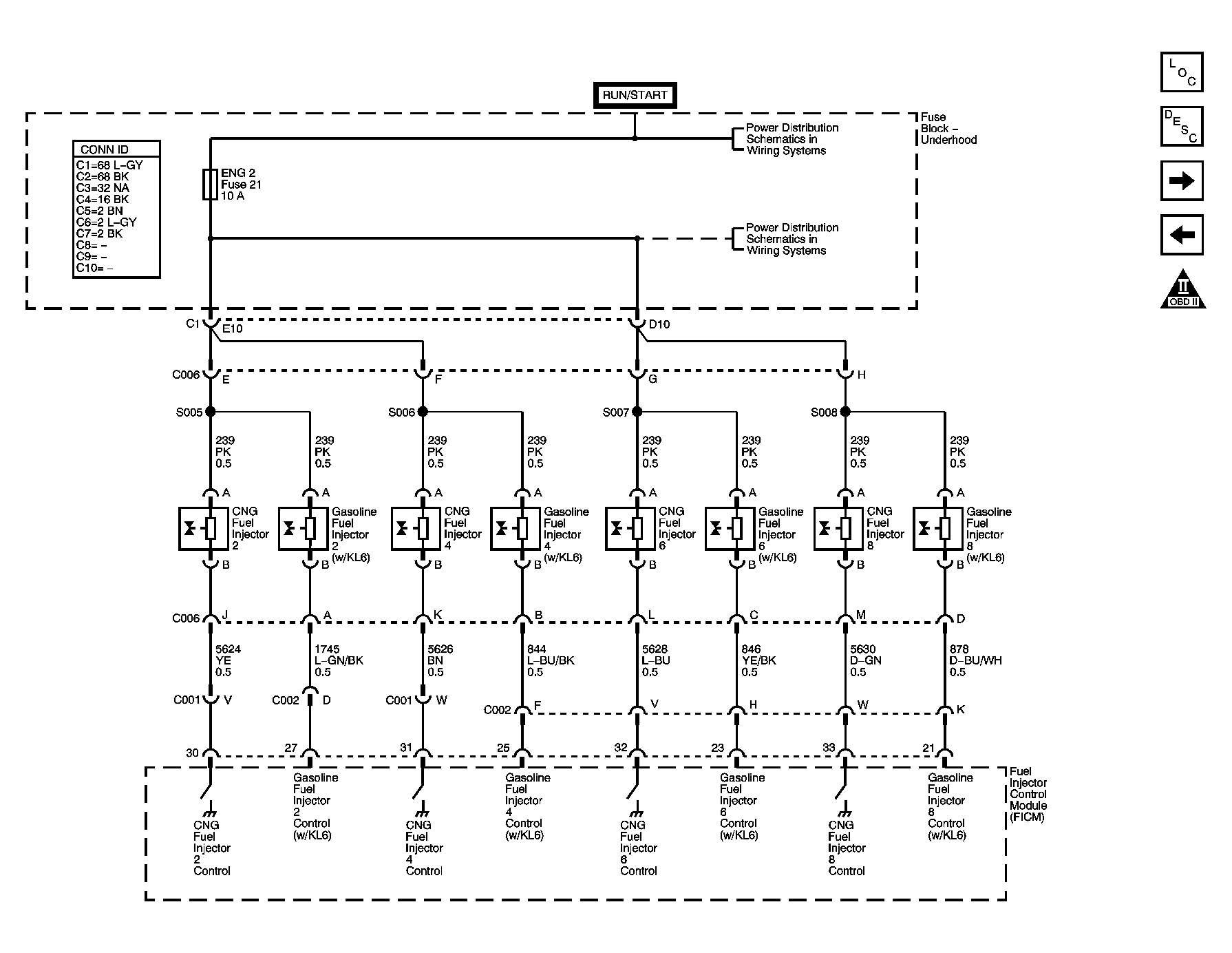

Fig 5: Injector Control - Even Bank Schematics

Courtesy of GENERAL MOTORS CORP.

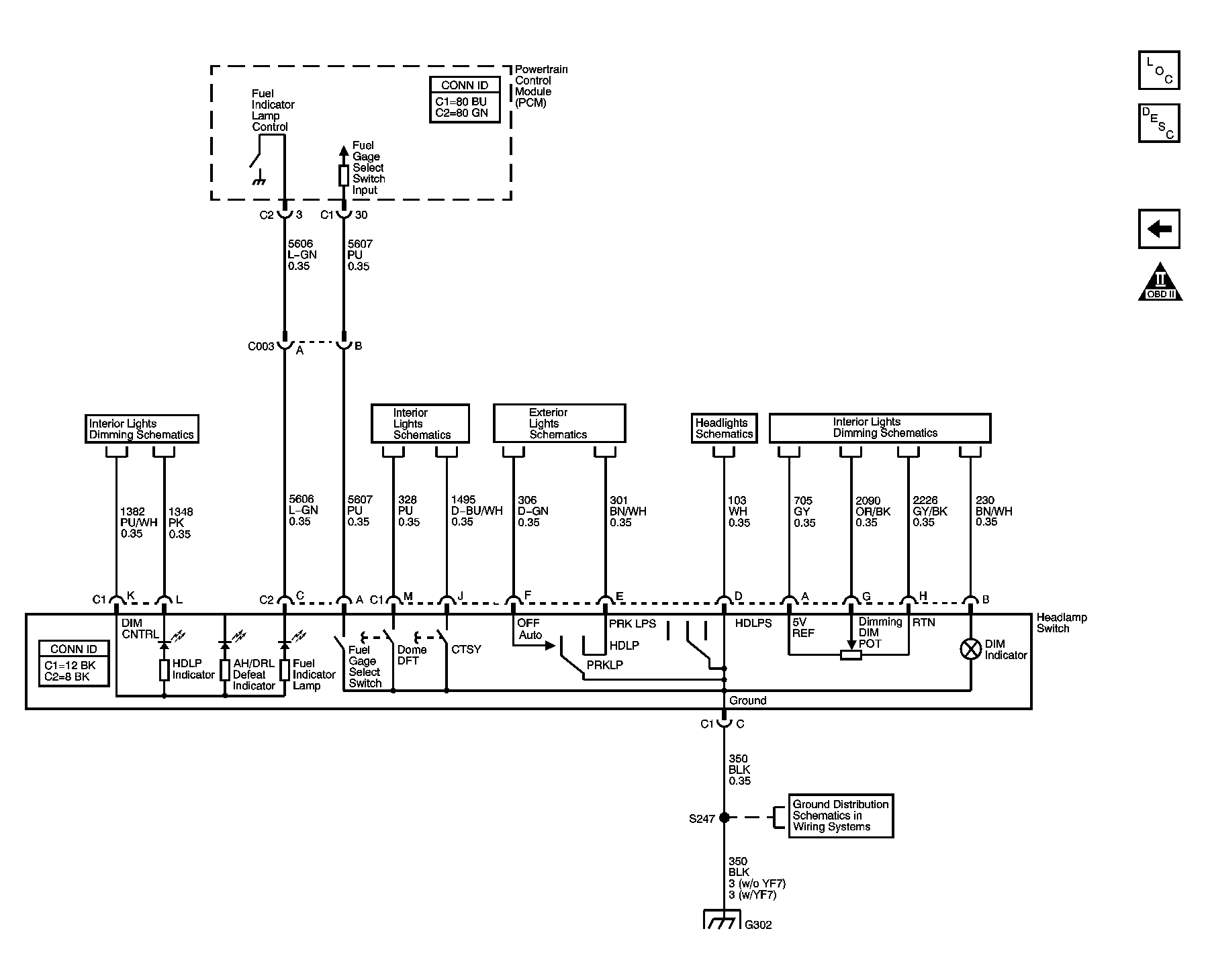

Fig 6: Fuel Gauge Select Switch, Fuel Indicator Lamp Schematics

Courtesy of GENERAL MOTORS CORP.
