Removal Procedure

  1. Place the rear door window assembly to the down position.
  2. Remove the rear door trim panel. Refer to Trim Panel Replacement - Side Rear Door .
  3. Remove the rear door water deflector. Refer to Water Deflector Replacement - Rear Door .
    4. Fig 1: View Of Rear Door Window
    GM276426Courtesy of GENERAL MOTORS CORP.
  4. Disengage the glass sash regulator (2) from the rear side door window (1).
  5. Remove the door window frame applique. Refer to Door Frame Applique Replacement - Rear .

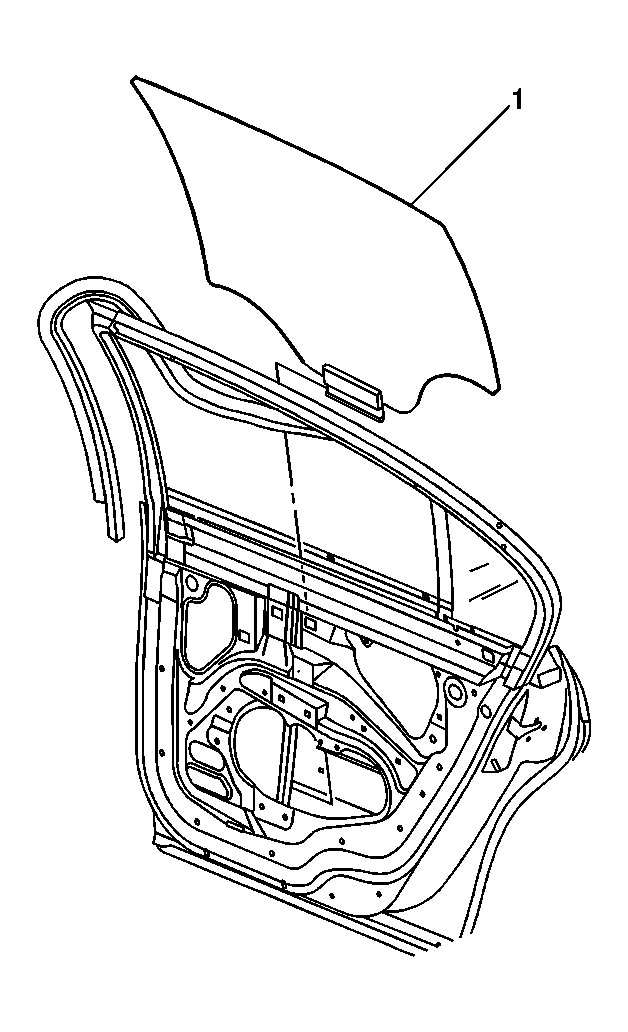

    6. Fig 2: View Of Rear Door Window
    GM276425Courtesy of GENERAL MOTORS CORP.
  6. Remove the rear side door window (1).
