ABS Schematics

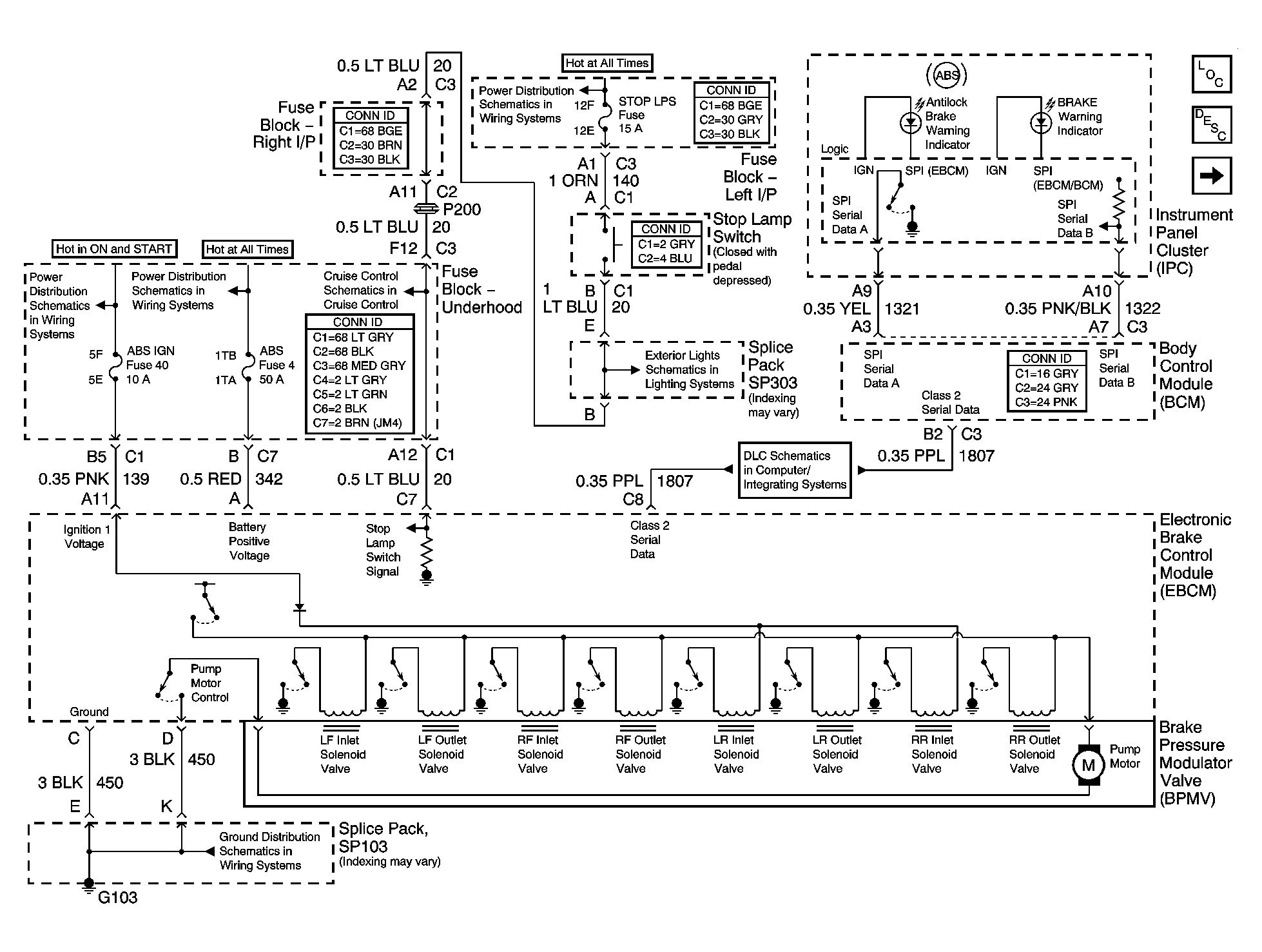

Fig 1: EBCM, PWR, GND & BPMV Schematic
GM1504250Courtesy of GENERAL MOTORS CORP.

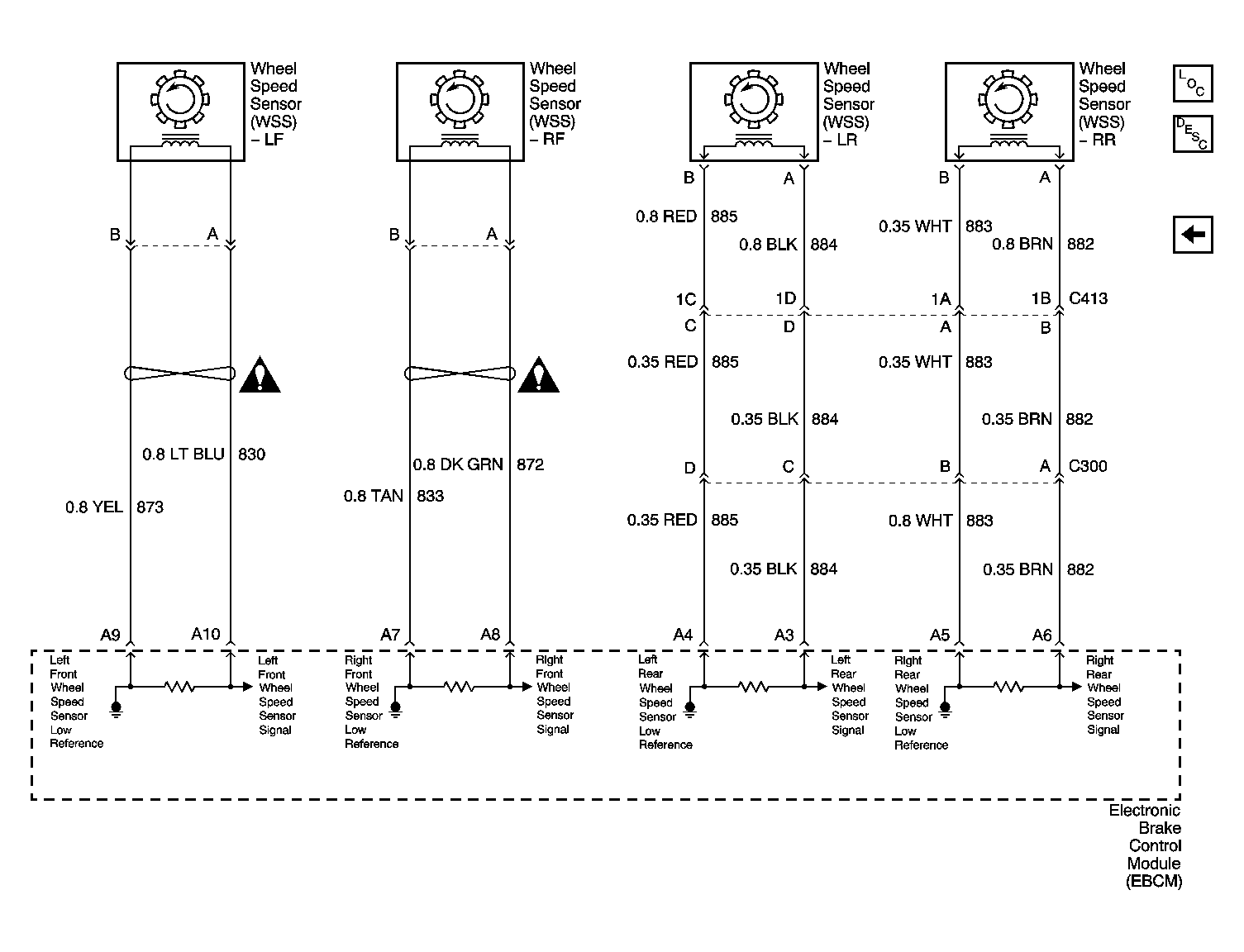

Fig 2: Wheel Speed Sensor Schematic
GM783330Courtesy of GENERAL MOTORS CORP.
