Electrical Center Identification Views

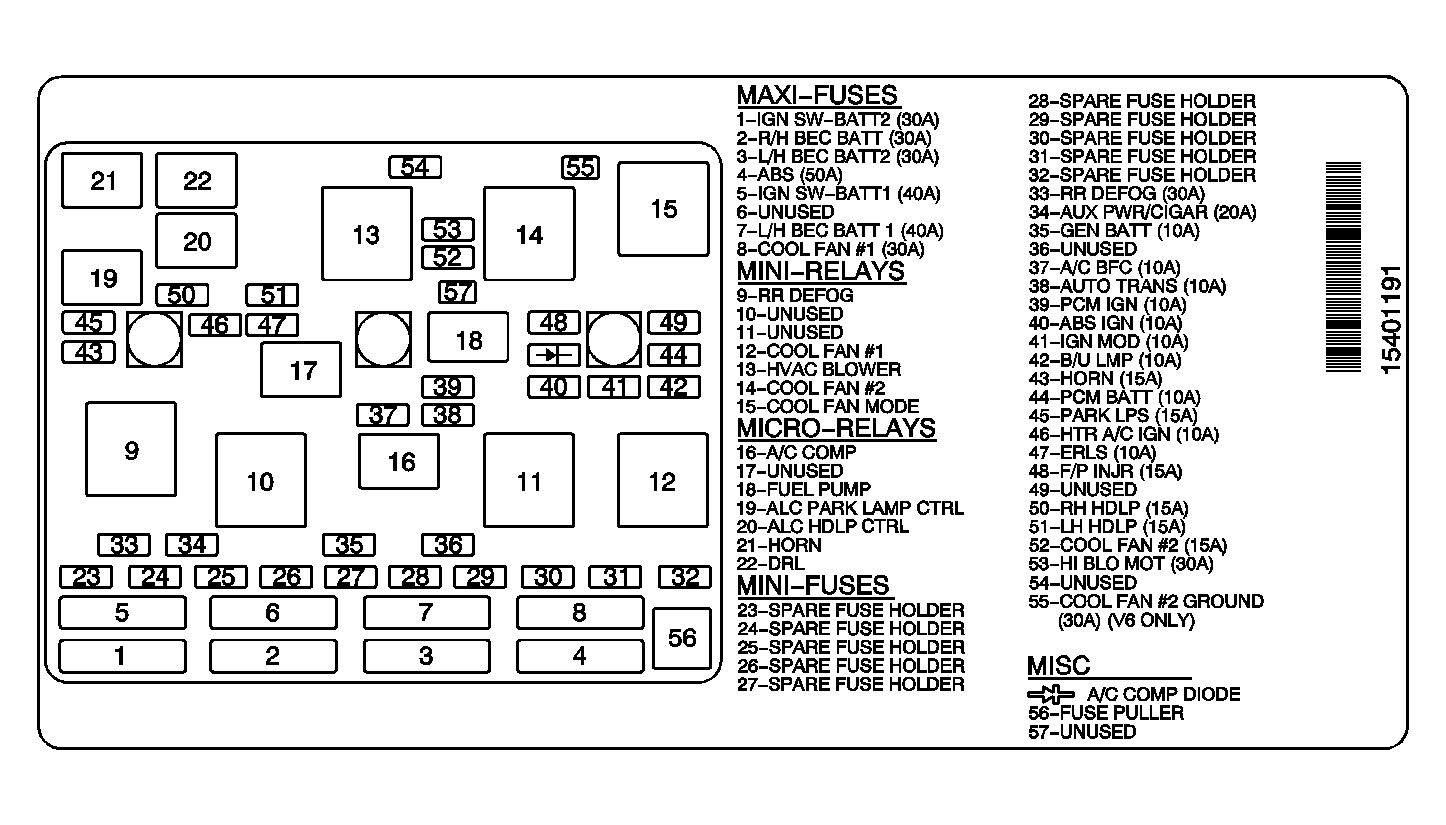

Fig 1: Underhood Fuse Block Label

Courtesy of GENERAL MOTORS CORP.

Fuse Block - Underhood Usage

No.	Device	Rating	Description
1	IGN SW - BATT2 Fuse	30A	Ignition Switch
2	R/H BEC BATT Fuse	30A	RH I/P Junction Block
3	L/H BEC BATT2 Fuse	30A	LH I/P Junction Block
4	ABS Fuse	50A	Electronic Brake Control (ABS) Relay
5	IGN SW - BATT1 Fuse	40A	Ignition Switch
6	-	-	Not Used
7	L/H BEC BATT1 Fuse	40A	LH I/P Junction Block
8	COOL FAN #1 Fuse	30A	Fan Control Relay #1
9	RR Defog Mini Relay	-	Rear Defogger
10-11	-	-	Not Used
12	Cool fan #1 Relay	-	Cooling Fan - Left
13	HVAC Blower Relay	-	Blower Motor
14	Cool Fan #2 Relay	-	Cooling Fan - Right
15	Cool Fan Mode Relay	-	Switches from Only the Left Cooling Fan to Both Cooling Fans
16	A/C Compressor Relay	-	A/C Compressor Clutch
17	-	-	Not Used
18	Fuel Pump Relay	-	Controlled from the PCM, Controls the Fuel pump
19	ALC Park Lamp Control Relay	-	Marker Lamps
20	ALC Headlamp Control Relay	-	Marker Lamps with Headlamps On
21	Horn Relay	-	Horn
22	DRL Relay	-	Daytime Running Lamps
23 - 32	-	-	Spare
33	RR DEFOG	30A	Rear Defogger
34	AUX PWR/CIGAR	20A	Auxiliary Power Outlet and Cigar Lighter (Chevrolet)
35	GEN BATT	10A	Generator
36	-	-	Not Used
37	A/C BFC	10A	A/C Compressor Clutch and Body Control Module (BCM)
38	AUTO TRANS	10A	Automatic Transaxle
39	PCM IGN	10A	Powertrain Control Module (PCM)
40	ABS IGN	10A	Electronic Brake Control Module (EBCM)
41	IGN MOD	10A	Ignition Control (IC) Module
42	B/U LMP	10A	Park/Neutral Position Switch
43	HORN	15A	Horn
44	PCM BATT	10A	Powertrain Control Module (PCM)
45	PARK LPS	15A	Park Lamps
46	HTR A/C IGN	10A	Daytime Running Lamps (DRL), Rear Defogger, Heater A/C Control Assembly, and Air Temperature Actuator
47	ERLS	10A	EVAP, EGR, PCM, HO2S 1, and HO2S 2
48	F/P INJR	15A	Fuel Pump and Fuel Injectors
49	-	-	Not Used
50	RH HDLP	15A	Headlamps Right Side
51	LH HDLP	15A	Headlamps, Left Side
52	COOL FAN #2	15A	Fan Control Relay #2
53	HI BLO MOT	30A	Blower Motor
54	-	-	Not Used
55	COOL FAN #2 Ground (V-6 ONLY)	30A	Cooling Fans (V-6 Only)
Misc	A/C Comp Diode	-	A/C Compressor

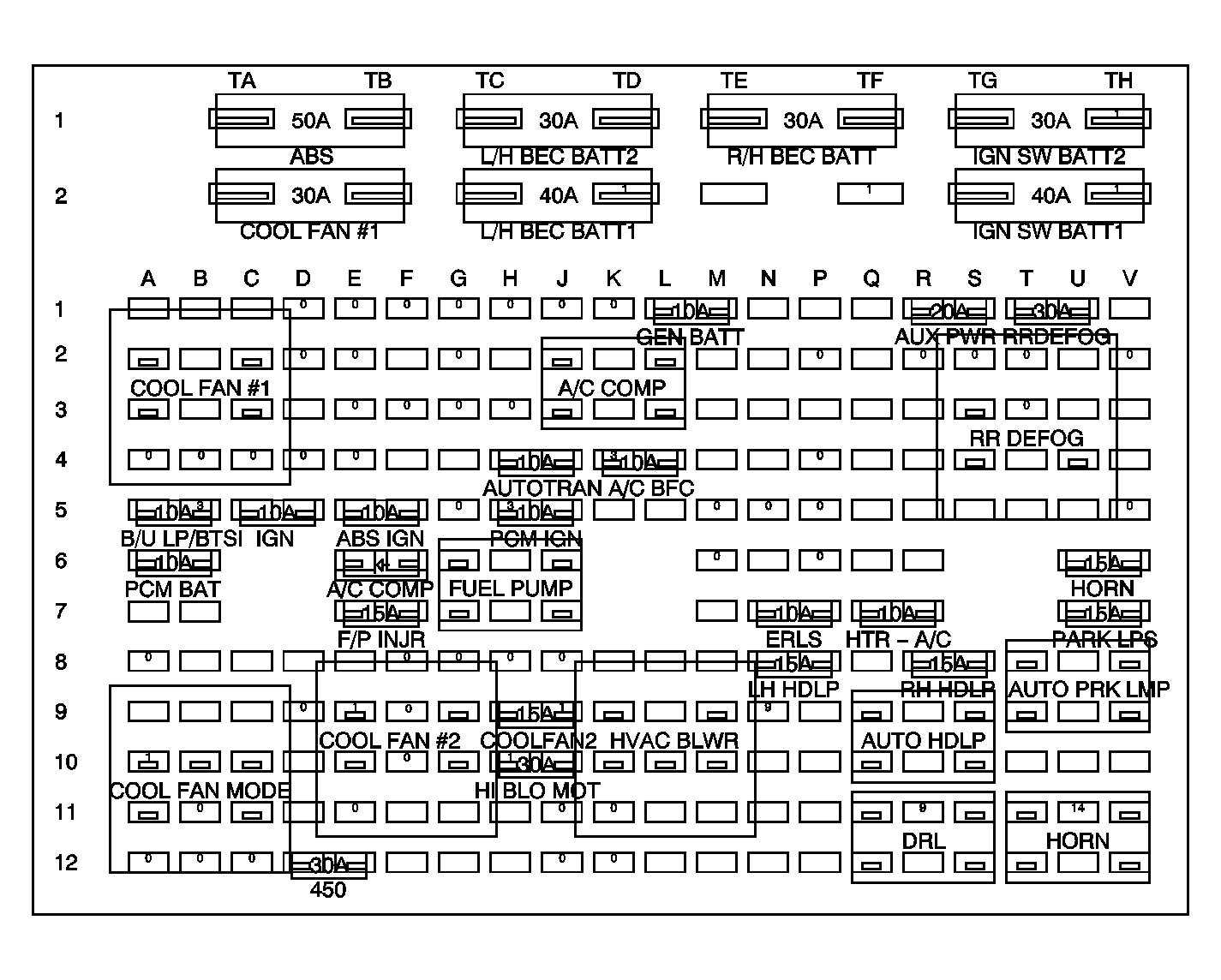

Fig 2: Underhood Fuse Block - Top View

Courtesy of GENERAL MOTORS CORP.

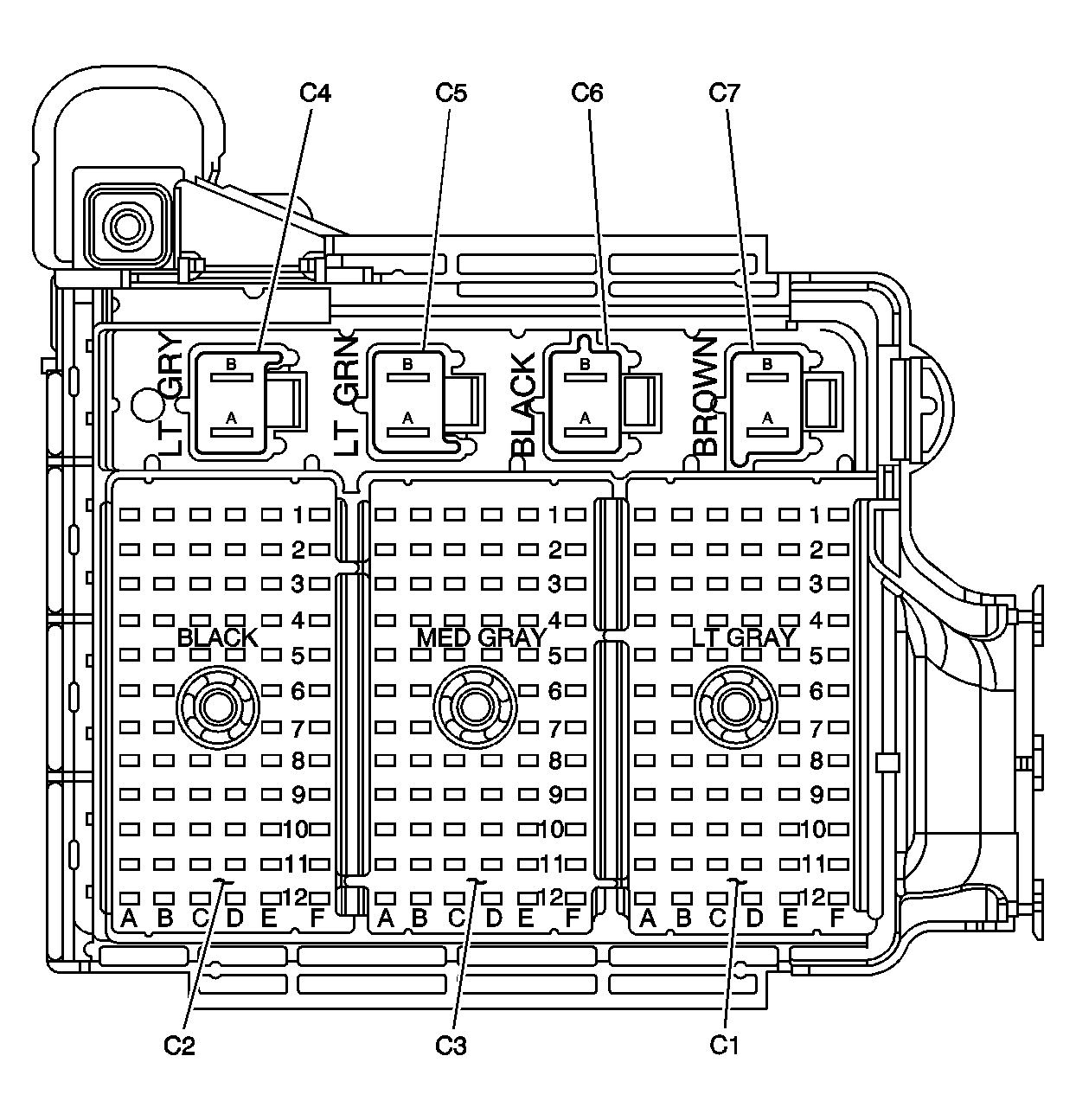

Fig 3: Underhood Fuse Block - Bottom View

Courtesy of GENERAL MOTORS CORP.

Fuse Block - Underhood, C1

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		15303512 68-Way F Metri-Pack 280 Series (WHT)
Pin	Wire Color	Circuit No.	Function
A1	-	-	Not Used
A2	DK GRN/WHT	459	A/C Clutch Relay Control
A3	-	-	Not Used
A4	PNK	1039	Ignition 1 Voltage
	PNK	1039	Ignition 1 Voltage
A5	-	-	Not Used
A6	GRY	729	A/C Compressor Clutch Solenoid Control
A7	PNK	839	Ignition 1 Voltage
A8-A10	-	-	Not Used
A11	YEL	5	Crank Voltage
A12	LT BLU	20	Stop Lamp Supply Voltage (JM4)
B1-B4	-	-	Not Used
B5	PNK	139	Ignition 1 Voltage (JM4)
B6	DK GRN	59	A/C Compressor Clutch Supply Voltage
B7	-	-	Not Used
B8	BLK	450	Ground
B9-B12	-	-	Not Used
C1-C2	-	-	Not Used
C3	DK GRN	83	Cruise Control Inhibit Signal
C4-C5	-	-	Not Used
C8	PNK	639	Ignition 1 Voltage
C9	-	-	Not Used
C10	GRY	532	Coolant Fan Motor Supply Voltage
C11	LT BLU/BLK	396	Cruise Control Engaged Signal
C12	-	-	Not Used
D1-D2	-	-	Not Used
D3	DK GRN	335	Low Speed Cooling Fan Relay Control
D4	-	-	Not Used
D5	PNK	239	Ignition 1 Voltage
D8-D9	-	-	Not Used
D10	BLK	450	Ground
D11	DK BLU	473	High Speed Cooling Fan Relay Control
D12	-	-	Not Used
E1-E2	-	-	Not Used
E3	PPL	420	TCC Brake Switch Signal
E4-E5	-	-	Not Used
E6	ORN	480	Powertrain Control Module Positive Voltage
E7	-	-	Not Used
E8	DK GRN/WHT	465	Fuel Pump Relay Control - Primary
E9	BRN	241	Ignition 3 Voltage
E10-E12	-	-	Not Used
F1-F2	-	-	Not Used
F3	LT BLU	409	Cooling Fan Motor Supply Voltage
F4	-	-	Not Used
F5	PNK	539	Ignition 1 Voltage
F6-F8	-	-	Not Used
F9	BRN	241	Ignition 3 Voltage
F10	-	-	Not Used
F11	WHT	504	Cooling Fan Motor Ground
F12	-	-	Not Used

Fuse Block - Underhood, C2

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		15303513 68-Way F Metri-Pack 280 Series (BLK)
Pin	Wire Color	Circuit No.	Function
A1	BRN	341	Ignition 3 Voltage
A2-A3	-	-	Not Used
A4	ORN	740	Battery Positive Voltage
A5-A9	-	-	Not Used
A10	DK BLU	15	Right Front Turn Signal Lamp Positive Voltage
A11-A12	-	-	Not Used
B1-B4	-	-	Not Used
B5	BRN	9	Park Lamp Supply Voltage
B6-B9	-	-	Not Used
B10	DK BLU	15	Right Front Turn Signal Lamp Positive Voltage
B11	LT BLU	14	Left Front Turn Signal Lamp Positive Voltage
B12	LT BLU	20	Stop Lamp Supply Voltage
C1-C3	-	-	Not Used
C4	ORN	740	Battery Positive Voltage
C5	BRN	9	Park Lamp Supply Voltage
C8-C9	-	-	Not Used
C10	LT BLU	14	Left Front Turn Signal Lamp Positive Voltage
C11	-	-	Not Used
C12	DK GRN	29	Horn Control
D1-D4	-	-	Not Used
D5	BRN	9	Park Lamp Supply Voltage
D8-D10	-	-	Not Used
D11	GRY	589	DRL Resistor Supply Voltage
D12	-	-	Not Used
E1-E3	-	-	Not Used
E4	DK GRN	83	Cruise Control Inhibit Signal
E5	BRN	9	Park Lamp Supply Voltage
E6	PNK	1200	Headlamp Output (High Beam)
E7	-	-	Not Used
E8	ORN	640	Battery Positive Voltage
E9	LT BLU/BLK	396	Cruise Control Engaged Signal
E10-E11	-	-	Not Used
E12	DK BLU	1201	Headlamp Output (Low Beam)
F1-F3	-	-	Not Used
F4	PPL	420	TCC Brake Switch Signal
F5	-	-	Not Used
F6	PNK	1200	Headlamp Output (High Beam)
F7	-	-	Not Used
F8	ORN	640	Battery Positive Voltage
F9-F11	-	-	Not Used
F12	DK BLU	1201	Headlamp Output (Low Beam)

Fuse Block - Underhood, C3

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		15328717 68-Way F Metri-Pack 280 Series (GRY)
Pin	Wire Color	Circuit No.	Function
A1	ORN	40	Battery Positive Voltage
	ORN	40	Battery Positive Voltage
A2-A3	-	-	Not Used
A4	PPL	420	TCC Brake Switch Signal
A5	-	-	Not Used
A6	ORN	300	Ignition 3 Voltage
A7	BRN	241	Ignition 3 Voltage
A8-A9	-	-	Not Used
A10	BLK	150	Ground
A11	BRN	41	Ignition 3 Voltage
	BRN	41	Ignition 3 Voltage
A12	DK BLU	1201	Headlamp Output (Low Beam)
B1	-	-	Not Used
B2	WHT	193	Rear Defogger Relay Control
B3	DK GRN	306	Headlamp Switch Headlamps Off Signal
B4-B6	-	-	Not Used
B7	PNK	1200	Headlamp Output (High Beam)
B8	WHT	1080	Park Lamp Relay Control
B9	PPL	65	Blower Motor Supply Voltage
B10-B11	-	-	Not Used
B12	LT GRN/BLK	592	DRL Relay Control
C1-C3	-	-	Not Used
C4	PNK	439	Ignition 1 Voltage
C5	PPL	293	Rear Defogger Element Supply Voltage
C8	DK BLU	15	Right Front Turn Signal Lamp Positive Voltage
C9	LT BLU	14	Left Front Turn Signal Lamp Positive Voltage
C10	DK BLU	101	Blower Motor Supply Voltage
C11	PNK/WHT	1970	Headlamps Low Beam Relay Control
C12	BLK	28	Horn Relay Control
	BLK	28	Horn Relay Control
D1	-	-	Not Used
D2	BRN	341	Ignition 3 Voltage
D3-D4	-	-	Not Used
D5	PNK	3	Ignition 1 Voltage
D8	ORN	240	Battery Positive Voltage
D9	ORN	52	High Blower Motor Control
D10-D12	-	-	Not Used
E1-E5	-	-	Not Used
E6	GRY	120	Fuel Pump Supply Voltage
E7-E12	-	-	Not Used
F1	RED	842	Battery Positive Voltage
F2-F6	-	-	Not Used
F7	BRN	9	Park Lamp Supply Voltage
F8-F10	-	-	Not Used
F11	YEL	5	Crank Voltage
F12	LT BLU	20	Stop Lamp Supply Voltage

Junction Block Underhood, C4

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		12146038 2-Way F Metri-Pack 800 Series (GRY)
Pin	Wire Color	Circuit No.	Function
A	RED	442	Battery Positive Voltage
B	RED/BLK	242	Battery Positive Voltage

Junction Block Underhood, C5

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		12160605 2-Way F Metri-Pack 800 Series (GRN)
Pin	Wire Color	Circuit No.	Function
A	-	-	Not Used
B	RED	1042	Battery Positive Voltage

Junction Block Underhood, C6

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		12146037 2-Way F Metri-Pack 800 Series (BLK)
Pin	Wire Color	Circuit No.	Function
A	RED	642	Battery Positive Voltage
B	RED	642	Battery Positive Voltage

Junction Block Underhood, C7 (JM4)

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		12160606 2-Way F Metri-Pack 800 Series (BRN)
Pin	Wire Color	Circuit No.	Function
A	-	-	Not Used
B	RED	342	Battery Positive Voltage

Fig 4: Left I/P Fuse Block Label

Courtesy of GENERAL MOTORS CORP.

Electrical Center Identification Views

No.	Device	Rating	Description
A	WIPER Fuse	25A	Wiper Motor
B	TRUNK REL/RFA Fuse	10A	Rear Compartment Lid Release and Remote Control Door Lock Receiver (RFA)
C	Turn LPS Fuse	10A	Hazard Switch and Turn Signal Lamps
D	PWR MIRROR Fuse	10A	Power Mirrors
E	AIR BAG Fuse	10A	Sensing Diagnostic Module (SDM)
F	BFC BATT Fuse	10A	Body Control Module (BCM)
G	PCM ACC Fuse	10A	Powertrain Control Module (PCM)
H	Door Lock Fuse	10A	Radio
J	IPC/BFC ACC Fuse	10A	Instrument Cluster and Body Control Module (BCM)
-	STOP LPS Fuse	15A	Stop Lamps
-	IPS/HVAC Fuse	10A	Turn Lamps
-	HAZARD LPS Fuse	10A	Hazard Lamps
-	Trunk Release Relay	-	Rear Compartment Lid Release
-	DR Unlock Relay	-	All Doors Unlock
-	DR Lock Relay	-	All Doors Lock
-	Drivers Door Unlock Relay	-	Drivers Door Unlock
-	PWR Seats Circuit Breaker	25A	Power Seats

Fig 5: Left I/P Fuse Block - Top View

Courtesy of GENERAL MOTORS CORP.

Fig 6: Left I/P Fuse Block C1 & C2 - Bottom View

Courtesy of GENERAL MOTORS CORP.

Fig 7: Left I/P Fuse Block C3 - Bottom View

Courtesy of GENERAL MOTORS CORP.

Fuse Block - Left I/P, C1

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		12193962 68-Way F Metri-Pack 280 Series (BGE)
Pin	Wire Color	Circuit No.	Function
A1	-	-	Not Used
A2	BRN	4	Accessory Voltage
A3	PPL	1807	Class 2 Serial Data (Primary)
A4	PNK	3	Ignition 1 Voltage
A5-A6	-	-	Not Used
A7	DK GRN	500	Ignition 0 Voltage
A8-A11	-	-	Not Used
A12	ORN	1440	Battery Positive Voltage
	ORN	1440	Battery Positive Voltage
B1	-	-	Not Used
B2	YEL	143	Accessory Voltage
B3	-	-	Not Used
B4	PNK	739	Ignition 1 Voltage
B5	-	-	Not Used
B6	YEL	1139	Ignition 1 Voltage
B7	PPL	1500	Ignition 0 Voltage
B8-B10	-	-	Not Used
B11	ORN	1440	Battery Positive Voltage
B12	-	-	Not Used
C1	-	-	Not Used
C2	YEL	143	Accessory Voltage
C3	-	-	Not Used
C4	DK GRN/WHT	817	VSS Signal
C5	RED	442	Battery Positive Voltage
C8	-	-	Not Used
C9	PPL	1600	Ignition 0 Voltage
	PPL	1600	Ignition 0 Voltage
C10	YEL	356	Driver Door Lock Relay Unlock
C11	-	-	Not Used
C12	ORN	1140	Battery Positive Voltage
D1	-	-	Not Used
D2	PPL	1807	Class 2 Serial Data (Primary)
	PPL	1807	Class 2 Serial Data (Primary)
D3-D5	-	-	Not Used
D8-D12	-	-	Not Used
E1-E2	-	-	Not Used
E3	PPL	1807	Class 2 Serial Data (Primary)
	PPL	1807	Class 2 Serial Data (Primary)
E4	WHT	156	Courtesy Lamp Low Control
E5	-	-	Not Used
E6	DK GRN/WHT	817	VSS Signal
E7	ORN	1540	Battery Positive Voltage
E8	-	-	Not Used
E9	ORN	1732	Courtesy Lamps Supply Voltage
E10	BLK	150	Ground
E11	-	-	Not Used
E12	RED	642	Battery Positive Voltage
F1-F2	-	-	Not Used
F3	LT BLU	1344	Trunk Release Relay Control
F4-F5	-	-	Not Used
F6	DK GRN/WHT	817	VSS Signal
F7	-	-	Not Used
F8	WHT	194	Door Unlock Control
F9	-	-	Not Used
F10	LT BLU	195	Door Lock Control
F11-F12	-	-	Not Used

Fuse Block - Left I/P, C2

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		12176739 30-Way F Metri-Pack 280 Series (GRY)
Pin	Wire Color	Circuit No.	Function
A1-A12	-	-	Not Used
B1 - B5	-	-	Not Used
B8-B11	-	-	Not Used
B12	PPL	420	TCC Brake Switch Signal
C1	PPL	293	Rear Defogger Element Supply Voltage
C2	BRN	241	Ignition 3 Voltage
C3	-	-	Not Used
C4	DK GRN/WHT	1135	A/T Shift Lock Solenoid Supply Voltage
C5	GRY	118	Left Front Speaker Output (-)
C8	-	-	Not Used
C9	ORN	1732	Courtesy Lamp Supply Voltage
C10-C11	-	-	Not Used
C12	LT BLU	1134	Park Brake Switch Signal

Fuse Block - Left I/P, C3

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		12176740 30-Way F Metri-Pack 280 Series (BLK)
Pin	Wire Color	Circuit No.	Function
A1	ORN	140	Battery Positive Voltage
A2	GRY	295	Door Lock Motor Lock
	GRY	295	Door Lock Motor Lock
A3	-	-	Not Used
A4	TAN	294	Door Lock Motor Unlock
A5	-	-	Not Used
A8	ORN	540	Battery Positive Voltage
A9	BLK/WHT	56	Trunk Release Motor (Control or Supply Voltage)
A10	-	-	Not Used
A11	ORN	1040	Battery Positive Voltage
A12	-	-	Not Used
B1	PPL	420	TCC Brake Switch Signal
B2	GRY	295	Door Lock Motor Lock
	GRY	295	Door Lock Motor Lock
B3	-	-	Not Used
B4	TAN	294	Door Lock Motor Unlock
	TAN	294	Door Lock Motor Unlock
B5	-	-	Not Used
B8	TAN	201	Left Front Speaker Output (+)
B9	LT GRN/BLK	394	Driver Door Ajar Switch Signal
B10	ORN	1840	Battery Positive Voltage
B11	-	-	Not Used
B12	GRY	120	Fuel Pump Supply Voltage
C1	LT BLU	1134	Park Brake Switch Signal
C2	TAN	694	Not Used
C3	ORN	1732	Courtesy Lamps Supply Voltage
C4	ORN	1732	Courtesy Lamps Supply Voltage
	ORN	1732	Courtesy Lamps Supply Voltage
C5	-	-	Not Used
C8	GRY	118	Left front Speaker Output (+)
C9	DK GRN/WHT	1135	A/T Shift Lock Solenoid Supply Voltage
C10	WHT	156	Courtesy Lamp Low Control
C11	BRN	241	Ignition 3 Voltage
C12	BLK	293	Rear Defogger Element Supply Voltage

Fig 8: Right I/P Fuse Block Label

Courtesy of GENERAL MOTORS CORP.

Fuse Block - Right I/P Usage

No.	Device	Rating	Description
A	INT LPS	10A	Interior Lamps (Non-Dimming)
B	CRUISE SW	2A	Cruise Control Switch
C	HVAC BLOWER	20A	Heater A/C Control Assembly
D	CRUISE	10A	Cruise Control Module
E	FOG LPS	10A	Fog Lamps
F	INST LPS	10A	Interior Lamps (Dimming)
G	RDO BATT	10A	Radio (Clock)
H	SUNROOF	20A	Sunroof Assembly
-	PWR WINDOWS Circuit Breaker	25A	Power Windows
-	Fog LPS Relay	-	Fog Lamps

Fig 9: Right I/P Fuse Block - Top View

Courtesy of GENERAL MOTORS CORP.

Fig 10: Right I/P Fuse Block C1 & C2 - Bottom View

Courtesy of GENERAL MOTORS CORP.

Fig 11: Right I/P Fuse Block C3 - Bottom View

Courtesy of GENERAL MOTORS CORP.

Fuse Block - Right I/P, C1

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		12193962 68-Way F Metri-Pack 280 Series (TAN)
Pin	Wire Color	Circuit No.	Function
A1	ORN	1740	Battery Positive Voltage
A2	ORN	340	Battery Positive Voltage
A3-A4	-	-	Not Used
A5	BRN	641	Ignition 3 Voltage
A6-A12	-	-	Not Used
B1	-	-	Not Used
B2	RED	1042	Battery Positive Voltage
B3	-	-	Not Used
B4	BRN	341	Ignition 3 Voltage
B5	-	-	Not Used
B6	BRN	441	Ignition 3 Voltage
B7-B12	-	-	Not Used
C1-C3	-	-	Not Used
C4	BRN	341	Ignition 3 Voltage
C5	ORN	300	Ignition 3 Voltage
C8-C12	-	-	Not Used
D1-D12	-	-	Not Used
E1	-	-	Not Used
E2	LT BLU	14	Left Front Turn Signal Lamp Supply Voltage
	LT BLU	14	Left Front Turn Signal Lamp Supply Voltage
E3	PPL	34	Fog Lamps Supply Voltage (T96)
E4	PPL	34	Fog Lamps Supply Voltage (T96)
E5-E10	-	-	Not Used
E11	GRY	8	Instrument Panel Lamp Supply Voltage 1
	GRY	8	Instrument Panel Lamp Supply Voltage 1
E12	BRN/WHT	230	Instrument Panel Lamps Dimming Control
F1	-	-	Not Used
F2	DK BLU	15	Right Front Turn Signal Lamp Supply Voltage
	DK BLU	15	Right Front Turn Signal Lamp Supply Voltage
F3	DK GRN/WHT	1317	Fog Lamp Relay Control (T96)
F4	PPL	34	Fog Lamp Supply Voltage (T96)
F5-F12	-	-	Not Used

Fuse Block - Right I/P, C2

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		12176741 30-Way F Metri-Pack 280 Series (BRN)
Pin	Wire Color	Circuit No.	Function
A1	-	-	Not Used
A2	DK BLU	15	Right Front Turn Signal Lamp Positive Voltage
	DK BLU	15	Right Front Turn Signal Lamp Positive Voltage
A3	DK GRN	117	Right Front Speaker Output (-)
A4-A5	-	-	Not Used
A8	-	-	Not Used
A9	BRN	9	Park Lamp Supply Voltage
	BRN	9	Park Lamp Supply Voltage
A10	-	-	Not Used
A11	LT BLU	20	Stop Lamp Supply Voltage
A12	GRY	8	Instrument Panel Lamp Supply Voltage 1
	GRY	8	Instrument Panel Lamp Supply Voltage 1
B1	BLK/WHT	238	Driver Seat Belt Switch Signal
B2	LT BLU	14	Left Front Turn Signal Lamp Supply Voltage
	LT BLU	14	Left Front Turn Signal Lamp Supply Voltage
B3	DK BLU	46	Right Rear Speaker Output (+)
B4	YEL	116	Left Rear Speaker Output (-)
B5	WHT	682	Door Lock Lock/Unlock Signal
B8	LT BLU	395	Passenger Door Ajar Switch Signal
B9	BRN	9	Park Lamp Supply Voltage
B10	-	-	Not Used
B11	LT GRN	24	Backup Lamp Supply Voltage
B12	GRY	8	Instrument Panel Lamp Supply Voltage 1
C1	LT GRN	200	Right Front Speaker Output (+)
C2	-	-	Not Used
C3	LT BLU	115	Right Rear Speaker Output (-)
C4	BRN	199	Left Rear Speaker Output (+)
C5	-	-	Not Used
C8	-	-	Not Used
C9	BRN	9	Park Lamps Supply Voltage
C10	BRN	9	Park Lamps Supply Voltage
	BRN	9	Park Lamps Supply Voltage
C11	-	-	Not Used
C12	GRY	8	Instrument Panel Lamps Supply Voltage 1
	GRY	8	Instrument Panel Lamps Supply Voltage 1

Fuse Block - Right I/P, C3

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		12176740 30-Way F Metri-Pack 280 Series (BLK)
Pin	Wire Color	Circuit No.	Function
A1	GRY	8	Instrument Panel Lamp Supply Voltage
A2	LT BLU	20	Stop Lamp Supply Voltage
A3	-	-	Not Used
A4	BRN	9	Park Lamp Supply Voltage
A5	-	-	Not Used
A8	BRN	141	Ignition 3 Voltage
A9	BRN	341	Ignition 3 Voltage
A10	DK GRN	117	Right Front Speaker Output (-)
A11	DK BLU	15	Right Front Turn Signal Lamp Positive Voltage
A12	-	-	Not Used
B1	GRY	8	Instrument Panel Lamp Supply Voltage
	GRY	8	Instrument Panel Lamp Supply Voltage
B2	LT GRN	24	Backup Lamp Supply Voltage
B3	-	-	Not Used
B4	BRN	9	Park Lamp Supply Voltage
B5	LT BLU	395	Passenger Door Ajar Switch Signal
B8	WHT	682	Door Lock/Unlock Signal
	WHT	682	Door Lock/Unlock Signal
B9	YEL	116	Left Rear Speaker Output (-)
B10	DK BLU	46	Right Rear Speaker Output (-)
B11	LT BLU	14	Left Front Turn Signal Lamp Positive Voltage
B12	BLK/WHT	238	Driver Seat Belt Switch Signal
C1	GRY	8	Instrument Panel Lamp Supply Voltage 1
	GRY	8	Instrument Panel Lamp Supply Voltage 1(CF5)
C2	LT GRN	24	Backup Lamp Supply Voltage
C3	-	-	Not Used
C4	BRN	9	Park Lamp Supply Voltage
C5	LT BLU	395	Passenger Door Ajar Switch Signal
	LT BLU	395	Passenger Door Ajar Switch Signal
C8			Not Used
C9	BRN	199	Left Rear Speaker Output (+)
C10	LT BLU	115	Right Rear Speaker Output (-)
C11	-	-	Not Used
C12	LT GRN	200	Right Front Speaker Output (+)
