Installation Procedure

WARNING: This page is about a different car, the 2004 Pontiac Grand Am and 2004 Oldsmobile Alero. However, it is still accessible from the selected car via links, so may be relevant.

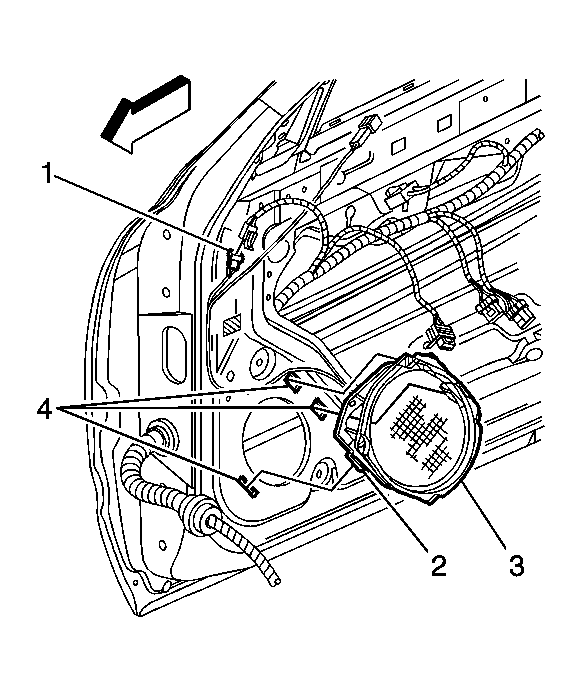

    Fig 1: View of Front Lower Speaker & Electrical Connector
    GM892621Courtesy of GENERAL MOTORS CORP.
  1. Install the upper locating tabs for the speaker base into the slots (4) on the inner door panel.

    Push the speaker assembly (3) upward to engage the locating tabs.

  2. Align the lower retaining tab (2) for the speaker base into the slot (4) on the inner door panel.

    Press the lower retaining tab (2) into the inner door panel until fully engaged.

  3. Connect the electrical connector (1).
  4. Install the speaker wire harness rosebud retainer to inner door panel.
  5. Install the door trim panel. Refer to Trim Panel Replacement - Side Front Door (Oldsmobile) or Trim Panel Replacement - Side Front Door (Pontiac) in Doors.
