HVAC Component Views

WARNING: This page is about a different car, the 2004 Pontiac Grand Am and 2004 Oldsmobile Alero. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Rear Of Radiator Component View

GM217559

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Cooling Fan-Left
2	Cooling Fan-Right
3	A/C Refrigerant Pressure Sensor

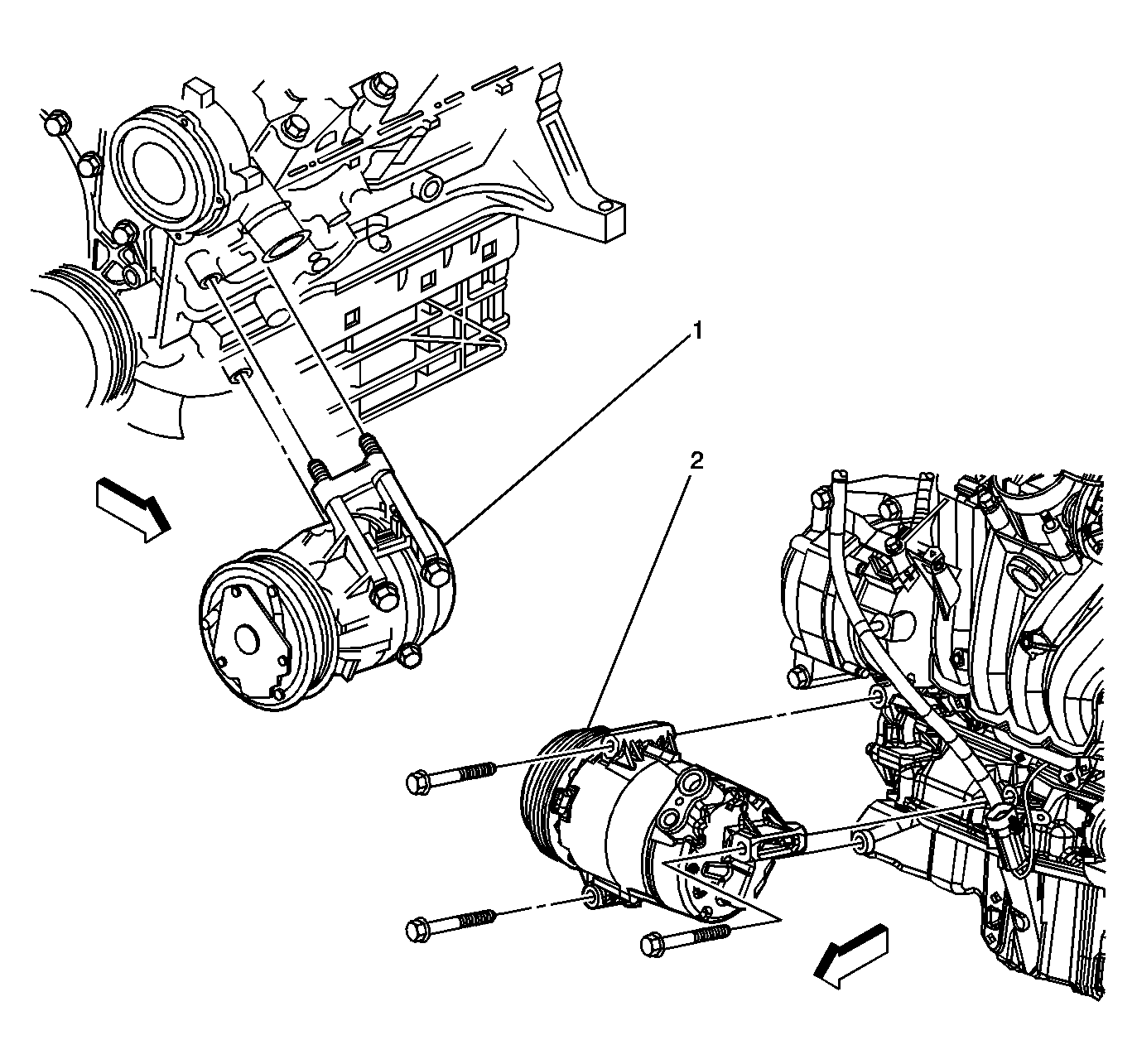

Fig 2: Front Of Engine Component View

GM818182

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	A/C Compressor Clutch (LA1)
2	A/C Compressor Clutch (L61)

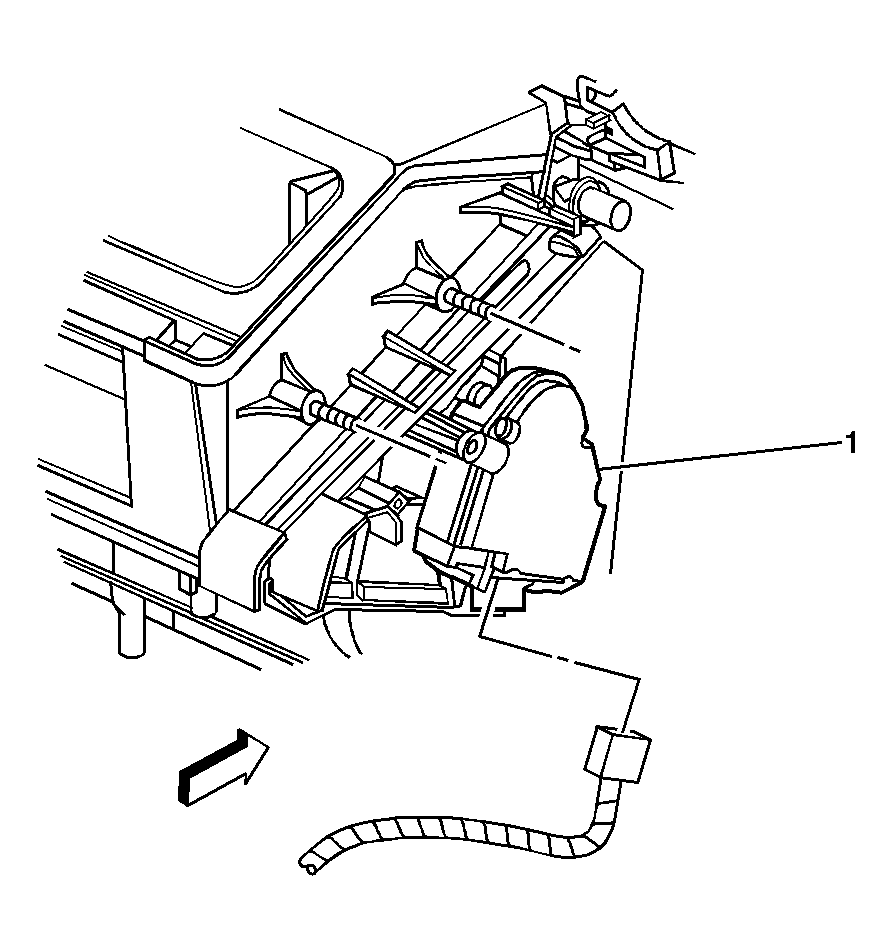

Fig 3: Right Side Of Evaporator Component View

GM818944

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Air Temperature Actuator

Fig 4: I/P Harness - RH Component View

GM728841

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Blower Motor Resistor Assembly Connector
2	Blower Motor
3	Fuse Block - Right I/P, C1 and C2
4	Inflatable Restraint I/P Module Connector
5	Splice Pack, SP203
6	G203
7	Body Control Module (BCM)
8	Blower Motor Resistor Assembly

Fig 5: Center Of I/P Component View

GM476438

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Radio
2	HVAC Control Assembly
