Door Replacement - Side Front

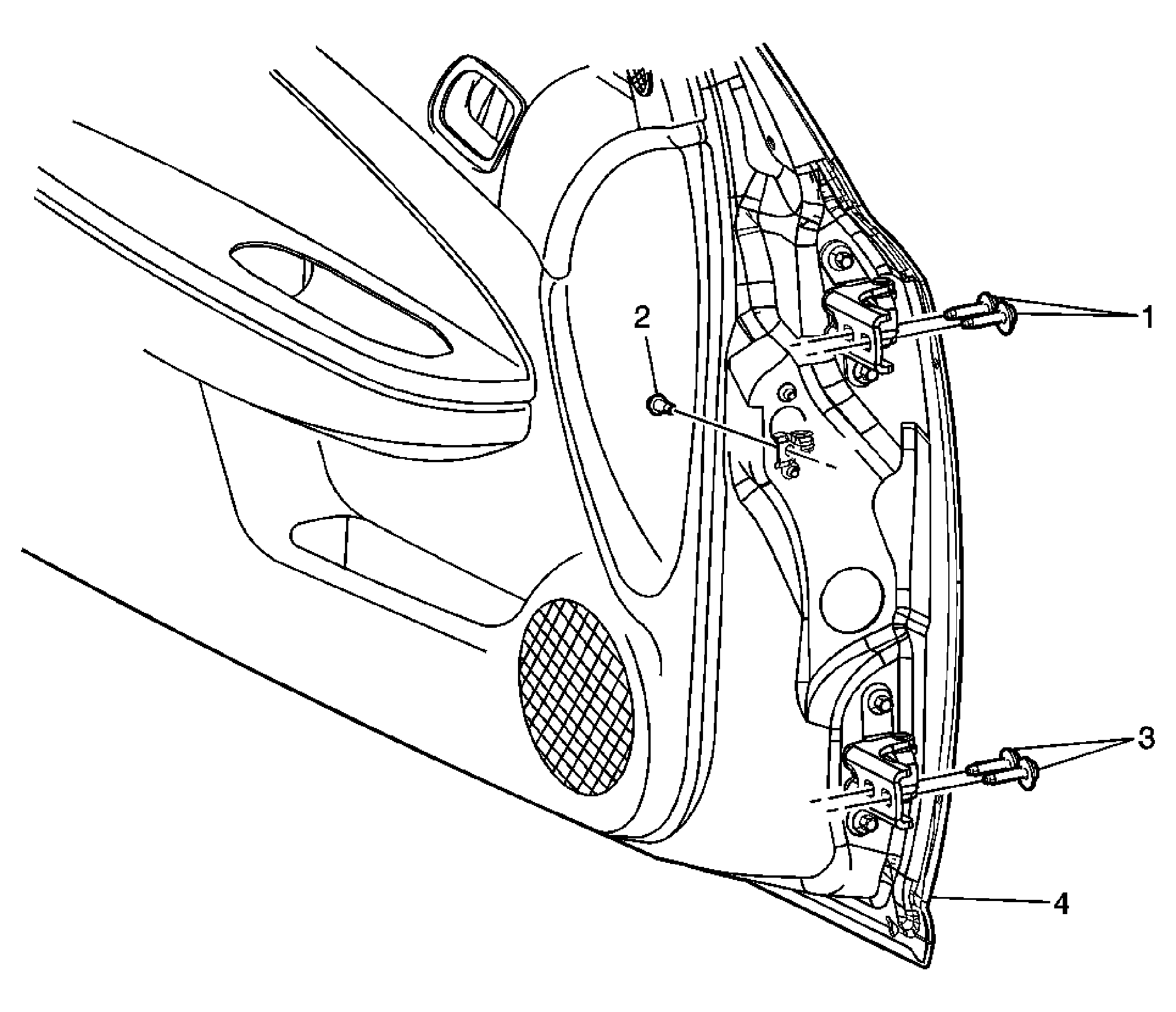

Fig 1: Door Replacement - Side Front

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice in Cautions and Notices. Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .
1	Bolt, Front Side Door Hinge (Qty: 2) Tip: Support the door before removing the door hinge bolts. Disconnect the door electrical connector. Tighten: 35 N.m (26 lb ft)
2	Bolt, Front Side Door Check Link Tighten: 20 N.m (15 lb ft)
3	Bolt, Front Side Door Hinge (Qty: 2) Tighten: 35 N.m (26 lb ft)
4	Door Assembly, Front Side Tip: When replacing the door it is necessary to transfer all of the internal components.
