Locking Rod Replacement - Front Door

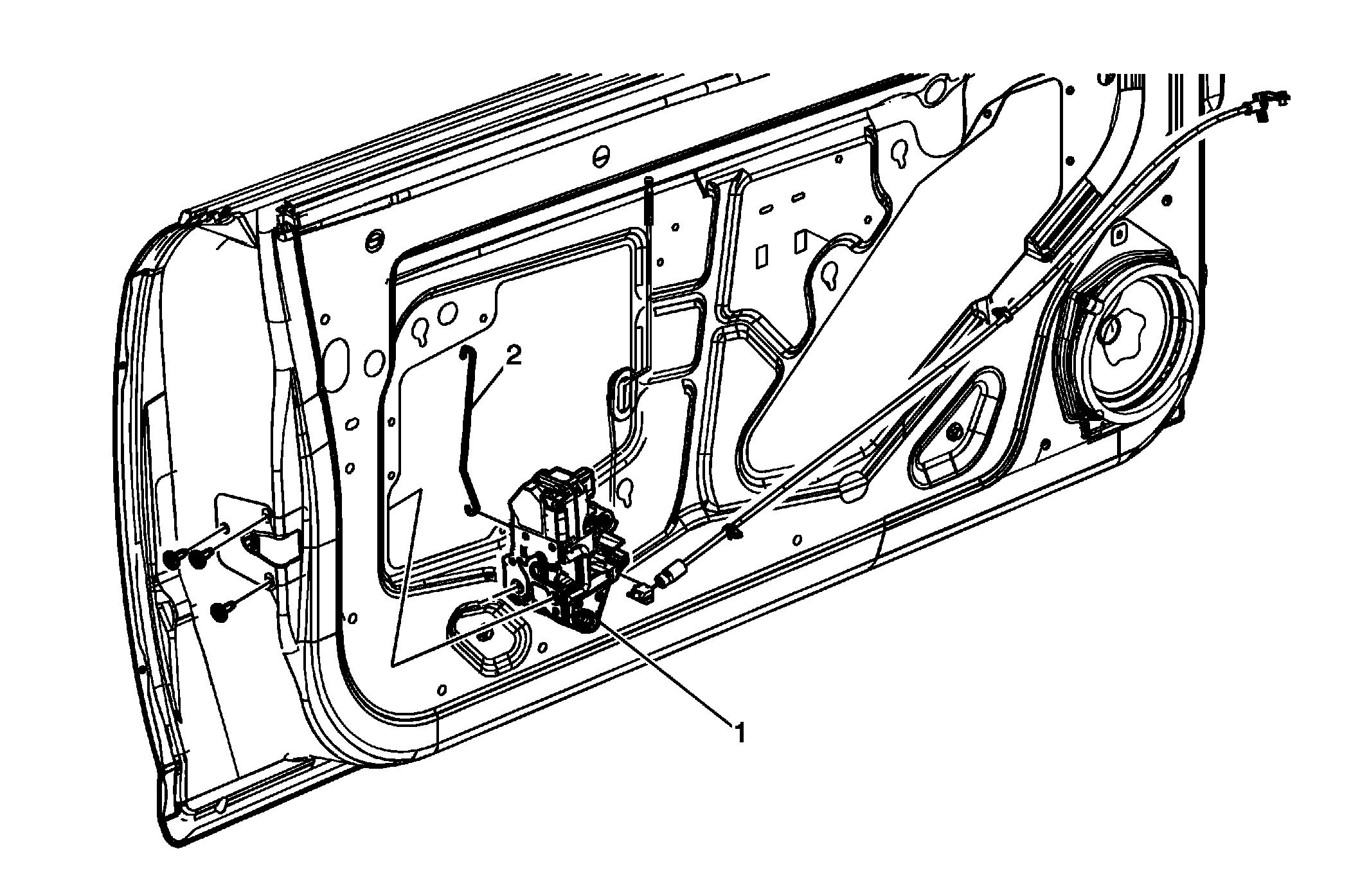

Fig 1: Locking Rod Replacement - Front Door

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedures Remove the interior trim panel. Refer to Trim Panel Replacement - Side Front Door . Remove the water deflector. Refer to Water Deflector Replacement - Front Door .
1	Lock Assembly, Front Side Door Refer to Lock Replacement - Front Door .
2	Rod, Front Side Door Lock

Callout

Component Name

Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .

Preliminary Procedures

Remove the interior trim panel. Refer to Trim Panel Replacement - Side Front Door .
Remove the water deflector. Refer to Water Deflector Replacement - Front Door .

Lock Assembly, Front Side Door
Refer to Lock Replacement - Front Door .

Rod, Front Side Door Lock
