Door System, Mirror System & Window System
›
Schematic and Routing Diagrams
›
Door Lock/Indicator Schematics
Door Lock/Indicator Schematics

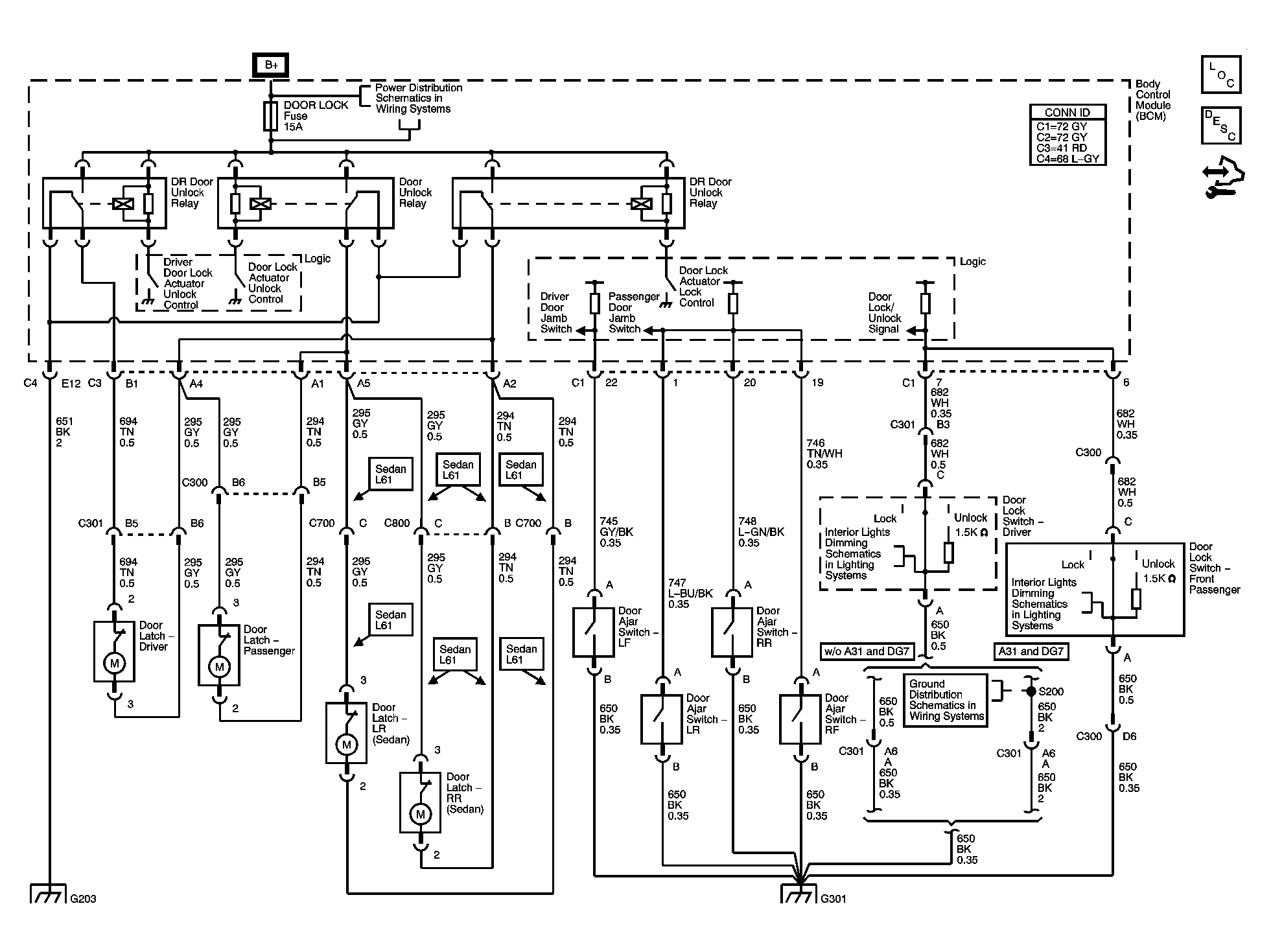

Fig 1: Door Lock/Indicator Schematic
Courtesy of GENERAL MOTORS CORP.
